Description

Freedom X 1000 True Sine Wave Power Inverter - 12VDC - 120VAC - 1000W

True sine wave 120 Vac inverter with built-in transfer switch. Designed for recreational and commercial applications.

The Freedom X inverter has a compact, lightweight design and delivers full output from -4°F to 104°F. Its extended surge rating helps start refrigerator and microwave loads. Quick connect AC IN/OUT terminals simplify installation.

Features:

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Built-in 30A AC Transfer Relay: Senses incoming AC power (shore or generator) and transfers connected loads from inverter power to that supply. Shore power passes through to the output when it is within its normal operating range. With the Power button turned on, the inverter supplies appliances when shore power fails or is disconnected.

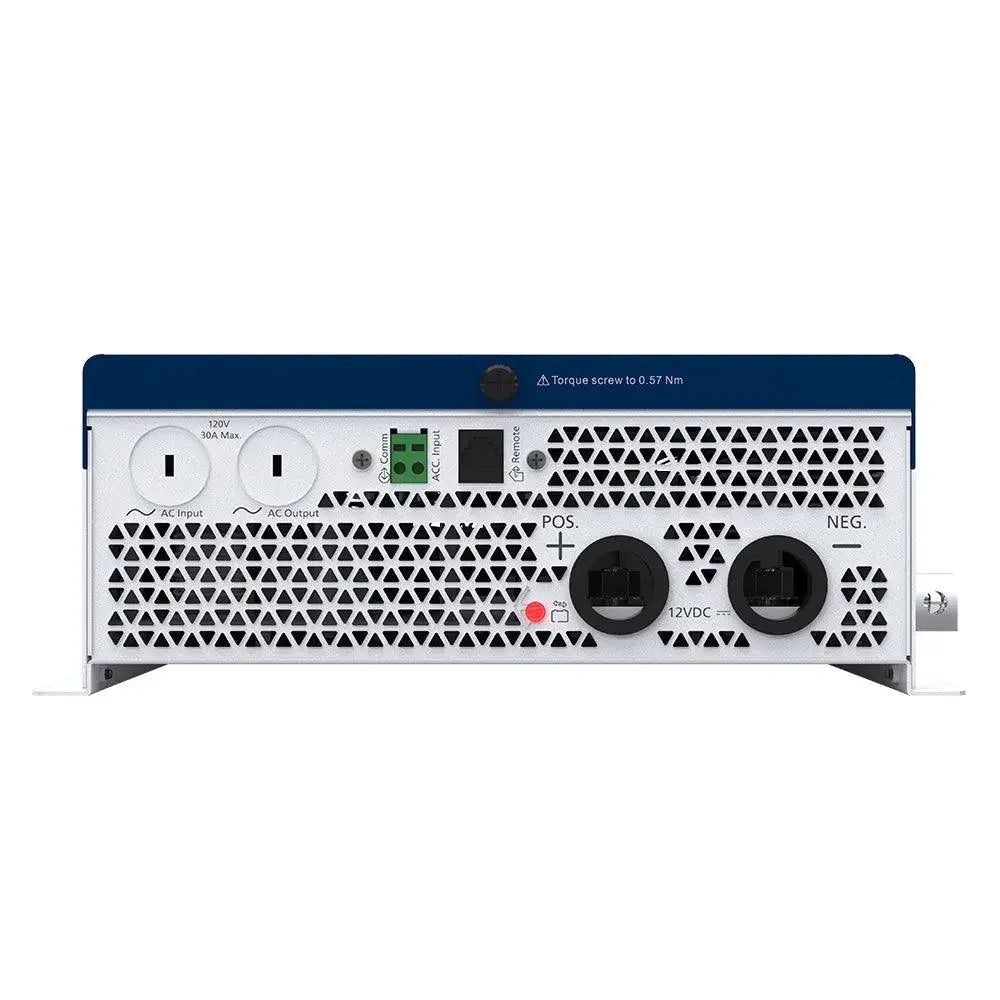

• Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Outlet Qty: Optional
• GFCI: Optional
• DC Connection Type: Hardwire
• AC Connection Type: Hardwire
• Waveform: True Sine Wave
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Inverter Surge Rating: 2000w
• Inverter Cont. Output Wattage: 1000w
• Box Dimensions: 8"H x 12"W x 19"L
• Manufacturer-listed net weight: 13.4 lbs
• UPC: 715535901424
