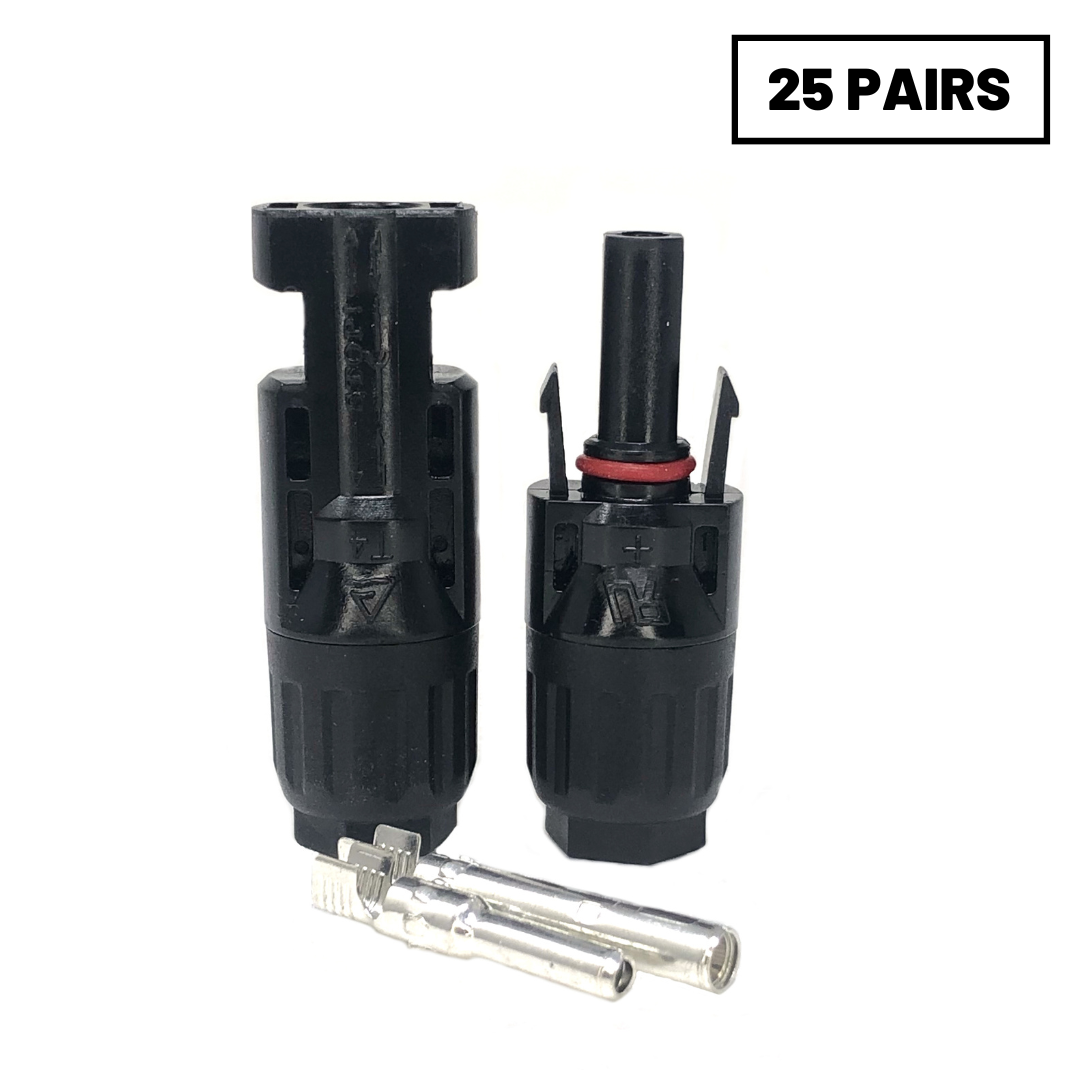

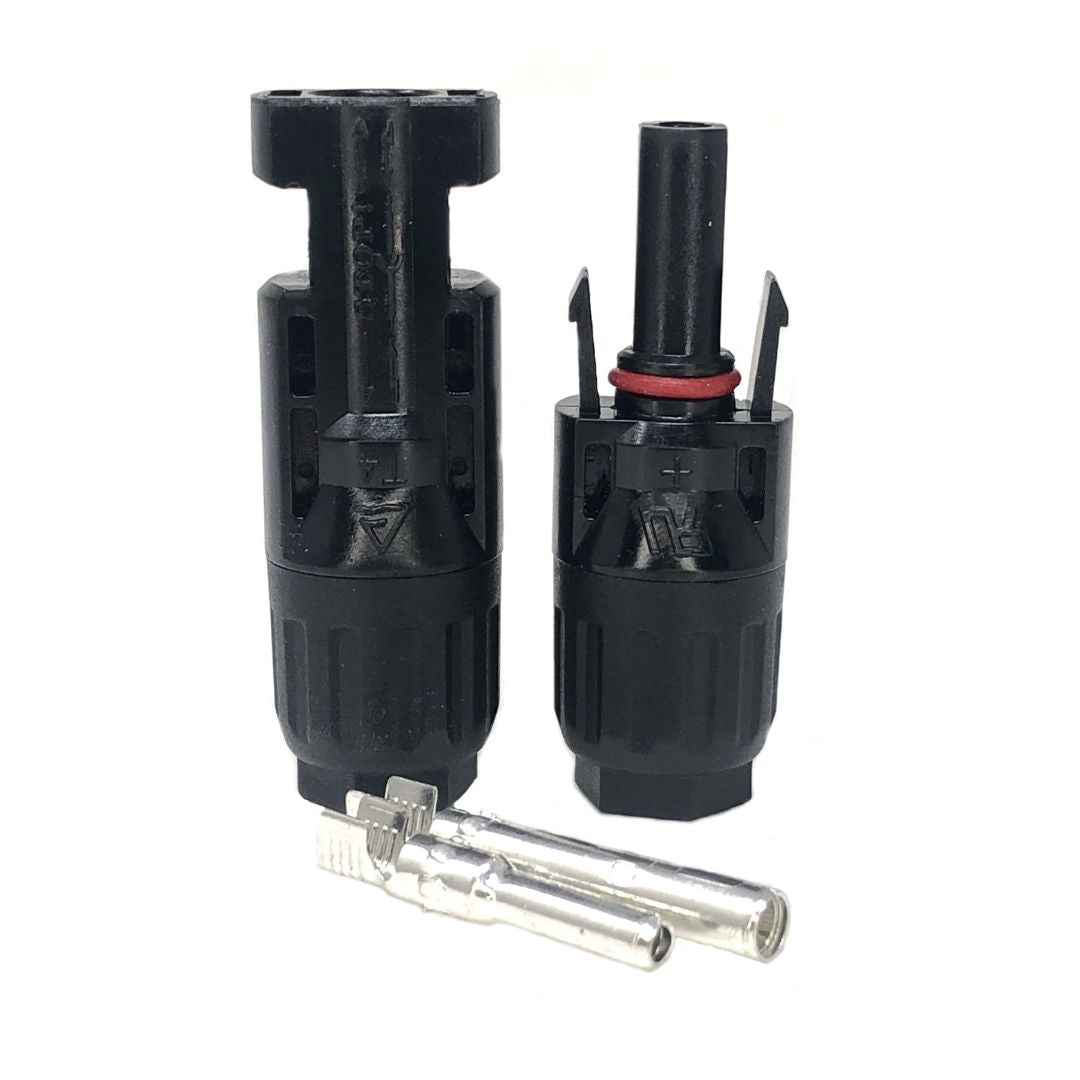

WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire
WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire
WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire
WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire
WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire
WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire
WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire
WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire
WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire
WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire
WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire
WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire
WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire

WindyNation PV Solar Connectors for Solar Panel Extension Cable Wire

Price: $7.99 USD
List Price:
Price: $7.99 USD
View Cart

Bulk Discount

Buy 3 or more items and receive 5% off this order! Discount will be automatically applied at checkout.

Commercial Pricing

Email us or call/text 814-470-8368 for your custom quote!

Free Shipping

Free and discreet shipping in the lower 48. Ships in 1 to 3 business days!

Interest-Free Financing

Checkout and pay with Affirm, PayPal Pay in 4, Sezzle or Shop Pay Installments.

Estimated Arrival: Between Jun 07 and Jun 18.

SAVE $10 on orders over $200 | Use Coupon Code: KEEP10

00 Days
00 Hours
00 Minutes
00 Seconds

Description
  • Solar Connectors are the industry standard for connecting photovoltaic panels for safe operation. The connectors are specially designed with a watertight seal (if installed with the correct cable) and coated with a UV resistant coating. the solar connectors feature a 'male' and 'female' end for straightforward installation.
    • Specifications
  • Rated Current: 30A
  • Maximum Voltage: 1000 VDC (600 VDC UL)
  • Protection Class: Class II
  • Contact Resistance: less than 0.5 milli ohms
  • Temperature Range: - 40?C to +90?C
  • Protection Degree: IP67 IP2X (unmated)
  • Wire Size Range: 10, 12, and 14 AWG (6 mm2, 4 mm2, and 2.5 mm2)
  • Insulation Material: PA/PC
  • Flame Class: UL94-VO, UL94-VA
  • Contact Material: Silver Plated Copper
  • Certifications: TUV
    • Data Sheets
  • Download the spec sheet: here
    • Kit Contents
  • 1 piece male solar connector and 1 piece female solar connector
  • Compatible with all solar connectors
  • Designed for outdoor use on solar panel systems
  • Waterproof and dustproof
