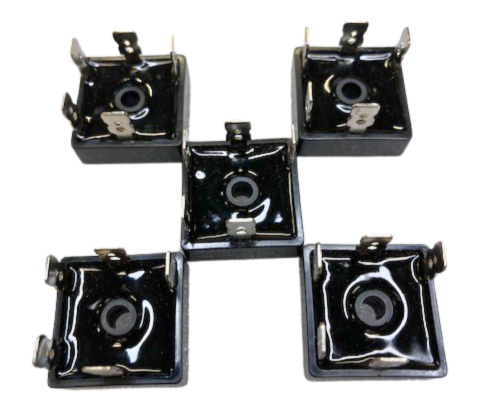

WindyNation 35-Amp 3-Phase Bridge Rectifier

Price: $46.99 USD
List Price: $67.20 USD
Price: $46.99 USD
You save: $20.21 (30%)
View Cart

Bulk Discount

Buy 3 or more items and receive 5% off this order! Discount will be automatically applied at checkout.

Commercial Pricing

Email us or call/text 415-877-4201 for your custom quote!

Shipping & Delivery

Shipping options and rates are calculated at checkout. Large, heavy, or freight items may ship separately or require confirmation before fulfillment.

Interest-Free Financing

Checkout and pay with Affirm, PayPal Pay in 4, Sezzle or Shop Pay Installments.

Estimated Arrival: Between Jul 30 and Aug 10.

SAVE $10 on orders over $200 | Use Coupon Code: KEEP10

00 Days
00 Hours
00 Minutes
00 Seconds

Description

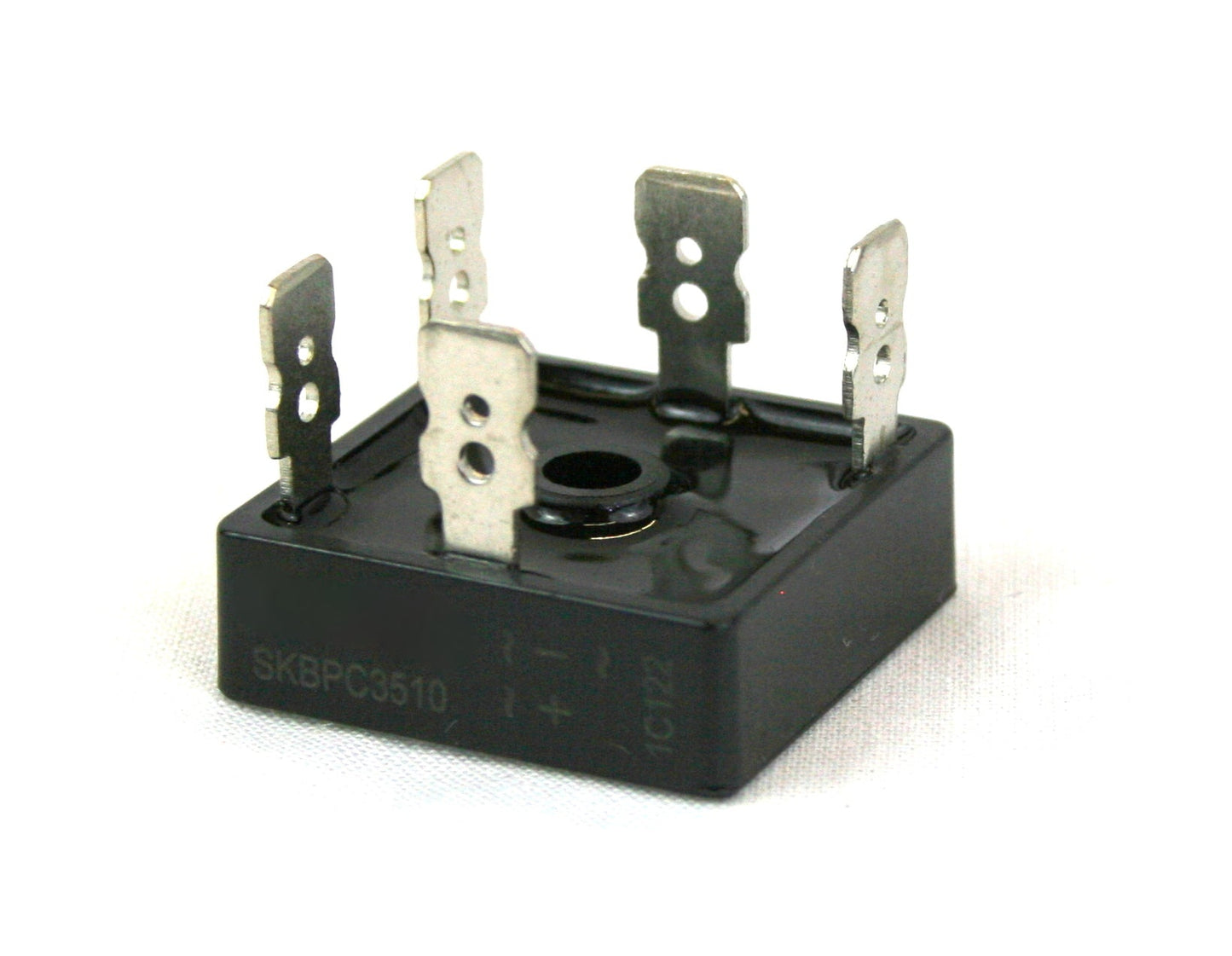

  • This is a 35-Amp 3-Phase bridge rectifier that converts three-phase AC voltage to DC voltage. This unit is perfect for smaller generators that put out 35 Amps or less. This includes 3-Phase AC motors which are often used to make wind generators!

  • Will work on all battery banks

  • The operating range is 0 to 1,000-Volts

  • Will work on AC generators that produce 35-Amps or less

  • Spade terminals for easily attaching the input and output wires

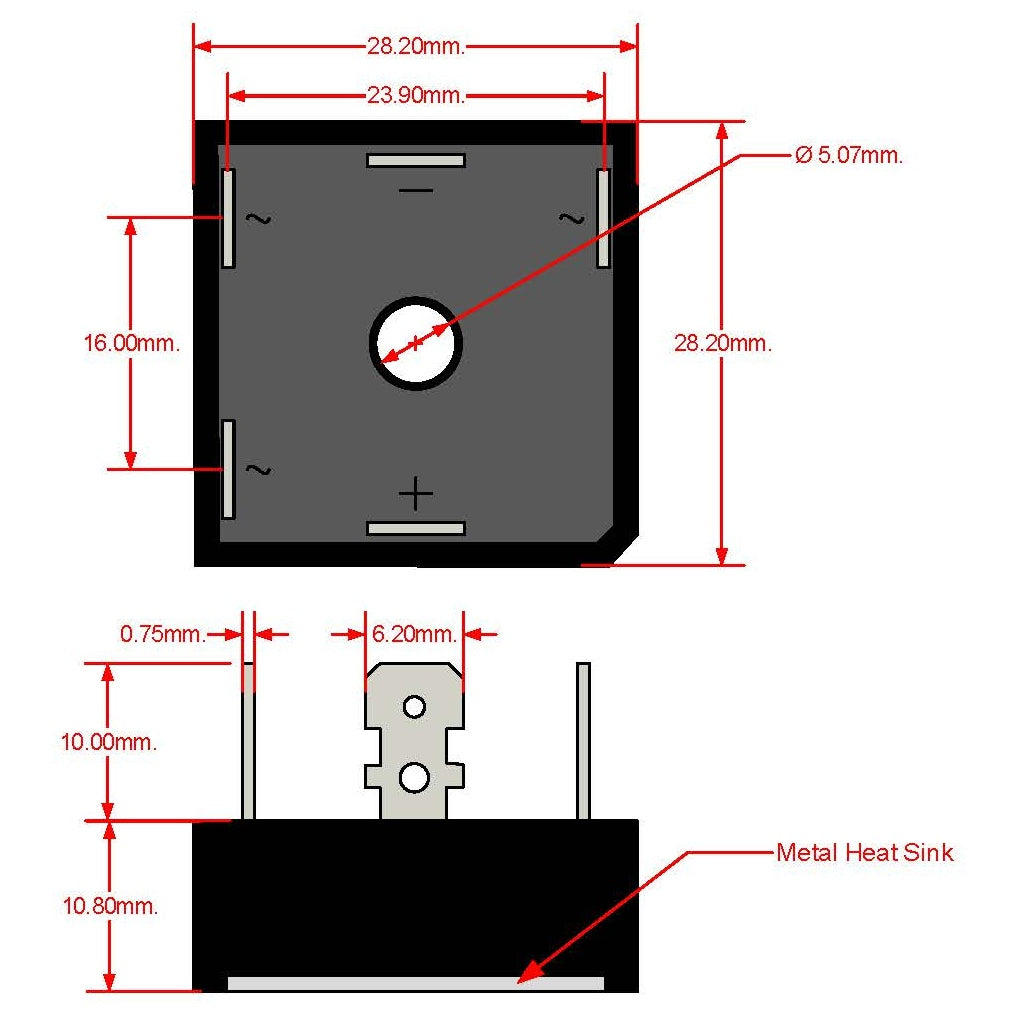

  • One center mounting hole for easily securing to your heatsink and electrical box
    • Specifications
  • Repetitive Peak Reverse Voltage (VRRM): 1000 Volts
  • Average Rectified Output Current (IO): 35 Amps
  • Surge Forward Current (IFSM): 400 Amps
  • Peak Forward Voltage (VFM): 1.2 Volts
  • Peak Reverse Current (IRRM): 10 uAmps
  • Storage Temperature: -40 to +150C
  • Junction Temperature (Tj): -40 to +150C
