Description

BMV-710H Smart High Voltage Battery Monitor (60-385VDC)

The BMV-710H Smart has Bluetooth built-in and can connect wirelessly to your phone (or tablet) via the VictronConnect App to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

This battery monitor can calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery.

For high-voltage applications, the 500 A/50 mV shunt is housed in a special enclosure.

Battery fuel gauge and time-to-go indicator

The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms take these variables into account.

In addition to voltage, current and ampere-hours consumed, the monitor displays the state of charge, time to go and power consumption in watts.

Bluetooth Smart

Use the built-in Bluetooth connection to monitor and configure the battery monitor with VictronConnect on Android smartphones and tablets, Apple iPhone and iPad, and macOS computers, including MacBooks. No Bluetooth Smart dongle is required. Windows connects through the optional VE.Direct to USB interface; Bluetooth is not supported on Windows.

Installation

The shunt connects to the monitor with the supplied standard RJ12 telephone cable. Battery and load connections are made at the enclosed shunt; the relay and VE.Direct connectors are on the head unit. In the standard wiring arrangement, connect the battery negative to the BATTERY side of the shunt and all load and charger negatives to the LOAD side. Connections that bypass the shunt are excluded from the current and state-of-charge measurements.

Programming

A quick installation menu and a detailed setup menu with scrolling text guide you through the settings. Alternatively, configure the monitor using the VictronConnect app and its built-in Bluetooth connection.

Features

• Battery voltage, current, power, ampere-hours consumed, and state of charge
• Remaining time at the current rate of discharge
• Programmable visual and audible alarm
• Programmable relay, to turn off non critical loads or run a generator when needed
• 500 A quick-connect shunt and connection kit, with a special high-voltage shunt enclosure
• Shunt selection capability up to 9999 A; larger shunts are sold separately
• VE.Direct communication port
• Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
• Input voltage range: 60-385 VDC
• High current measurement resolution: 10 mA (0.01A)
• Low current consumption: less than 1 mA with the backlight off

High-voltage installation

High DC voltages can cause serious injury, death or equipment damage. Use appropriate personal protective equipment, de-energize the system before maintenance and use appropriate insulated tools. Read and retain the installation and safety instructions in the BMV-710H Smart manual.

Specifications

BMV-710H specifications

• Supply Voltage Range: 60-385 VDC
• Current Draw, Backlight Off: < 1 mA
• Input Voltage Range, Auxiliary Battery: n. a.
• Battery Capacity (Ah): 1 - 9999 Ah
• Operating Temperature Range: -40 +50°C (-40 - 120°F)
• Measures Voltage of Second Battery, or Temperature, or Midpoint: No
• Temperature Measurement Range: n. a.
• VE.Direct Communication Port: Yes
• Relay: 60V / 1A normally open (function can be inverted)

Resolution & accuracy (with a 500 A shunt)

• Current: ± 0.01A
• Voltage: ± 0.01V
• Amp Hours: ± 0.1 Ah
• State of Charge: (0-100%) ± 0.1%
• Time to Go: ± 1 min
• Temperature: n. a.
• Accuracy of Current Measurement: ± 0.4%
• Accuracy of Voltage Measurement: ± 0.3%

Installation & dimensions

• Installation: Flush mount
• Front: 63mm diameter
• Front Bezel: 69 x 69 mm (2.7 x 2.7 inch)
• Shunt Connection Bolts: M10 (0.3937 inch)
• Body Diameter and Depth: 52 mm (2.0 inch) and 31 mm (1.2 inch)
• Protection Category: IP55 (not intended for outdoor use)

Standards

• Safety: EN 60335-1
• Emission / Immunity: EN 55014-1 / EN 55014-2
• Automotive: ECE R10-4 / EN 50498

Related BMV-series accessory

• Optional temperature sensor for BMV-702: ASS000100000

Data Sheet

• BMV-710H Smart manual (English, Rev 19 - 08/2026)
• Victron Energy Limited Warranty Policy (PDF)

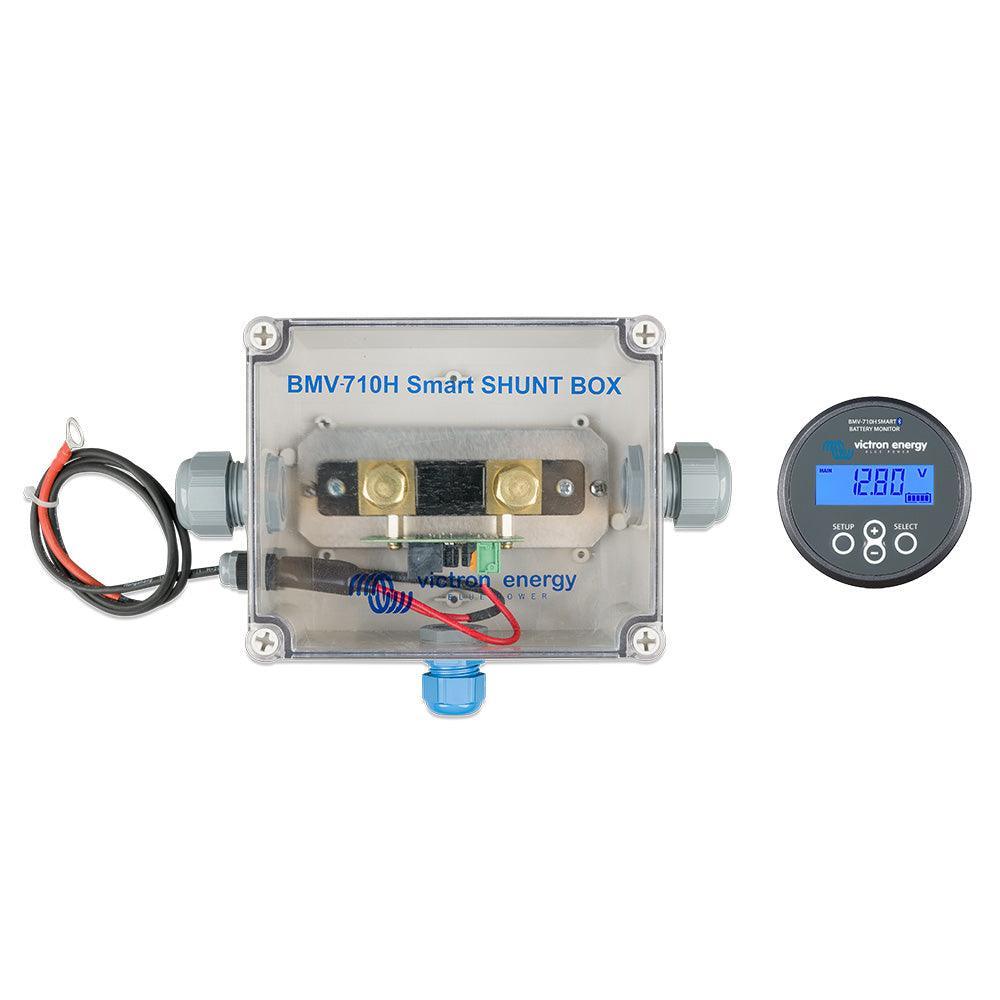

Kit Contents

• Round BMV-710H Smart head unit
• Square bezel overlay for a square or round display appearance
• Screw ring for rear mounting and screws for front mounting
• 500 A/50 mV quick-connect shunt in a special high-voltage enclosure
• 10m, 6-core UTP cable with RJ12 connectors
• 2m battery-positive cable with a 1 A slow-blow fuse

The supplied RJ12 cable and fused battery cable complete the monitor-to-shunt connection kit. Shunt-enclosure mounting screws are not included.
