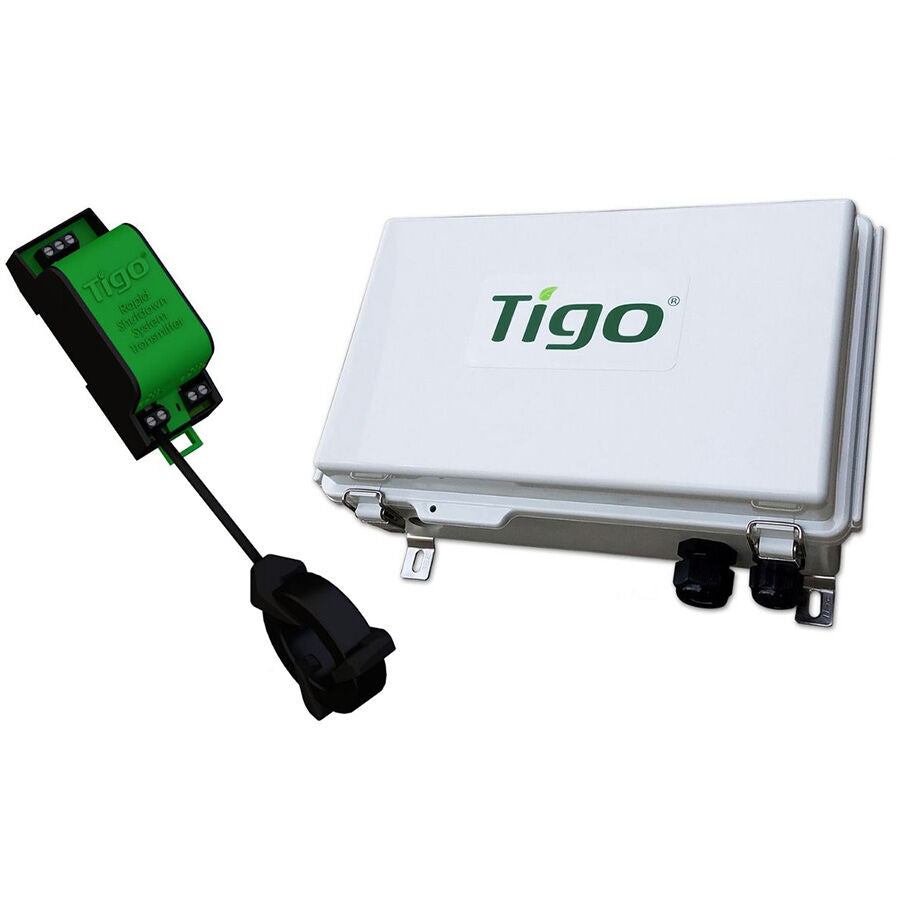

Tigo Single Core 100 Amp RSS DIN Rail Transmitter Kit

Price: $165.75 USD
List Price: $189.99 USD
Price: $165.75 USD
You save: $24.24 (13%)
View Cart

Bulk Discount

Buy 3 or more items and receive 5% off this order! Discount will be automatically applied at checkout.

Commercial Pricing

Email us or call/text 415-877-4201 for your custom quote!

Shipping & Delivery

Shipping options and rates are calculated at checkout. Large, heavy, or freight items may ship separately or require confirmation before fulfillment.

Interest-Free Financing

Checkout and pay with Affirm, PayPal Pay in 4, Sezzle or Shop Pay Installments.

Estimated Arrival: Between Jul 30 and Aug 10.

SAVE $10 on orders over $200 | Use Coupon Code: KEEP10

00 Days
00 Hours
00 Minutes
00 Seconds

Description
  • Full NEC 2014/2017/2020 Compliance: Meets 690.12 rapid-shutdown requirements in 36+ U.S. states when paired with Tigo TS4-A-F or TS4-A-2F units and a UL-listed PVRSS inverter.

  • Instant, Code-Required Safety: At the flip of a switch, firefighters and first responders can drop array voltage to a safe level-protecting lives, property, and your investment.

  • Proven PLC Signaling: Power-line communication keeps every TS4-F on the string fully energized during normal operation and puts modules into rapid-shutdown mode the moment grid power is lost or the transmitter is switched off.

  • Outdoor-Ready Durability: IP68 / NEMA 4 enclosure, -20 degrees C to 50 degrees C operating range, and a 10-year Tigo warranty ensure reliable performance in harsh climates.

  • Tigo RSS Transmitter (Single Core, 100 A)

  • Sealed outdoor enclosure with 120/240 VAC power supply

  • One RSS Core (supports up to 10 strings, 30 modules per string, 1,500 V DC max)

  • Max String Voltage: 1,500 V DC

  • Max Current per Core: 100 A

  • Supported Strings: Up to 10

  • Modules per String: Up to 30

  • Operating Temperature: -4 degrees F - 122 degrees F (-20 degrees C - 50 degrees C)

  • Environmental Rating: IP68, NEMA 4

  • Warranty: 10 years
    • Specifications
  • Max String Voltage: 1,500 V DC
  • Max Current per Core: 100 A
  • Supported Strings: Up to 10
  • Modules per String: Up to 30
  • Operating Temperature: -4 degrees F - 122 degrees F (-20 degrees C - 50 degrees C)
  • Environmental Rating: IP68, NEMA 4
  • Warranty: 10 years
    • Data Sheets
  • Download the 67 F4191763 D58 Fc 28 C7 F409 F 002 00157 00 1.2 QSG TS4 A F2 F W RSS Transmitter 20250325 EN: here
  • Download the 66 F439 Cbddd 5 C47 CE 3 Fd 53 Db 002 00118 00 4.3 IO M RSS Transmitter Installation 20240805: here
  • Download the 680 Fae 5 Df 8 B93 Aad 651 A7 E39 002 00146 00 1.4 Data Sheet RSS W PCBA 20250411 EN: here
