Sol-Ark L3-HVR-60KWH 61.44 kWh High Voltage Outdoor Commercial Battery System
Sol-Ark L3-HVR-60KWH 61.44 kWh High Voltage Outdoor Commercial Battery System
Sol-Ark L3-HVR-60KWH 61.44 kWh High Voltage Outdoor Commercial Battery System
Sol-Ark L3-HVR-60KWH 61.44 kWh High Voltage Outdoor Commercial Battery System
Sol-Ark L3-HVR-60KWH 61.44 kWh High Voltage Outdoor Commercial Battery System
Sol-Ark L3-HVR-60KWH 61.44 kWh High Voltage Outdoor Commercial Battery System

Sol-Ark L3-HVR-60KWH 61.44 kWh High Voltage Outdoor Commercial Battery System

Price: $40,500.00 USD
List Price:
Price: $40,500.00 USD
View Cart

Bulk Discount

Buy 3 or more items and receive 5% off this order! Discount will be automatically applied at checkout.

Commercial Pricing

Email us or call/text 415-877-4201 for your custom quote!

Shipping & Delivery

Shipping options and rates are calculated at checkout. Large, heavy, or freight items may ship separately or require confirmation before fulfillment.

Interest-Free Financing

Checkout and pay with Affirm, PayPal Pay in 4, Sezzle or Shop Pay Installments.

Estimated Arrival: Between Aug 01 and Aug 12.

SAVE $10 on orders over $200 | Use Coupon Code: KEEP10

00 Days
00 Hours
00 Minutes
00 Seconds

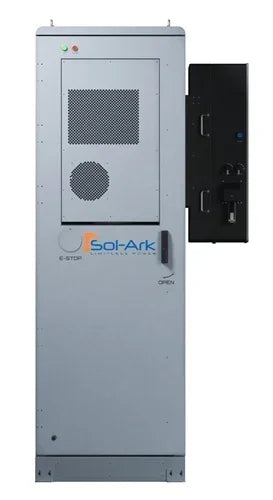

Sol-Ark L3-HVR-60KWH 61.44 kWh High Voltage Outdoor Commercial Battery System | IP55 Outdoor Commercial Enclosure

60kWh Outdoor Energy Storage System for either the Sol-Ark 30K or Sol-Ark 60K Commercial Inverter

Model L 3-HVR-60KWH
Series Sol-Ark L3 Series Batteries
Manufacturer Sol-Ark

Specifications

System Data
Compatible Inverters • Sol-Ark 30K-3P-208V-N
Sol-Ark Sol-Ark 30K-3P-208V-N inverter sold separately.

• Sol-Ark 60K-3P-480V-N
Sol-Ark Sol-Ark 60K-3P-480V-N inverter sold separately.
Environmental Rating Outdoor
Cell Chemistry Lithium Iron Phosphate (LiFePO4)
Battery Cabinet Capacity 61.44kWh
System Usable Energy* 55.30kWh
* DC usable energy, test conditions: 90% DOD, 0.3C charge and discharge at 25ºC. System usable energy may vary due to system configuration parameters.
Built-In DC Disconnect Rating 200A
Built-In DC Disconnect Rating 160A
Backup Capability Per Inverter 60 kWac
Max DC-Coupled Solar Per Inverter 78 kWac
Max AC-Coupled Solar Per Inverter 125 kWac
Max Battery Cabinets Per Inverter 6
Inverter Stacks in Parallel 6
Recommend Depth of Discharge 90%
System Nominal Voltage 616.4V
System Operating Voltage 588V–672V
Charge/Discharge Current*
• Recommend
• Nominal/Continuous
• Peak Discharge (2 mins, 25ºC)

50A : Recommended
100A : Nominal/Continuous
125A : Peak Discharge (2 mins, 25ºC)
* The current is affected by temperature and SOC.
Combined Battery + Inverter Efficiency 90% (25C, 0.5C)
Dimension (feet) 30 x 42 x 89 in
Weight 2095 lbs.
Operating Temperature* -10°C — 50°C (14°F — 122°F)
Humidity 5%~85%RH
Altitude 3000m (9,843 ft)
Storage Temperature -4ºF — 95ºF
Up to 85% RH (non-condensing)
State of Charge (SOC) 30%
Ingress Rating IP55 (NEMA 3R)
Seismic Zone 4
Communication Port CAN2.0/RS485

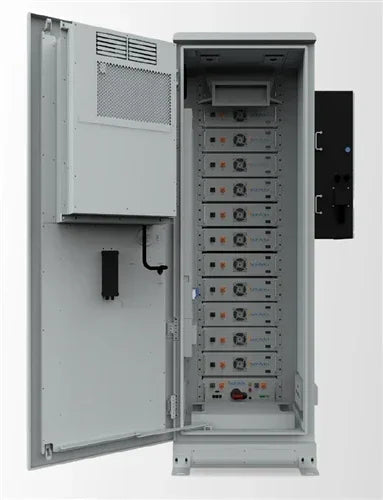

Battery Module Specifications
Battery Modules in Series Per Cabinet 12
Battery Module Energy 5.12kWh
Battery Module Nominal Voltage 51.2V
Battery Module Nominal Capacity 100AH
Warranty and Certification
Performance Warranty 10 years or 196MWh Throughput
Product Warranty 10 Years
Certification UL1973, UL9540, UL9540a, UN38.3, FCC, Prop 65

Features

  • Fully integrated energy storage solution – Hybrid Inverter, battery and fleet management
  • Built-in dual fire suppression including cabinet and packs
  • Integrated air conditioner for temperature control
  • Intelligent EMS, BMS and hybrid inverter technology
  • Supports up to 6 battery cabinets per Inverter
  • 10-Year Warranty

About the Sol-Ark L3 Series

The Sol-Ark L3 Series Limitless Lithium™ Battery Energy Storage System with Native 208V and 480V options offers scalable energy storage from 40Wh to 11.5 MWh.

L3 Series Indoor & Outdoor Commercial Battery Features

• Reduce energy costs
• Ensure uninterrupted operations
• Protect data and essential loads
• Capacity to easily deploy EV charging stations

Documentation

Datasheet Sol-Ark L3 Series IP20 Indoor & IP55 Outdoor Commercial Batteries - 480V
Brochure Sol-Ark L3 Series Commercial Energy Solutions
Reference Guide Nema Enclosure IP Rating
