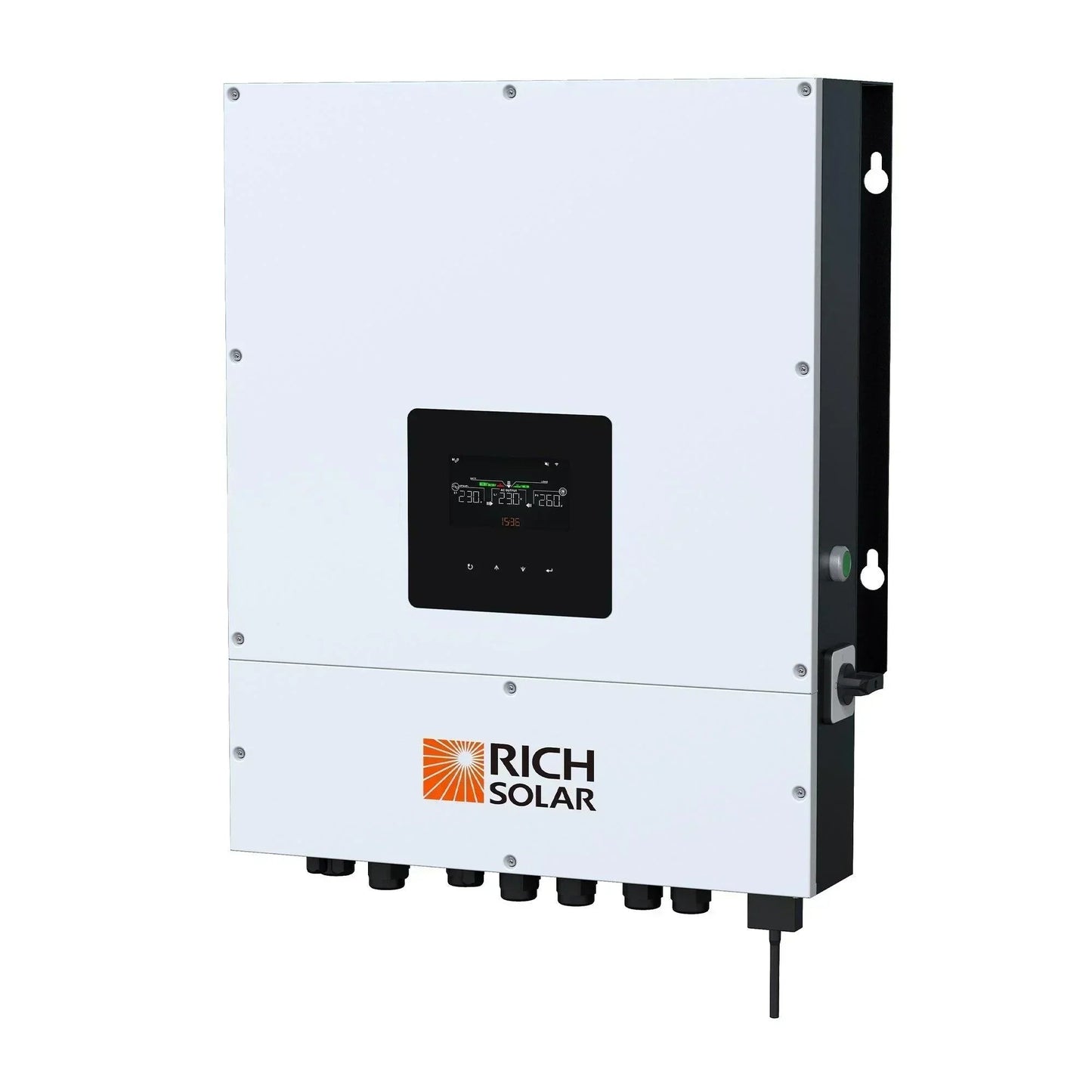

NOVA 8K Watt (8kW) 48V Split Phase Hybrid Inverter Premium  Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid

FEATURES

• IP65 waterproof and dustproof makes the inverter available for various working conditions.
• Configurable color with the built-in RGB LED bar
• Built-in Wi-Fi for mobile monitoring (APP is required)
• Built-in alternative port for generator and emergent load.
• Optional external CT sensor to guarantee 100% self-consumption.
• Programmable supply priority for PV, Battery or Grid.
• Built-in communication port for BMS (RS485).
• User-adjustable charging current and voltage.
• Parallel operation up to 6 units

Tech Specs

Specifications:

Maximum PV Input Power: 7500W

Rated Output Power: 6000VA/6000W

PARALLEL CAPABILITY: Yes, 6 units

INPUT

• Maximum DC Voltage: 600VDC
• Start-up Voltage/initial Feeding Voltage: 120VDC/160VDC
• MPPT Voltage Range: 120VDC-550VDC
• Frequency Range: 50Hz / 60Hz (Auto detection)

OUTPUT

• Output Voltage Waveform: Pure Sine Wave
• Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
• Output Voltage Range: 105.5-132VAC per phase
• Nominal Output Current: 25A per phase

BATTERY

• Battery Voltage: 40-62 VDC
• Maximum Charging Current: 120A
• Efficient(DC to AC): 91%

OPERATING ENVIRONMENT

• Operating Temperature Range: -25°C to 60°C(>45°C derating)

PHYSICAL

• Dimension: 8.5x20.3x27.6in / 215.5x515x700mm (with extension box)
• Net Weight : 90.4lb / 41kg

User Manual & Specification

6000 Watt 48 Volt Off-grid Hybrid Inverter

User Manual    Specification
