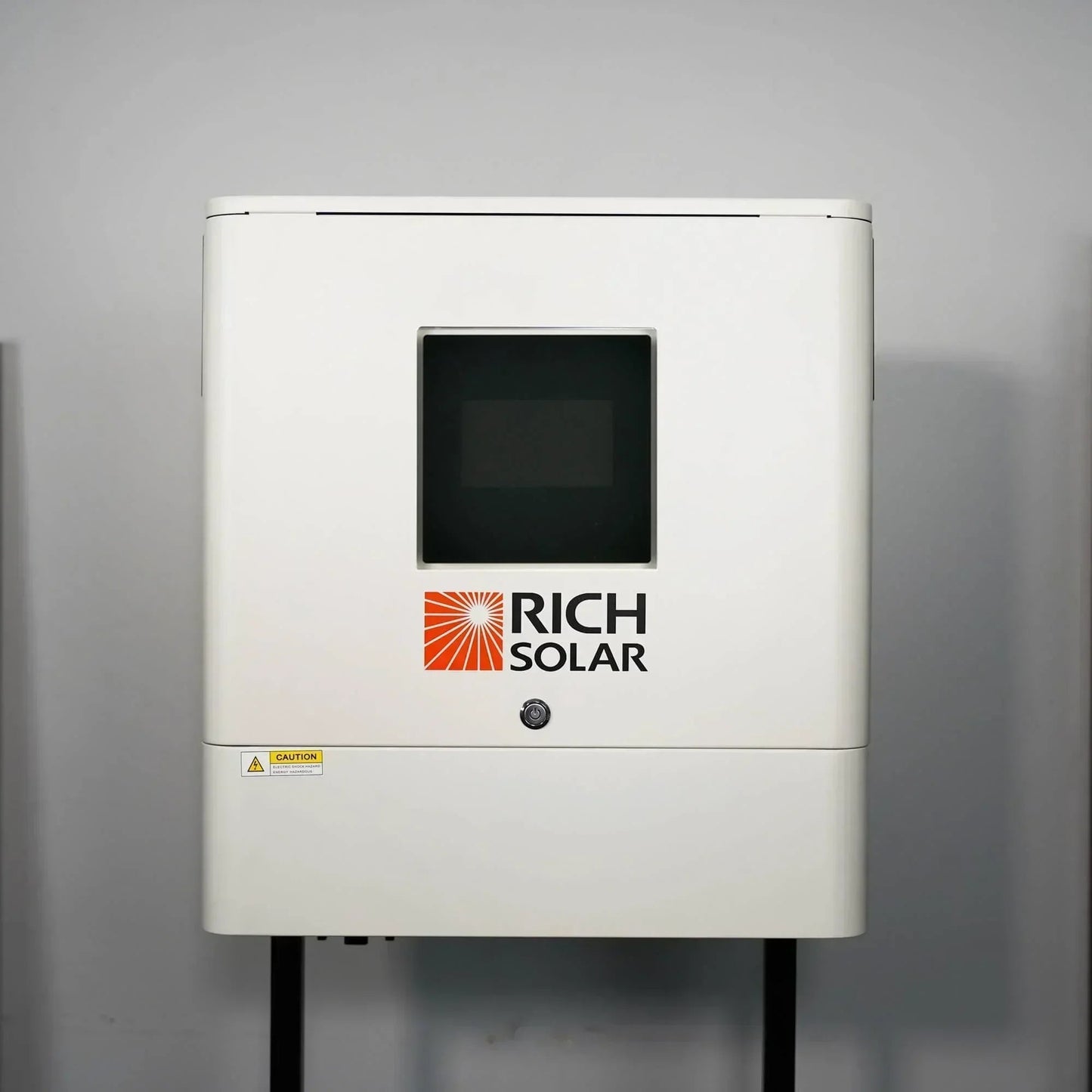

NOVA 6500S | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter | UL Certified

NOVA 6500S| 6500 Watt 48 Volt Solar Inverter

1. UL Certification
2. Status indication with RGB lights
3. Built-in Wi-Fi for mobile monitoring (Android/iOS)
4. Supports USB On-the-Go function
5. Data log events stored in the inverter

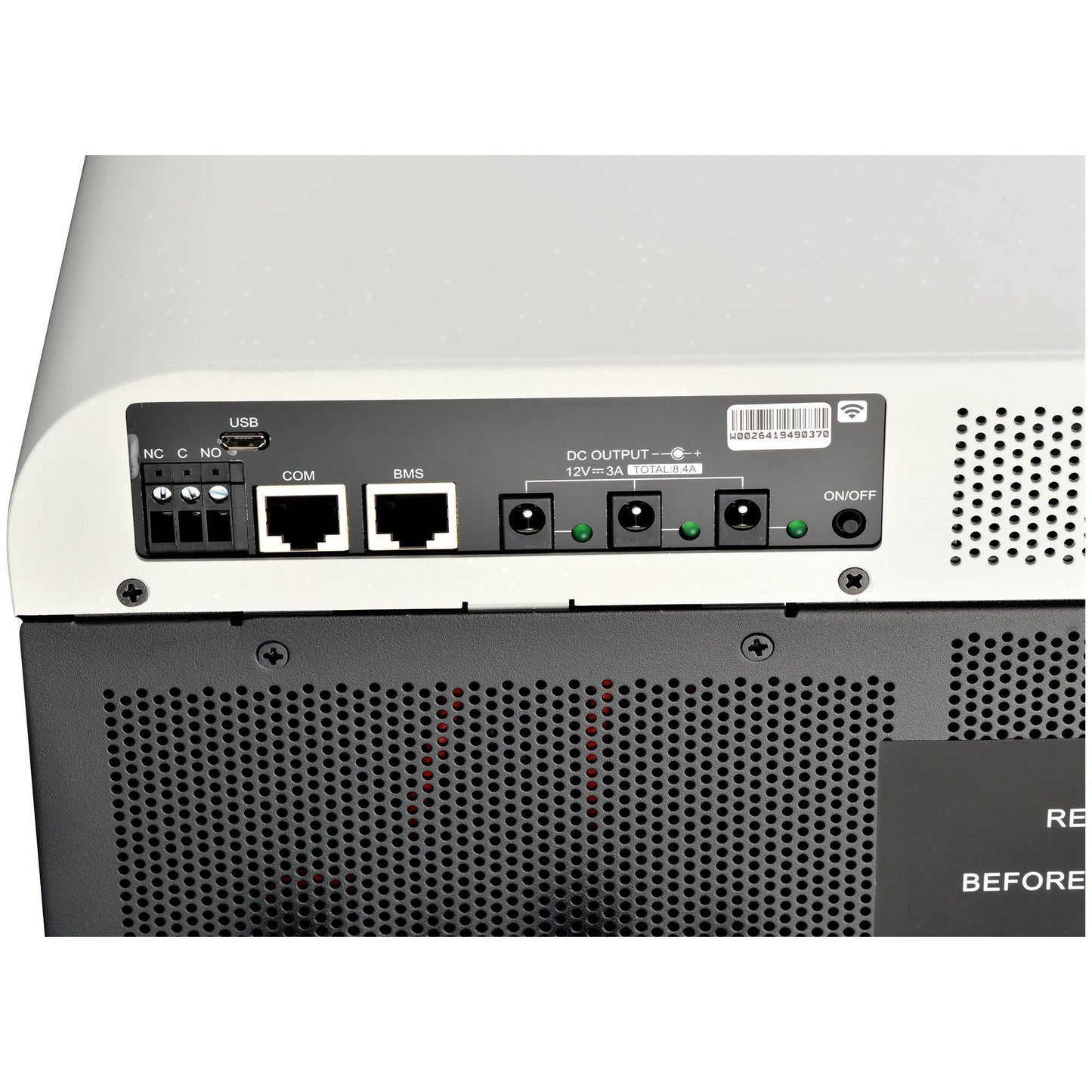

6. Reserved communication port for BMS (RS485, CAN-BUS or RS232)

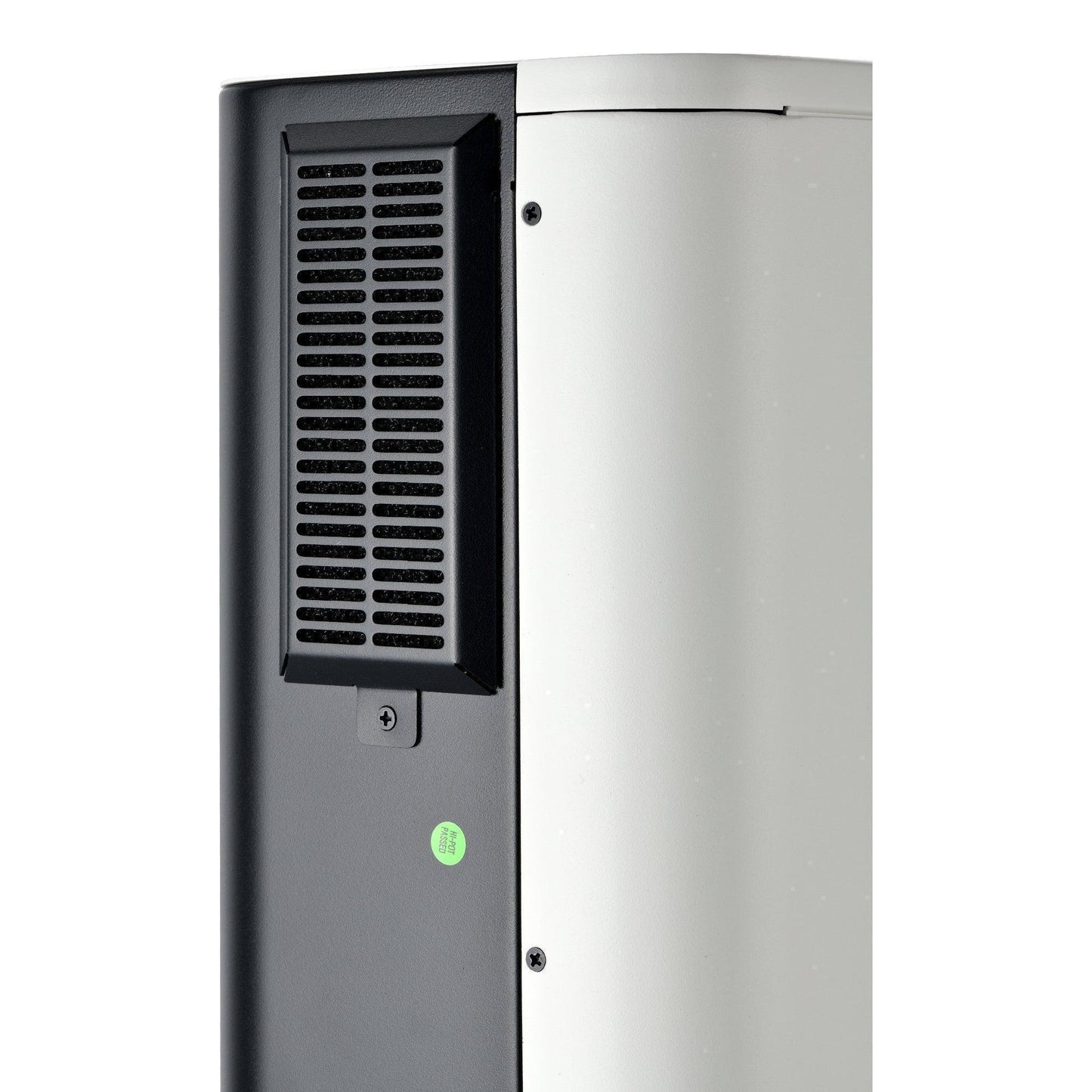

7. Replaceable fan design for ease of maintenance
8. Battery independent design
9. Configurable AC/PV output usage timer and prioritization
10. Adjustable high-power charging current
11. Adjustable input voltage range for home appliances and personal computers
12. Compatible with Utility Mains or generator input
13. Built-in anti-dust kit
14. Optional DC output for DC fan, LED bulb, router, etc.
15. 6-unit parallel operation capabilities

Simple Install, Smart Control

The NOVA Series 6500S Iverter provides convenient, smart energy mangement. With built-in Wi-Fi, you can easily connect with your Android or iOS device using the RICH SOLAR monitoring apps for real-time monitoring, electricity usage tracking, and data logging. RGB status lights facilitate monitoring and management while USB On-the-Go enables easy data upload/download.

Powerhouse for Heavy Loads

Effortlessly power high-demand devices with the RICH SOLAR NOVA Series 6500S Inverter. It provides a continuous power of 6500W, reaching a peak of 13kW. This modwel enables a high output power of up to 39kw, supported by a parallel operation of up to 6 units in single-phase, split-phase, or 3-phase configurations.

Flexibility Without Batteries

The NOVA Series 6500S inverter offers flexibility by making the battery optional. For lighter loads and stable solar panel output, no battery connection is necessary. However, if needed, it is compatible with a range of battery types, including AGM, Pylontech, WECO, Soltaro, LIB-Protocol, and third-party lithium batteries.

MPPT Control for Enhanced Performance

Equipped with an MPPT controller, the solar inverter maximizes efficiency with a wide voltage range of 90-230 VDC, achieving a high peak efficiency of 91% while also protecting batteries for extended lifespan and sustainable performance.

Pure Since Wave Technology

Pure sine wave output ensures high stability and premium quality to safeguard devices and prolong their lifespan, operating quietly to minimize noise interference.

Multi-Compatible Inverter for Various Devices

The NOVA Series 6500S Solar Inverter's wide input voltage range is compatible wit hmost electronics and appliances (80 - 140 VAC). The inverter also offers high-power charging from 10A to 120A for a wide range of batteries. The optional DC output supports fans, LED bulbs, and routers, making it versatile and efficient.

Three Charging Modes for Versatile Power

Three Load Output Working Modes

Your Safety, Our Priority

Experience safe and reliable operation with the NOVA Series 6500S, featuring multiple protection measures including overload, over-temperature, and short circuit protection. Seamlessly integrate a BMS with the reserved port for enhanced functionality. Operating within a temperature range of 14°F to 122°F, the 6500S Inverter ensures seamless adaptation to diverse climates, guaranteeing year-round efficient and secure performance.

What's in the Box

Tech Specs

Specifications:

Model: RS-H6548S
Rated Inverter Power: 6500VA/6500W
PARALLEL CAPABILITY: Yes, 6 units

INPUT

• Voltage: 120 VAC
• Selectable Voltage Range: 90-140 VAC (For Computers)
• 80-140 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto Sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode): 120VAC ± 5%
• Surge Power: 13000VA
• Efficiency (Peak): 91%
• Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure Sine Wave
• No Load Power Consumption: <70W
• Optional DC Voltage: 12 VDC ± 5%, 100W
• Dual Outputs: Yes

BATTERY

• Battery Voltage: 48 VDC
• Floating Charge Voltage: 54 VDC
• Overcharge Protection: 66 VDC

SOLAR CHARGER & AC CHARGER

• Solar Charger Type: MPPT

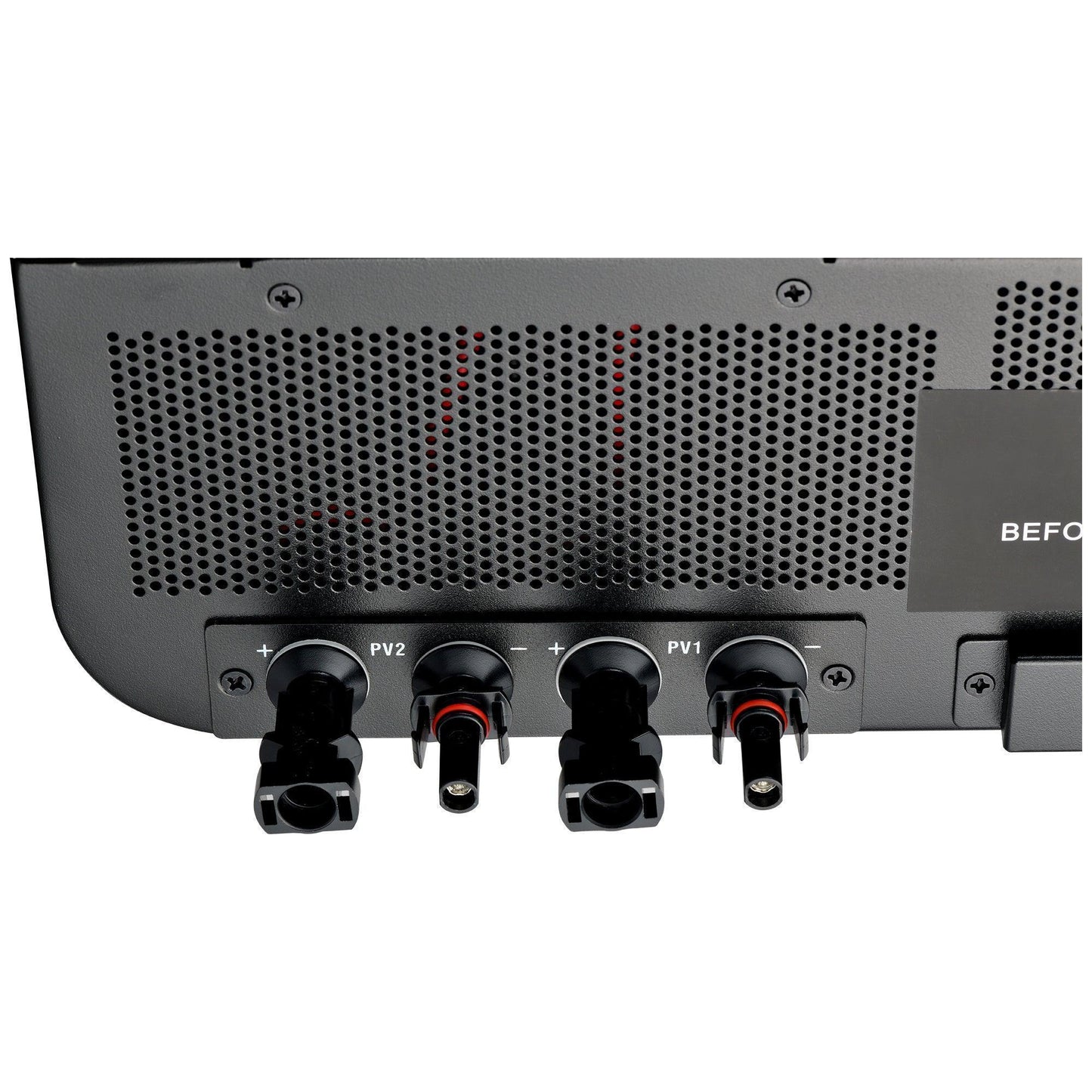

• Maximum PV Array Power: 8000W (4000W x 2)
• MPPT Operating Voltage Range: 90 ~ 230 VDC
• Maximum PV Array Open Circuit Voltage: 250 VDC
• Maximum Solar Charge Current: 120A
• Maximum AC Charge Current: 120A
• Maximum Charge Current: 120A

PHYSICAL

• Dimension (D X W X H): 5.8 x 17.0 x 21.8 in
• Net Weight: 44.09 lb
• Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact

OPERATING ENVIRONMENT

• Humidity: 5% to 95% Relative Humidity(Non-condensing)
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C

STANDARD

• Compliance Safety: UL
