Description

Rich Solar 6 Panel Complete Solar Kit - 1200 Watt 24V

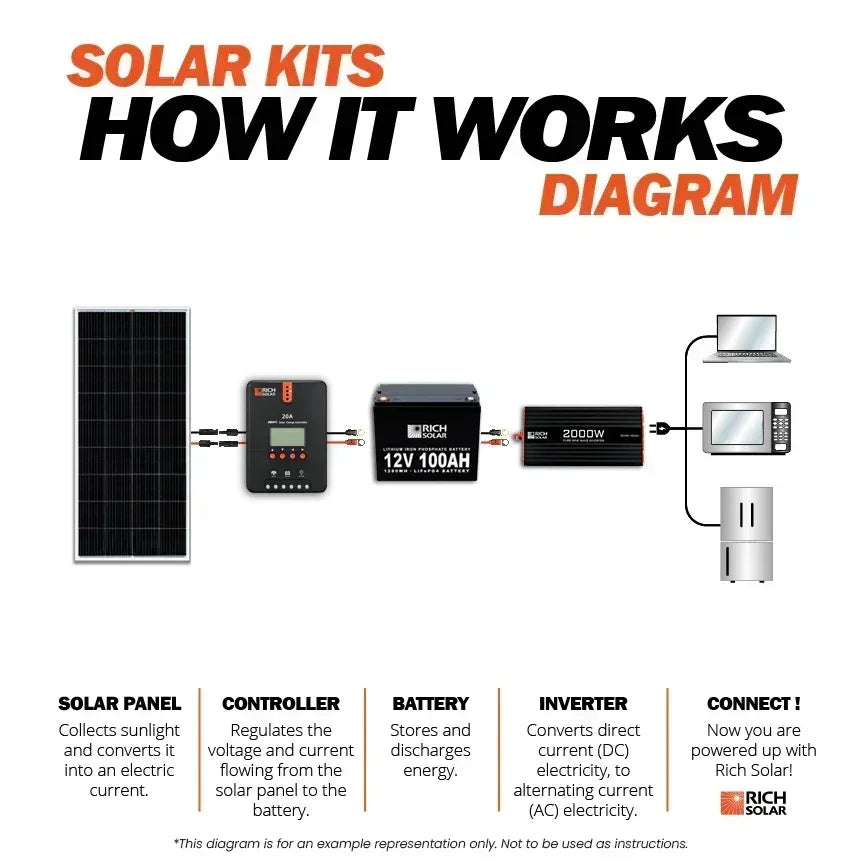

The RS-CK1200 is a 1200W, 24V-class complete off-grid solar kit for compatible RV, tiny-home, cabin and trailer applications. It includes 6 200W monocrystalline solar panels, a 60A MPPT charge controller, one 3000W 24V inverter and two ALPHA 4 lithium batteries for solar generation, energy storage and AC power.

Features and system ratings:

• 6 MEGA 200 12V panels (RS-M200), rated at 200W each, provide 1200W of total solar-panel capacity. The panel nominal voltage does not change the kit's 24V system designation.
• Two ALPHA 4 LiFePO4 batteries (RS-B241S) are each rated at 25.6V nominal, 100Ah and 2560Wh, providing 5.12kWh of total nominal battery energy.
• One RS-V3P24 inverter is rated at 24V DC input, 3000W continuous pure sine wave output, 6000W peak surge and 120V AC output.
• One 60A MPPT solar charge controller (RS-MPPT60) is included. System wiring and component limits must match the installation and connected loads.

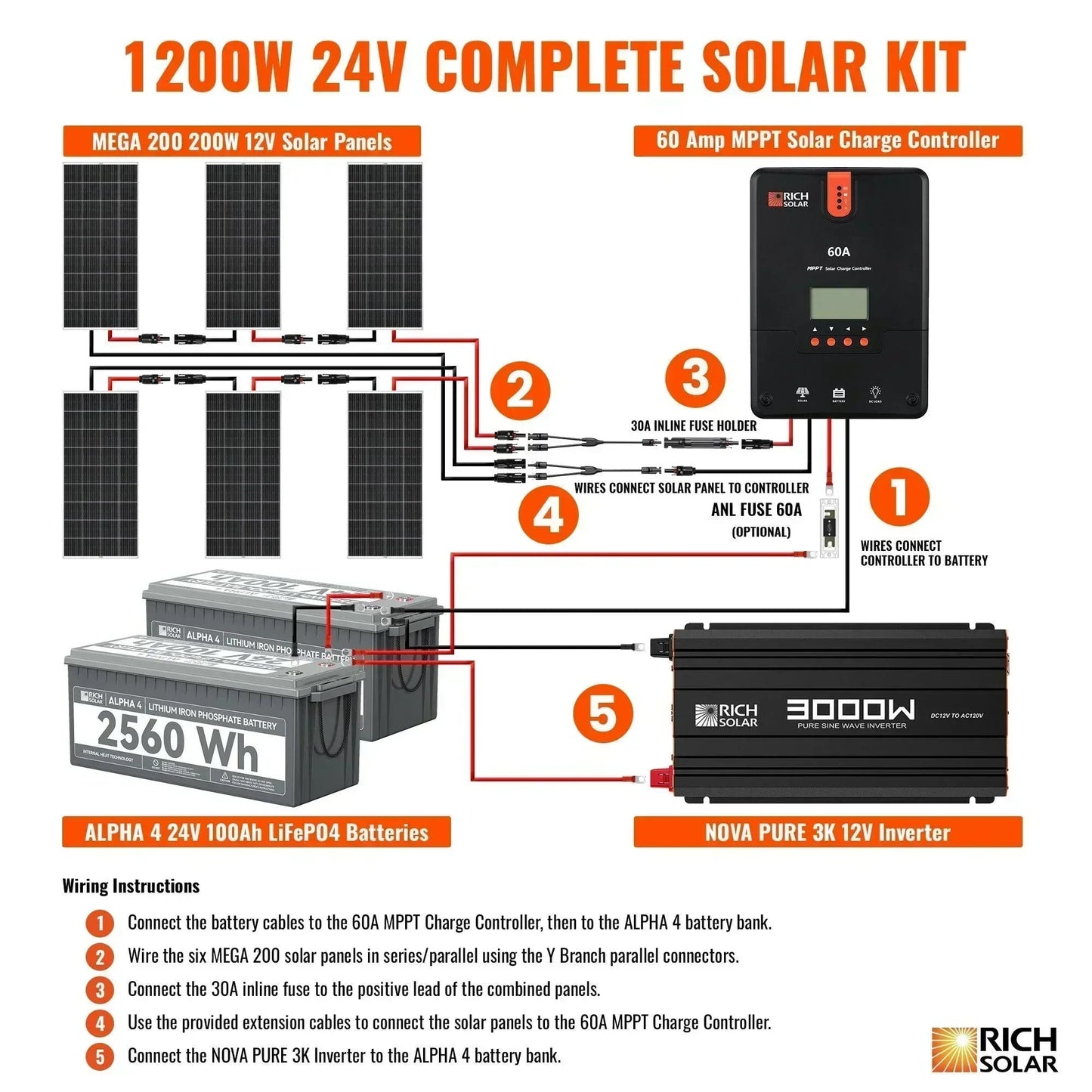

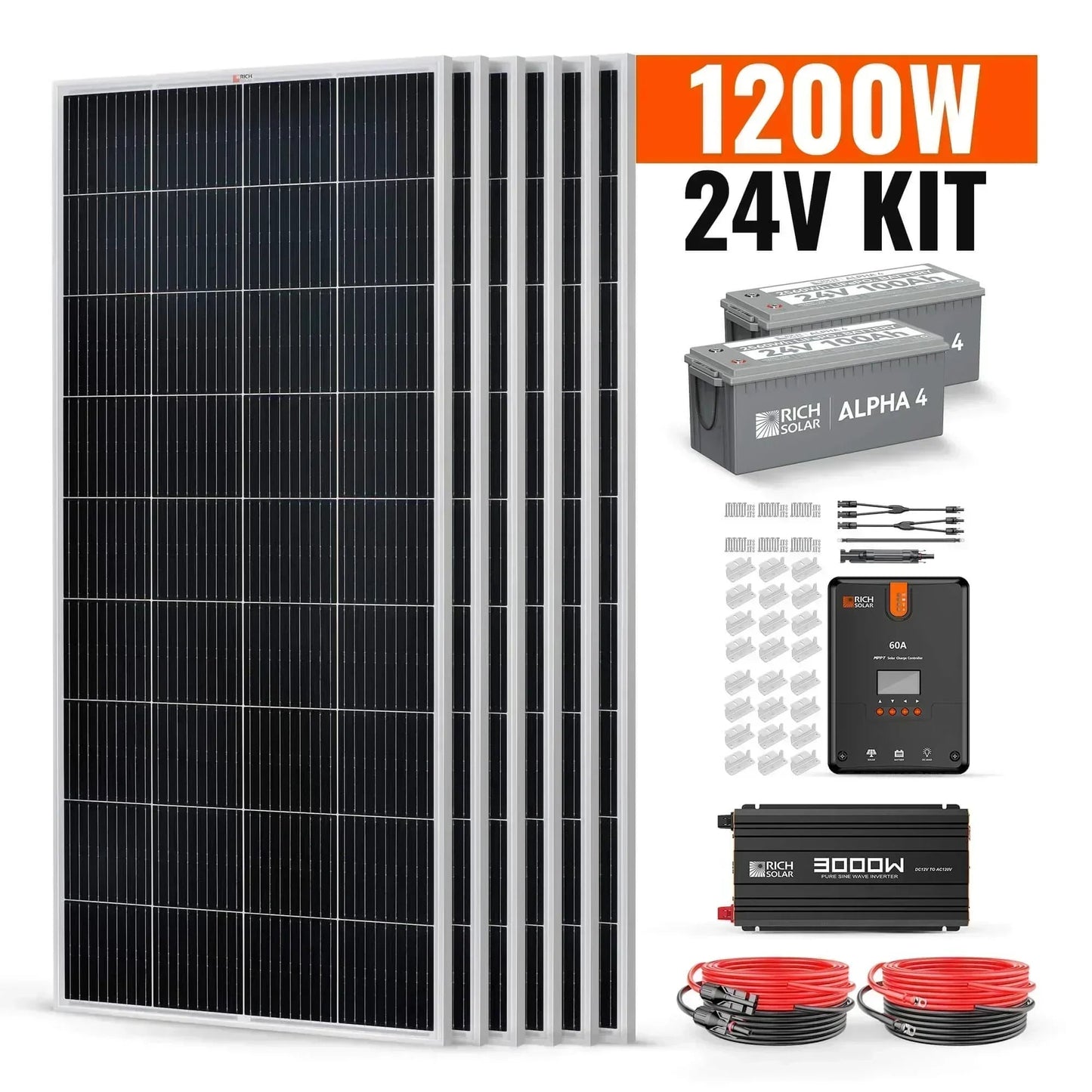

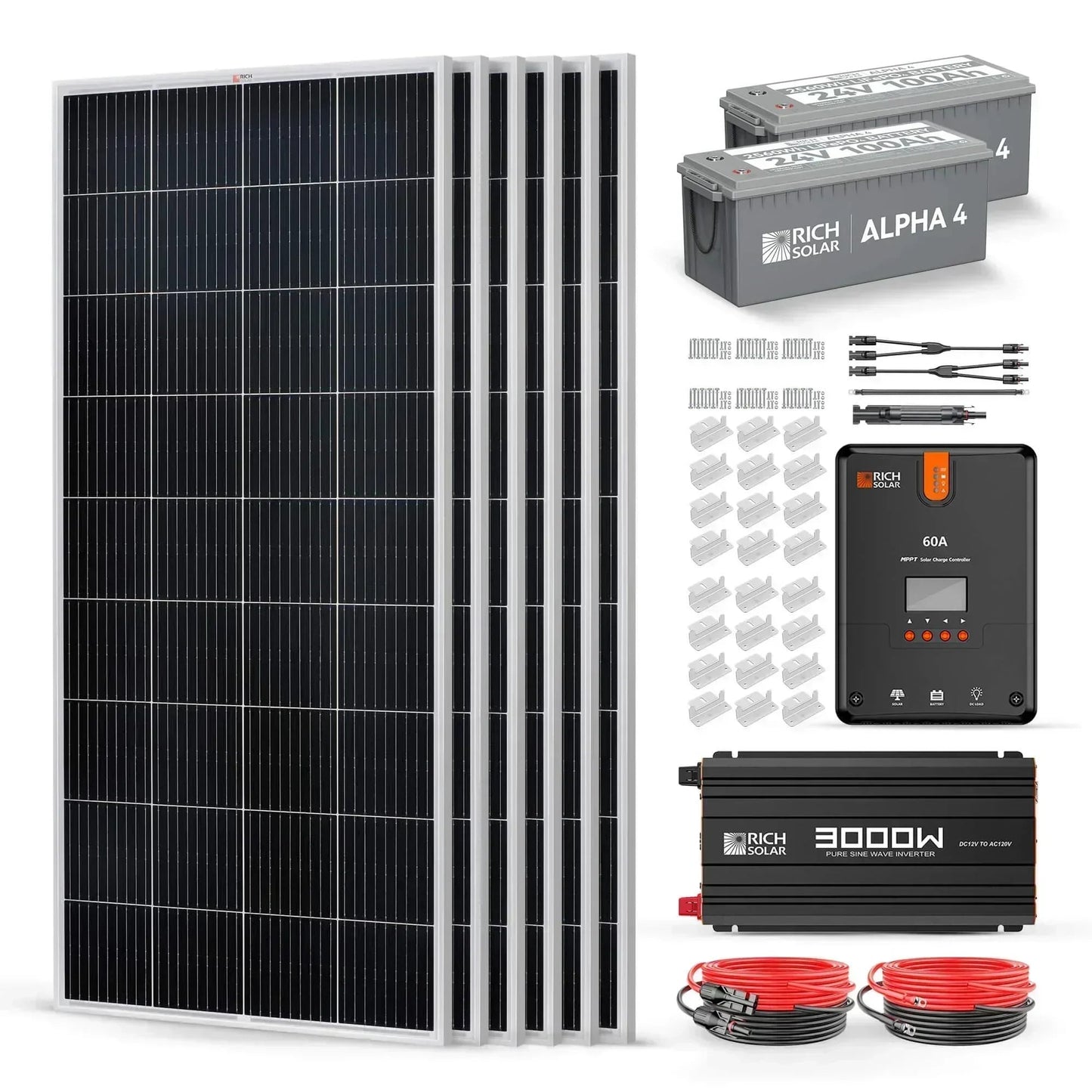

Kit contents:

• 6 x MEGA 200 12V 200W Solar Panels (RS-M200)
• 2 x ALPHA 4 Lithium Batteries (RS-B241S)
• 1 x 3000W 24V Inverter (RS-V3P24)
• 1 x 60A MPPT Charge Controller (RS-MPPT60)
• 6 x Z Bracket sets (one set of 4) (RS-ZB4C)
• 1 x 30A Inline Fuse Holder (RS-SC30F)
• 1 x Y Branch Parallel Adapter (RS-Y2)
• 1 x 2 AWG 1 ft Inverter Battery Cable Red (RS-C21R)
• 1 x 2 AWG 1 ft Inverter Battery Cable Black (RS-C21B)
• 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
• 1 x 10 ft 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
• 1 x 8 ft 4 AWG Battery Cable Set (RS-C48B & RS-C248R)

Solar production, available storage and runtime depend on sunlight, installation, system configuration and connected loads. The listed kit components support system planning; they do not establish that every site-specific installation material is included.
