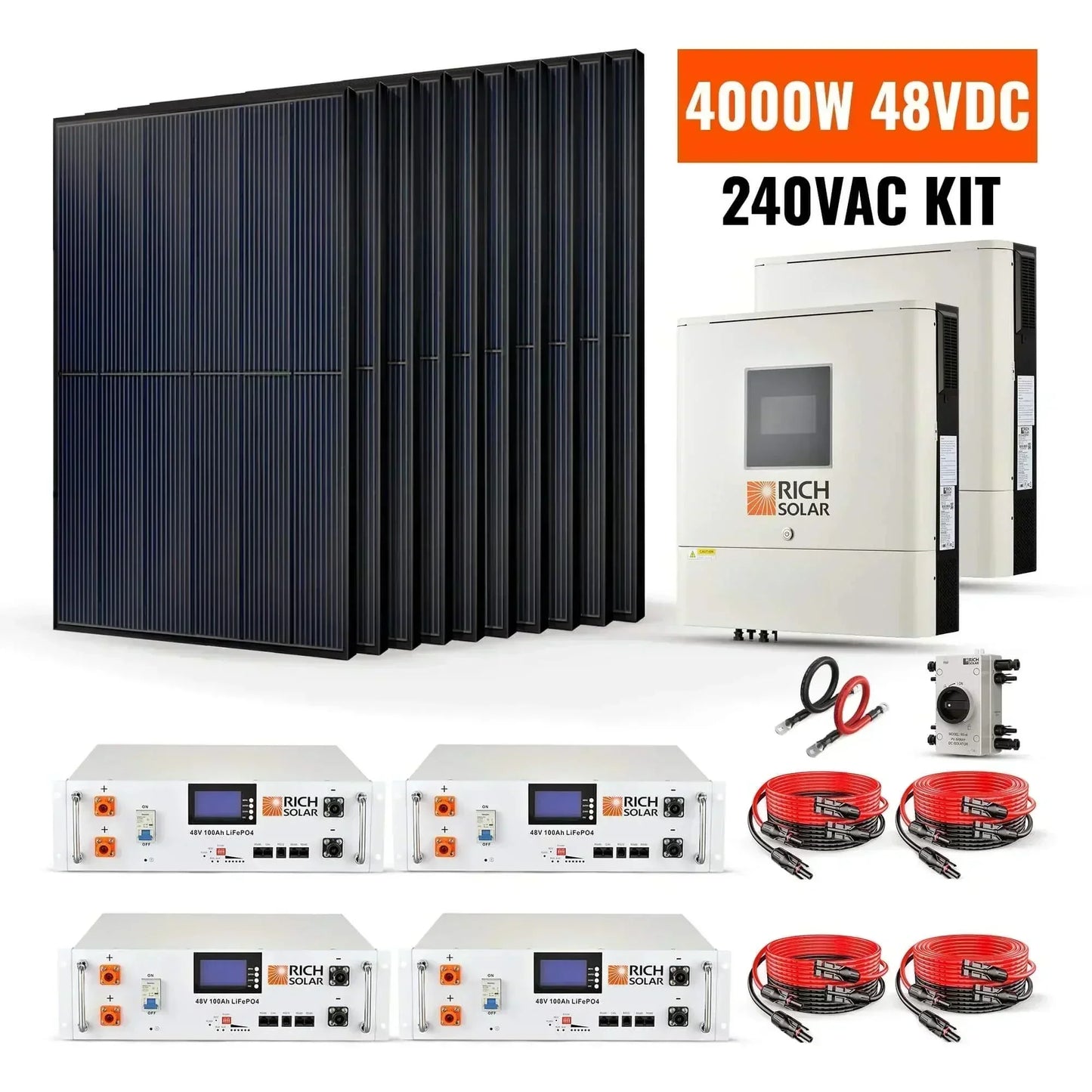

Rich Solar 4000W 48VDC-240VAC Solar Kit

The RS-CBK4000240 is a 48V-class off-grid solar kit for generating, storing and supplying power. The 4000W figure is part of the kit model name; its supplied solar array is rated at 4100W, and its two-inverter system is rated at 13,000W continuous output when configured together.

Features and system ratings:

• 10 MEGA 410 monocrystalline panels (RS-M410), rated at 410W each, provide 4100W of total panel capacity.
• 4 ALPHA 5 PRO server-rack LiFePO4 batteries (RS-B5121P), each rated at 51.2V, 100Ah and 5120Wh, provide 20.48kWh of total nominal energy storage.
• Two NOVA 6500S 48V hybrid inverters (RS-H6548S), rated at 6500W each, support a configured 120/240V split-phase system. Each individual inverter has a 120V AC output. The manufacturer specifies 13,000W continuous and 26,000W surge output for the two-inverter system.
• The inverter system supports solar, battery, utility and generator inputs. Included busbars, extension cables, PV quick-disconnect equipment and battery cables are itemized below.

Applications and operating conditions:

The kit can support off-grid and backup-power applications such as homes, cabins, farms, workshops and remote properties. Solar generation and battery storage can reduce reliance on grid electricity and may reduce purchased electricity. Actual generation, savings, runtime and supported loads depend on sunlight, installation, system configuration, available stored energy and connected loads; whole-home operation or a particular saving is not guaranteed.

For RV and tiny-home applications, verify available space, mounting, weight and electrical compatibility for the selected installation.

Expansion requires compatible equipment, a suitable system design and operation within the component ratings. The kit contents below do not establish that additional mounting equipment, protective devices or other site-specific installation materials are included.

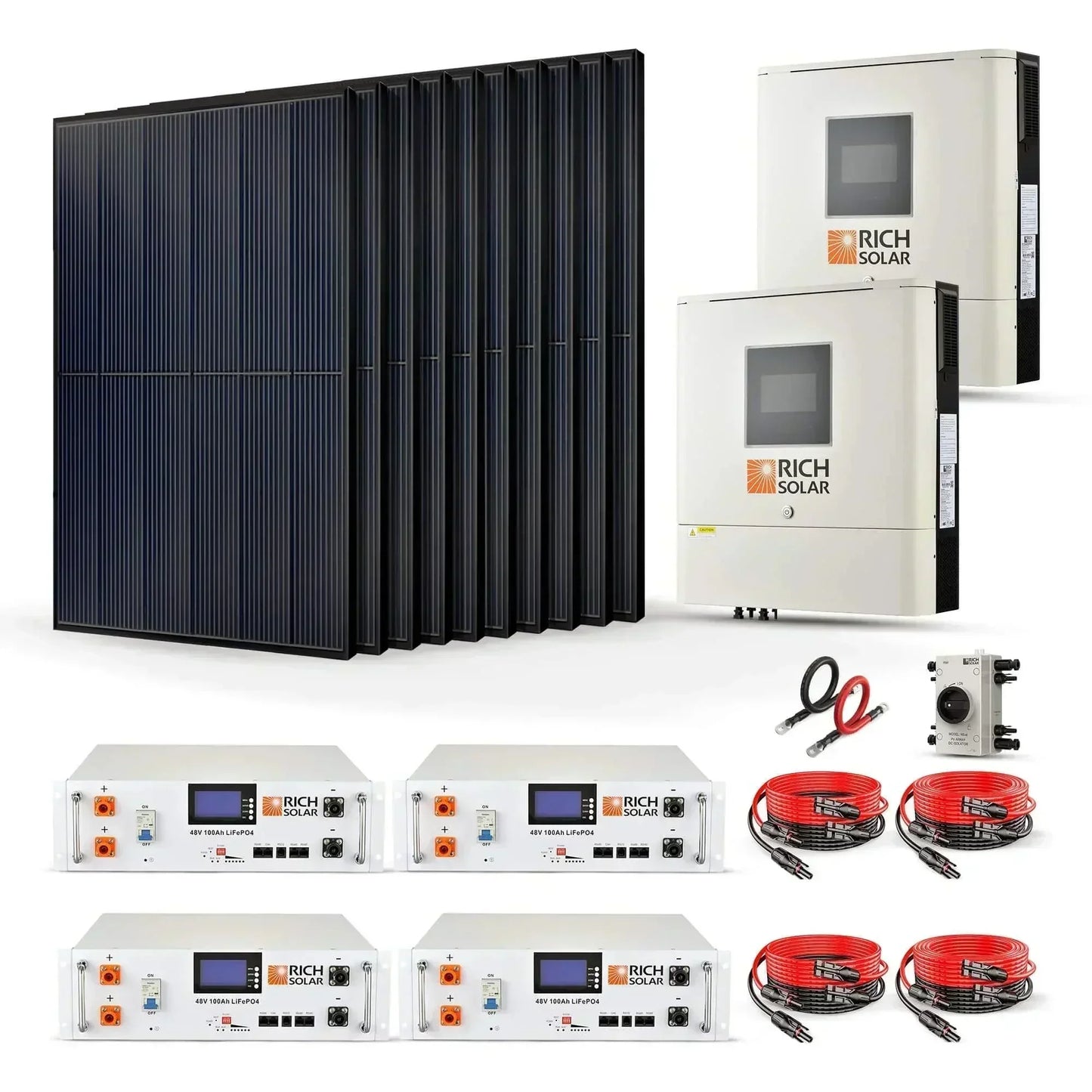

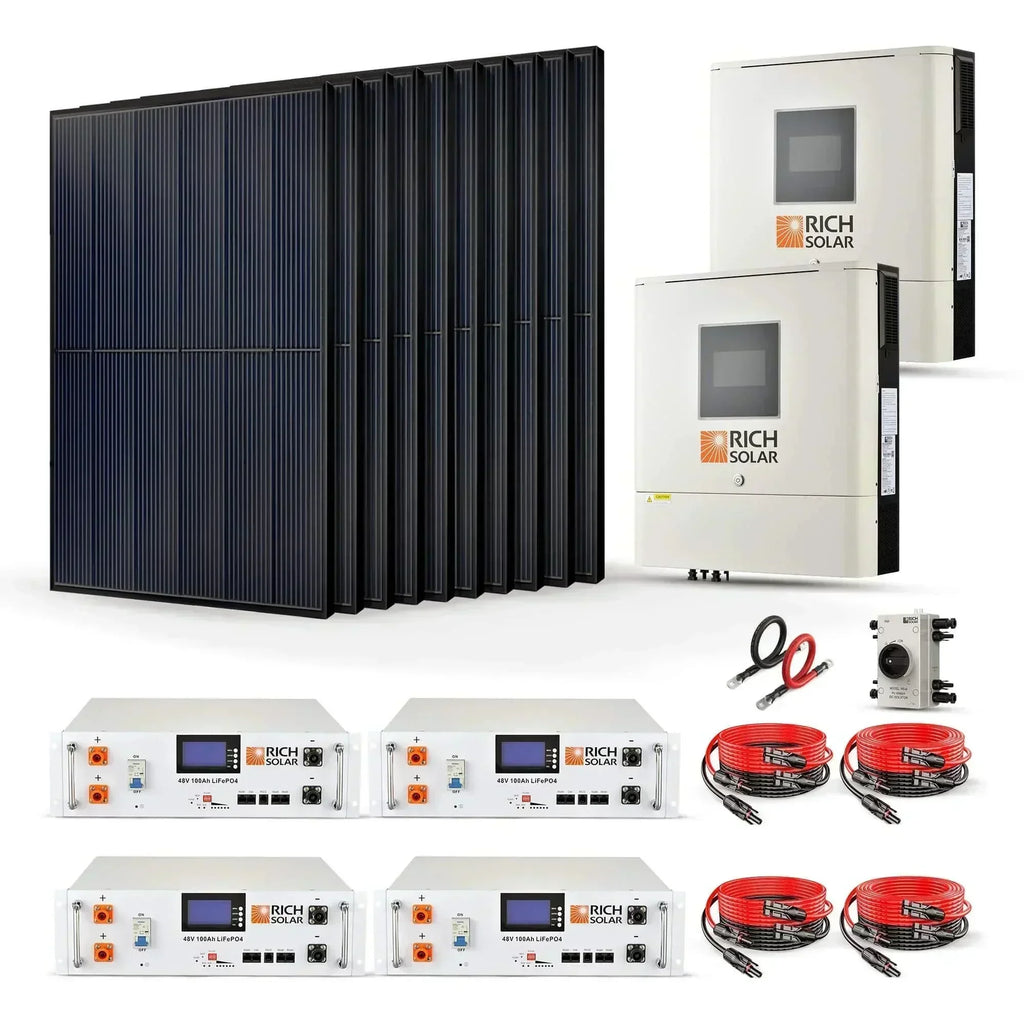

Kit contents:

• 2 x 6500W 48V Off-grid Solar Inverters (RS-H6548S)
• 10 x MEGA 410 24V 410W Solar Panels (RS-M410)
• 4 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries (RS-B5121P)
• 2 x 600 AMP Busbars
• 2 x 10 AWG 30 ft Extension Cables (RS-30102)
• 2 x 10 AWG 10 ft Extension Cables (RS-10102)
• 1 x PV DC Quick Disconnect (RS-i4)
• 1 x 4/0 AWG 5 ft Battery Cables (RS-4/0A5F3)

Manufacturer warranty information:

• MEGA 410 panels: 25-year limited output warranty and 10-year workmanship warranty.
• NOVA 6500S inverters: 3-year warranty.
• ALPHA 5 PRO batteries: 10 years for manufacturer defects.

The manufacturer lists these component warranties; coverage and exclusions are subject to its applicable terms.

Manufacturer California warning:

Cancer risk and reproductive harm.
