Description

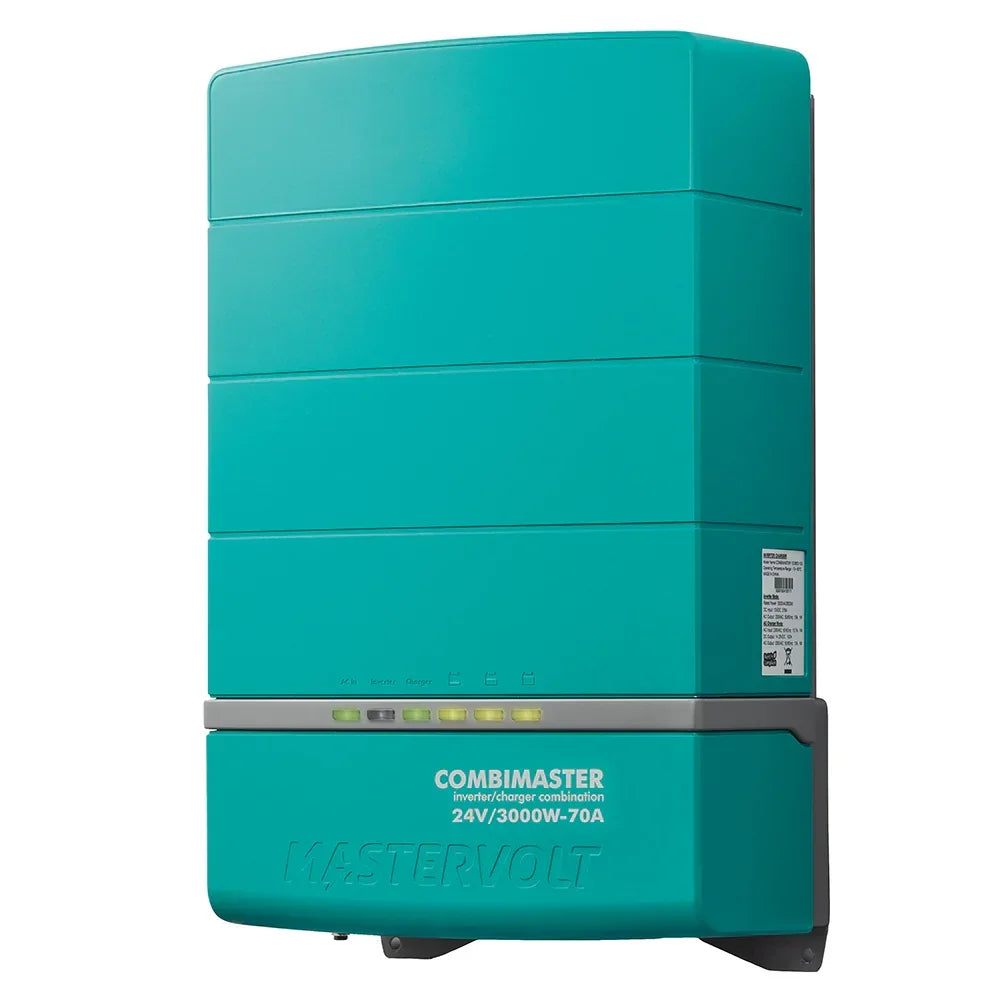

CombiMaster 24V - 3000W - 70 Amp (120V)

The CombiMaster combines an inverter, battery charger and automatic AC transfer system that switches between generator or mains supply and inverter output. Configure the AC input limits and Power Assist settings for the connected generator or mains supply; Power Assist supplements a limited AC supply within the connected source and configured system limits.

MasterBus, CZone and NMEA 2000 communication support monitoring and system integration.

Features:

• Reliable, hum-free and longer operation from your batteries.
• Supports demanding and sensitive loads within the selected-model continuous and surge ratings.
• Intelligent 3-step+ battery charger for faster and safer charging.
• Automatic switching between mains and inverter mode.
• Power Assist supplements a limited AC supply when configured within the connected source and system limits.
• Generator compatible.
• Integrated CZone*, MasterBus and NMEA 2000 communication.

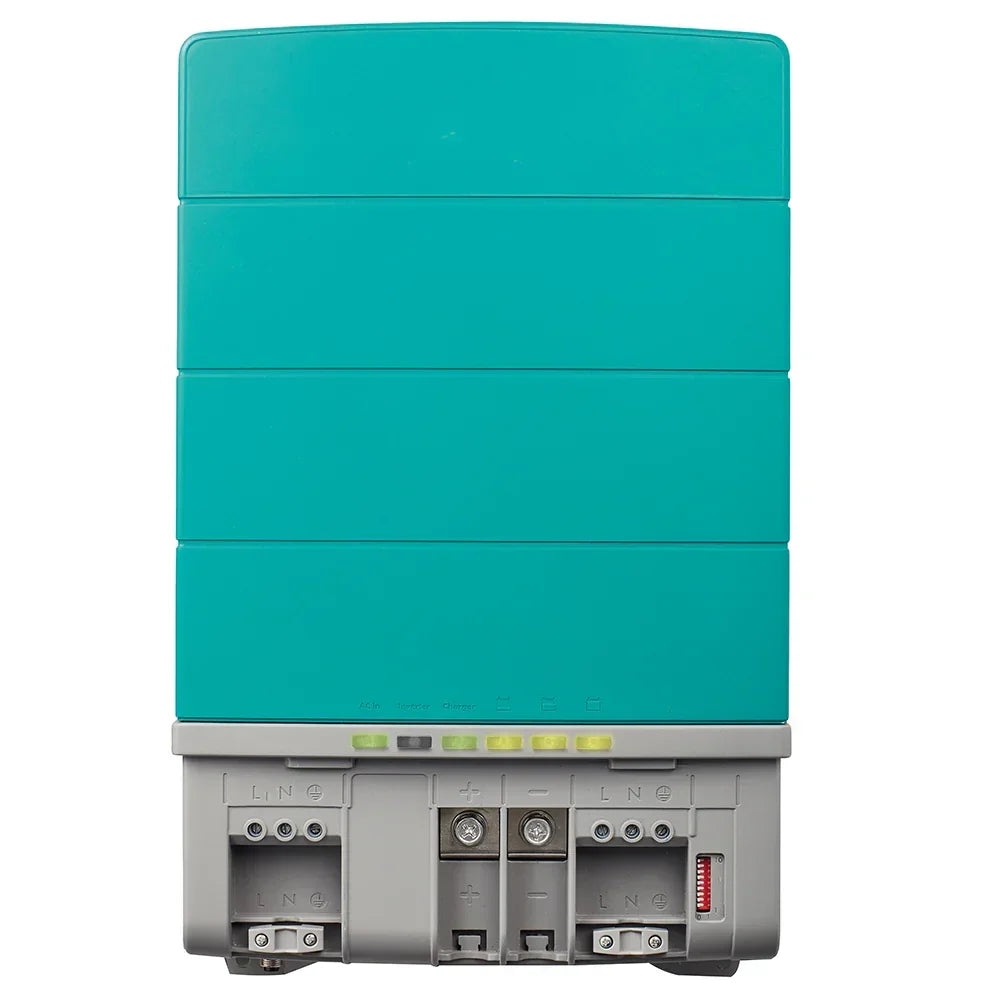

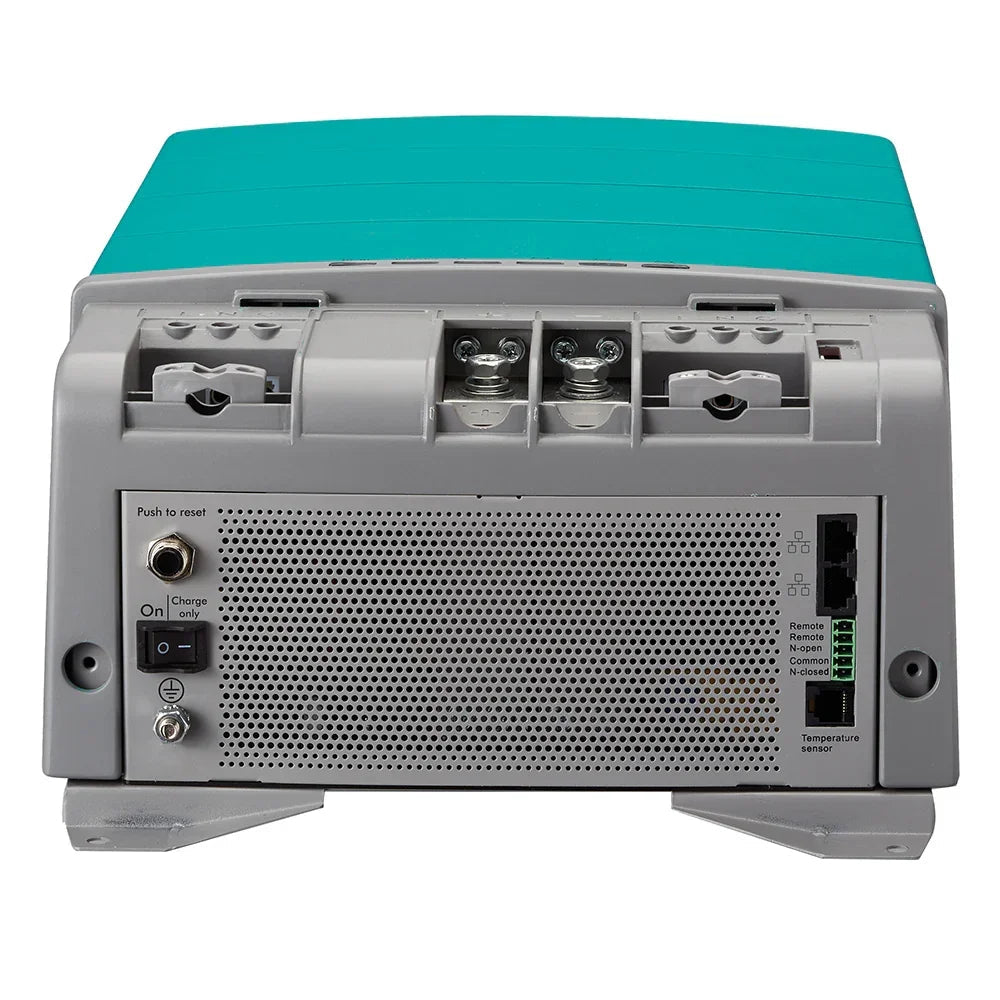

• Quick installation with heavy duty connections.
• E-mark certified.

Remote Control & Monitoring Options:

• MasterBus compatible via SmartRemote or EasyView 5 display.
• CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display.
• NMEA 2000 compatible via 3rd party multifunctional display.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Outlet Qty: Hardwire
• Inverter Output Voltage: 120 V
• Maximum charge current: 70 A at 28.5 V and 40 °C.
• Charger Input - Voltage: 120 V
• Inverter Input Voltage: 24 V
• Inverter continuous output: 3000 W at 25 °C; 2600 W at 40 °C.
• Nominal charger output voltage: 24 V
• Box Dimensions: 10"H x 16"W x 23"L WT: 26.15 lbs
• UPC: 816882022333

Installation and selected-model ratings

Install and configure the exact selected voltage/model according to its owner’s manual. Use correctly sized and protected AC/DC wiring, required grounding and appropriate battery settings. Disconnect all AC and DC sources before installation or servicing; power can remain present from more than one source. Do not use specifications from another output-voltage family.

CombiMaster family overview videos

These videos introduce the CombiMaster range. Use the selected model’s owner’s manual for electrical ratings and installation instructions; hardware shown in the videos may differ from the selected model.
