Liniotech 12kw Off-Grid Inverter 12kw PV Input | 12kw Output | 500V VOC Input | 48V 120/240 Split Phase | All-In-One Solar Inverter

Take your solar system to the next level with the Liniotech LNT12000-48, a powerful, intelligent, and fully integrated 12kW off-grid solar inverter with dual MPPT charge controllers, built for high-performance off-grid and backup energy applications. Designed for homeowners, solar installers, and clean energy professionals, this pure sine wave hybrid inverter combines advanced digital control, smart battery charging, and exceptional reliability in one compact unit.

Key Features – High-Efficiency Off-Grid Solar Inverter with MPPT Charging

  • 12000W Continuous Power Output – Delivers stable AC power for homes, cabins, workshops, and remote sites. Peak Power Splt phase: 18000VA / Single phase:18000VA

  • 12000W Max Solar PV Input (2x MPPT) – Accepts up to 6000W per MPPT x 2, maximizing solar harvest and supporting flexible panel configurations.

  • Split Phase (120Vac (L1/N,L2/N）/240 Vac(L1/L2) ) – Clean, stable power safe for sensitive electronics and appliances.

  • 48V Battery Bank Compatible – Works seamlessly with lithium and lead-acid batteries (LFP, AGM, GEL, Flooded).

  • Stackable Design – Parallel up to 6 units for scalable systems up to 72kW.

  • Smart Monitoring via WiFi, GPRS, RS485, USB – Control and monitor your inverter remotely via Android/iOS apps.

  • Battery-Free Operation Capable – Can run directly from solar without requiring a battery (for daytime loads).

  • One-Key Factory Reset – Restore default settings in seconds.

  • Dual MPPT Tracking – Increases efficiency by tracking two separate solar input arrays for optimal performance.

  • Anti-Dust Design – Built-in dust protection ensures consistent performance in harsh environments.

  • Built-in Safety Breakers – Includes PV disconnect breaker and battery breaker for added protection.

  • High Efficiency with Low Self-Consumption – Up to 95% charge controller efficiency and <25W self-consumption.

Liniotech 12kW Hybrid Inverter – Technical Specifications

Category 12 kW (Split-Phase / Single-Phase)
Parallel Mode Function Reserved — Allow 1–6 units
Mains Mode
Nominal Input Voltage 120 (L1/N, L2/N) / 240 V (L1/L2)
Input Voltage Range (85 V ~ 140 V) ±2%
Frequency 50/60 Hz (Auto Detection)
Frequency Range 47±0.3 ~ 55±0.3 Hz (50 Hz) / 57±0.3 ~ 65±0.3 Hz (60 Hz)
Max Efficiency >95%
Transfer Time (Bypass ↔ Inverter) 10 ms (typical)
Max Bypass Overload Current 2P, 63A/63A (L1/L2)
Inverter Output
Output Waveform Pure Sine Wave
Nominal Output Power Split-phase: 12,000 VA / 12,000 W
Single-phase: 7,200 VA / 7,200 W
Power Factor 1.0
Output Voltage 120 V (L1/N, L2/N) / 240 V (L1/L2)
Output Frequency 50 Hz ±0.3 Hz / 60 Hz ±0.3 Hz
Max Efficiency >91%
Overload Protection 110%–125% ±5%; >125% ±5%
Peak Power Split-phase: 18,000 VA
Single-phase: 18,000 VA
Loaded Motor Capacity 6 HP
Battery Input
Nominal Battery Voltage 48 V (Min. start: 44 V)
Battery Voltage Range 40–60 V ±0.6 V (fully adjustable)
Power-Saving Mode Load ≤25 W
AC Charging
Battery Type Lead-acid or Lithium
Max AC Charge Current 160 A
Charge Voltage Range 40–60 V
Solar Charging (MPPT)
Max PV Open-Circuit Voltage 500 V
Operating Voltage Range 90–500 V
MPPT Voltage Range 90–450 V
Battery Voltage Range 40–60 V
Max PV Input (Power/Current) 6000 W ×2 / 22 A ×2
Charge Current Range 0–220 A
Max Hybrid Charge Current 0–220 A (PV + AC)
Certifications
Safety UL 1741
EMC FCC Part 15, Class B
Environmental
Operating Temperature -10°C to 55°C (>45°C derating)
Storage Temperature -25°C to 60°C
Humidity 5%–95% (Conformal Coating)
Noise ≤60 dB
Cooling Forced-air, dual intelligent fans

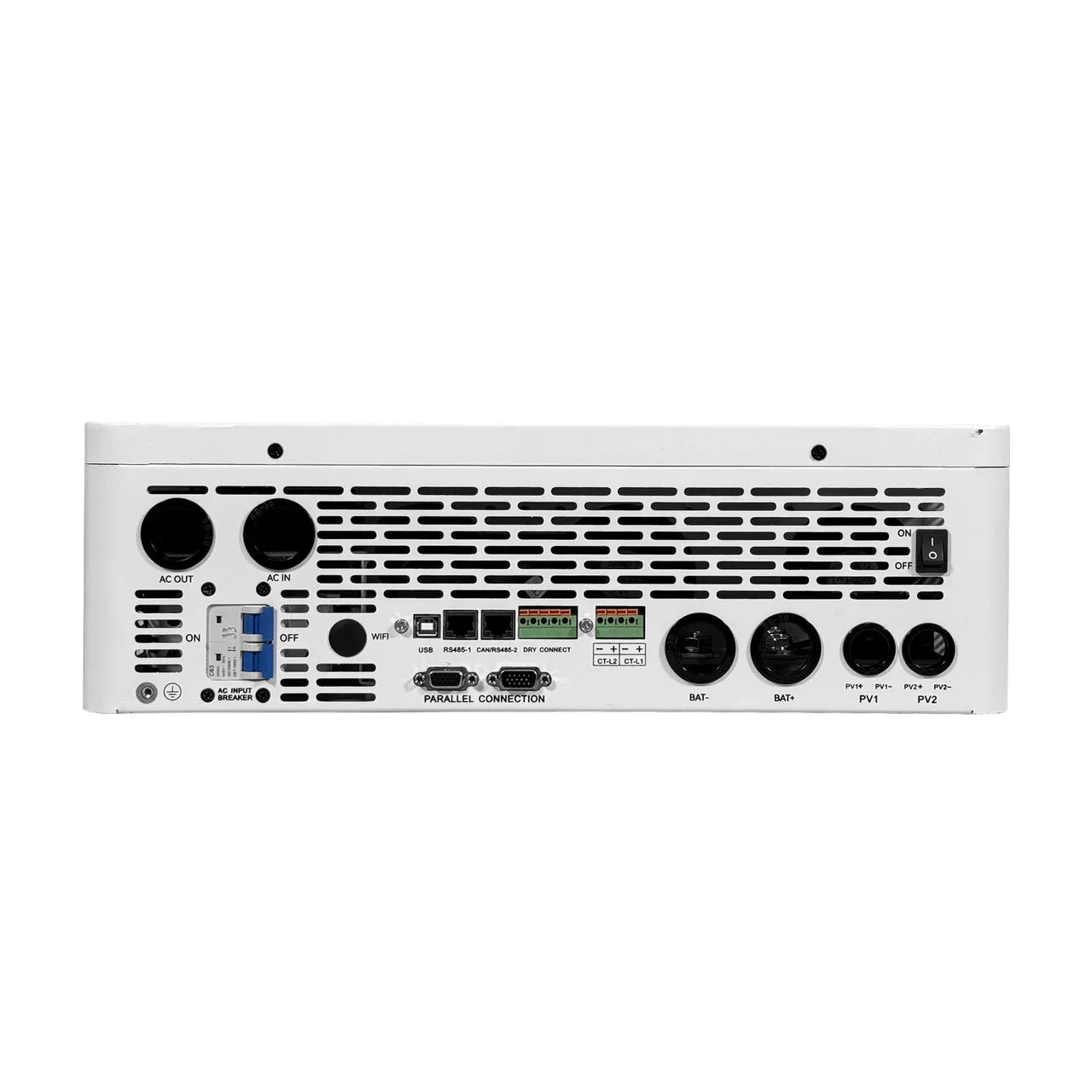

Communication USB / RS485 / WiFi / GPRS / Dry Contact
Mechanical
Dimensions (L × W × D) 24.41" × 17.72" × 5.20"
Weight (Net) 53 lbs

Smart MPPT Solar Charge Controller – Liniotech MPPT100-48HV Integrated

This inverter features dual integrated MPPT charge controllers, enabling fast and efficient battery charging even under varied sunlight conditions. Ideal for maximizing solar harvest without needing external combiner boxes.

MPPT Highlights:

  • ✅ Max PV Array Power: 12000W (6000W x 2)

  • ✅ Max PV VOC: 500VDC

  • ✅ Max Charging Current: 160A (Adjustable)

  • ✅ RS485 BMS Communication – Compatible with Liniotech & 3rd party batteries

  • ✅ High-Speed Battery Charging: Charge a 5.12kWh Liniotech battery in ~2 hours @ 80A

  • ✅ Built-In Safety Breakers: PV Disconnect & Battery Breaker

Ideal for Off-Grid Living, Solar Backup, RV Systems & Sustainable Energy Projects

The Liniotech 12kW all-in-one inverter is the ultimate solution for:

  • ✅ Residential solar systems

  • ✅ Off-grid cabins & tiny homes

  • ✅ Emergency solar backup systems

  • ✅ Mobile solar setups (RVs, vans)

  • ✅ Remote work sites and energy storage projects
