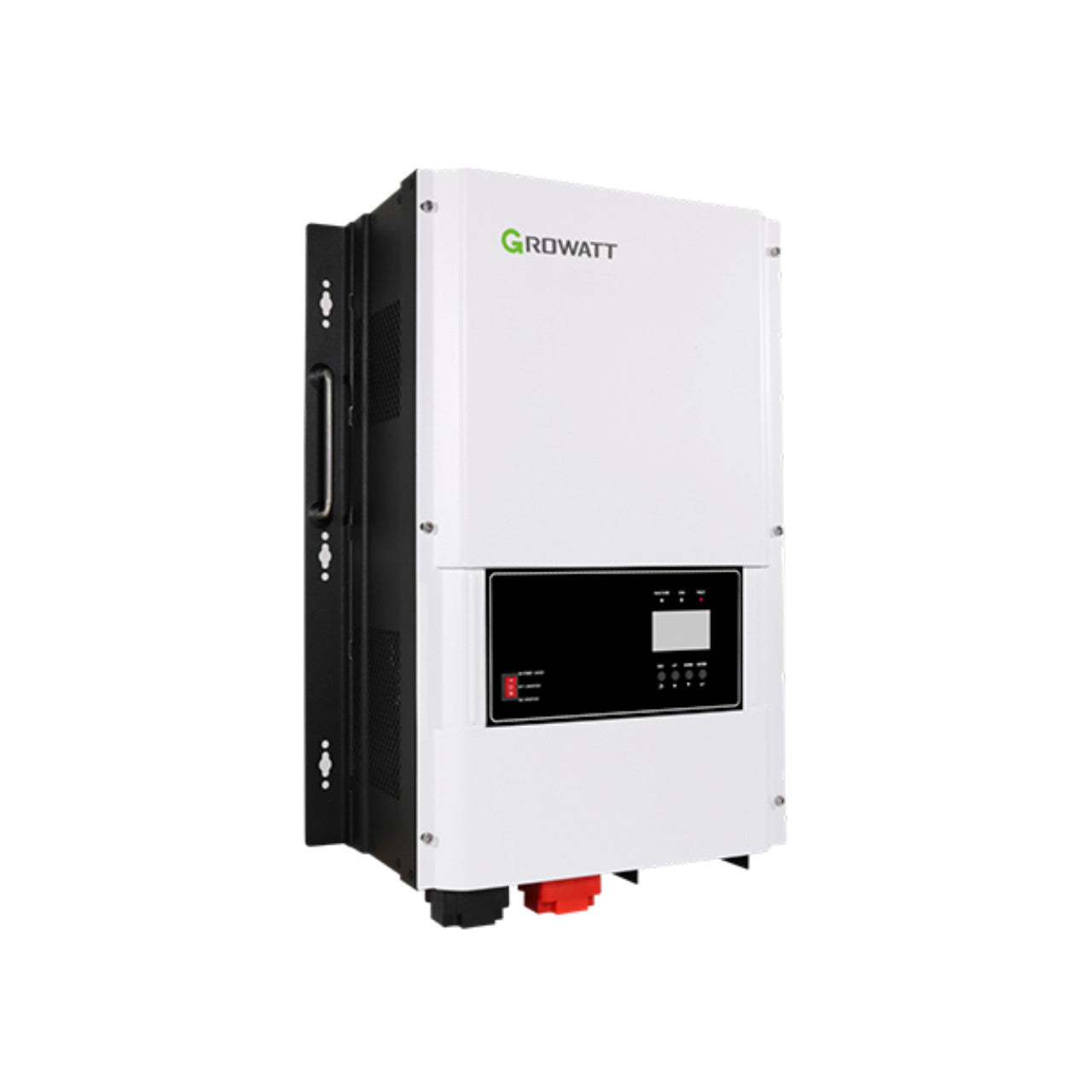

Growatt 12kW Split Phase Off-Grid Inverter UL 1741 Certified - SPF
Growatt 12kW Split Phase Off-Grid Inverter UL 1741 Certified - SPF

Growatt 12kW Split Phase Off-Grid Inverter UL 1741 Certified - SPF

Price: $2,596.99 USD
List Price:
Price: $2,596.99 USD
View Cart

Bulk Discount

Buy 3 or more items and receive 5% off this order! Discount will be automatically applied at checkout.

Commercial Pricing

Email us or call/text 814-470-8368 for your custom quote!

Free Shipping

Free and discreet shipping in the lower 48. Ships in 1 to 3 business days!

Interest-Free Financing

Checkout and pay with Affirm, PayPal Pay in 4, Sezzle or Shop Pay Installments.

Estimated Arrival: Between Jun 07 and Jun 18.

SAVE $10 on orders over $200 | Use Coupon Code: KEEP10

00 Days
00 Hours
00 Minutes
00 Seconds

Description
  • Split-Phase 120/240V Output: - Ideal for North American residential and light commercial loads

  • Low-Frequency Inverter Design: - Built-in pure copper transformer for high surge power and long service life

  • Integrated MPPT Solar Charge Controller: - Maximizes solar energy harvest with up to 97.5% efficiency

  • High Surge Capability: - Supports heavy startup loads such as pumps, compressors, HVAC systems, and power tools

  • Configurable Power Priority: - Select grid or solar as the primary energy source

  • Fast Transfer Time (10ms): - Seamless switching for sensitive electronics

  • Optional Wi-Fi / GPRS Monitoring: - Remote system monitoring and performance tracking

  • Battery Compatibility: - Works with both lithium-ion and lead-acid battery banks

  • Battery Voltage: 48VDC

  • Battery Type: Lithium-ion or Lead-acid

  • Nominal Voltage: 120/240VAC (split phase)

  • Output Frequency: 50Hz / 60Hz (auto-sensing)

  • Output Waveform: Pure Sine Wave

  • Maximum PV Array Power: up to 7kW

  • MPPT Operating Voltage Range: 60-245VDC

  • Maximum PV Charge Current: up to 120A

  • Maximum PV Open-Circuit Voltage: 250VDC

  • Maximum Efficiency: greater than 97.5%

  • Peak Inverter Efficiency: greater than 85%

  • Enclosure Protection Rating: IP20 (indoor use)

  • Operating Temperature Range: 0 degrees C to 45 degrees C

  • Off-grid residential homes and cabins

  • Whole-house solar battery backup systems

  • Agricultural and farm power systems

  • Remote commercial and industrial sites

  • Workshops and equipment power backup
    • Specifications
  • Battery System:
  • Battery System: Battery Voltage: 48VDC
  • Battery Type: Lithium-ion or Lead-acid
  • AC Output:
  • AC Output: Nominal Voltage: 120/240VAC (split phase)
  • Output Frequency: 50Hz / 60Hz (auto-sensing)
  • Output Waveform: Pure Sine Wave
  • Solar Charging:
  • Solar Charging: Maximum PV Array Power: up to 7kW
  • MPPT Operating Voltage Range: 60-245VDC
  • Maximum PV Charge Current: up to 120A
  • Maximum PV Open-Circuit Voltage: 250VDC
  • Efficiency and Protection:
  • Efficiency and Protection: Maximum Efficiency: greater than 97.5%
  • Peak Inverter Efficiency: greater than 85%
  • Enclosure Protection Rating: IP20 (indoor use)
    • Data Sheets
  • Download the Growatt 12 K W Split Phase Off Grid Inverter UL 1741 Certificate | SPF 12000 KT DVM US MPV 202212: here
  • Download the user manual: here
  • Download the Growatt 12 K W Split Phase Off Grid Inverter UL 1741 Certificate | SPF 12000 KT DVM US MPV 1: here
