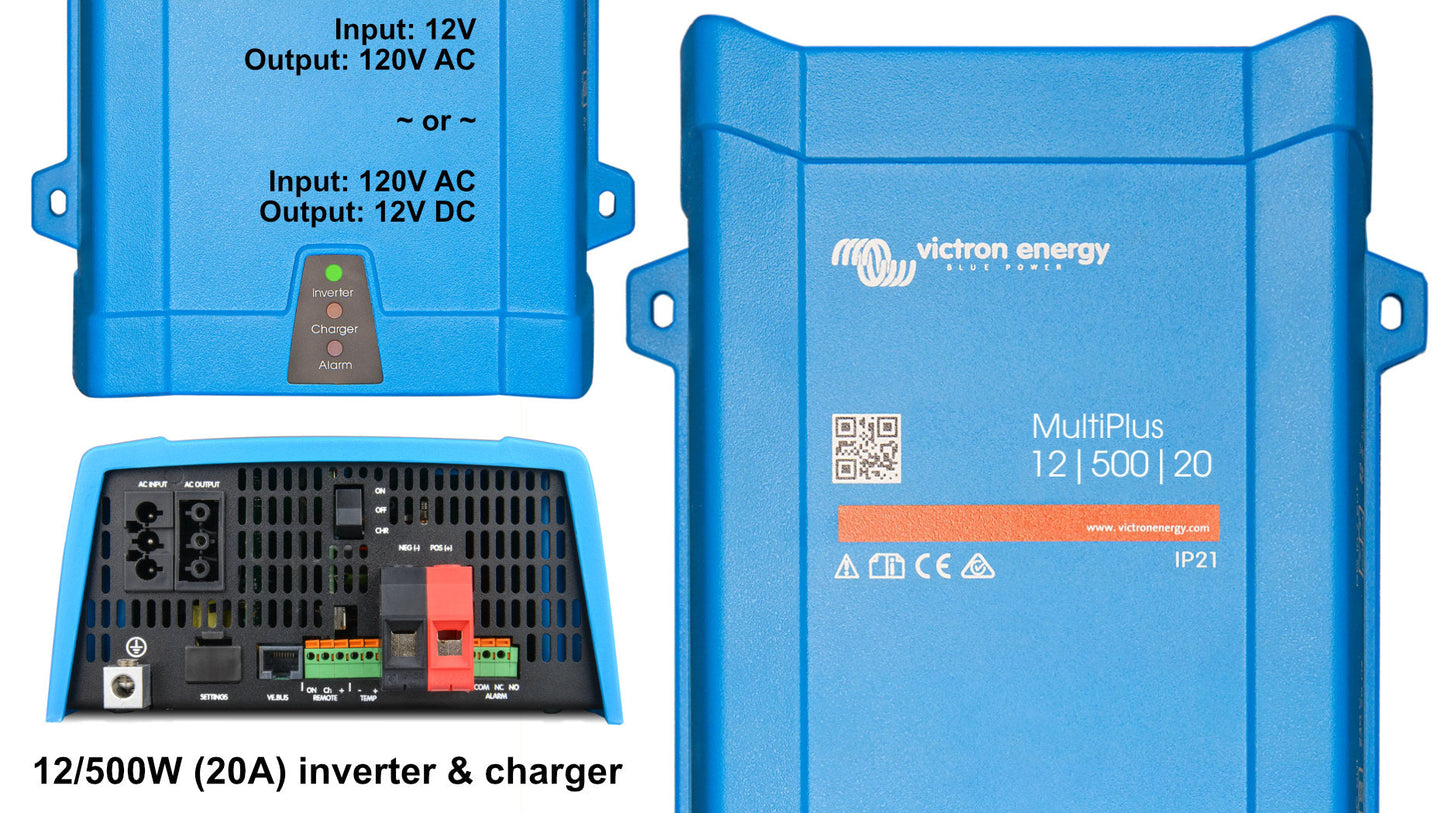

Name: Full Battery Victron 120V Inverter & Charger - 12/24/48V; 500 - 5000
Brand: Full Battery
SKU: sku-43087468888147
Price: 331.99 USD
Availability: InStock

Full Battery Victron 120V Inverter & Charger - 12/24/48V; 500 - 5000

Full Battery Victron 120V Inverter & Charger - 12/24/48V; 500 - 5000

Regular price: Price: $331.99 USD
Regular price: List Price:
Sale price: Price: $331.99 USD
Unit price: per

Product variants

Quantity

Bulk Discount

Buy 3 or more items and receive 5% off this order! Discount will be automatically applied at checkout.

Commercial Pricing

Email us or call/text 814-470-8368 for your custom quote!

Free Shipping

Free and discreet shipping in the lower 48. Ships in 1 to 3 business days!

Interest-Free Financing

Checkout and pay with Affirm, PayPal Pay in 4, Sezzle or Shop Pay Installments.

Estimated Arrival: Between Jun 07 and Jun 18.

SAVE $10 on orders over $200 | Use Coupon Code: KEEP10

00 Days

00 Hours

00 Minutes

00 Seconds

Description

Works in reverse as a charger; supports failover, split phase (using 2 units), and more.

Victron brand inverters in sizes from 500 watts up to 5000. Designed in the Netherlands, these quality inverters output pure sine wave power, feature highest quality case construction, and are reliability and burn-in tested for a lifetime power supply for all your 120 volt devices.

If you don't need an inverter, it is also used in reverse as a high quality high amperage charger - for example charging boat or camper batteries from shore power.

Begin by selecting the input DC voltage you are working with, then select the corresponding size inverter (sizing in watts).

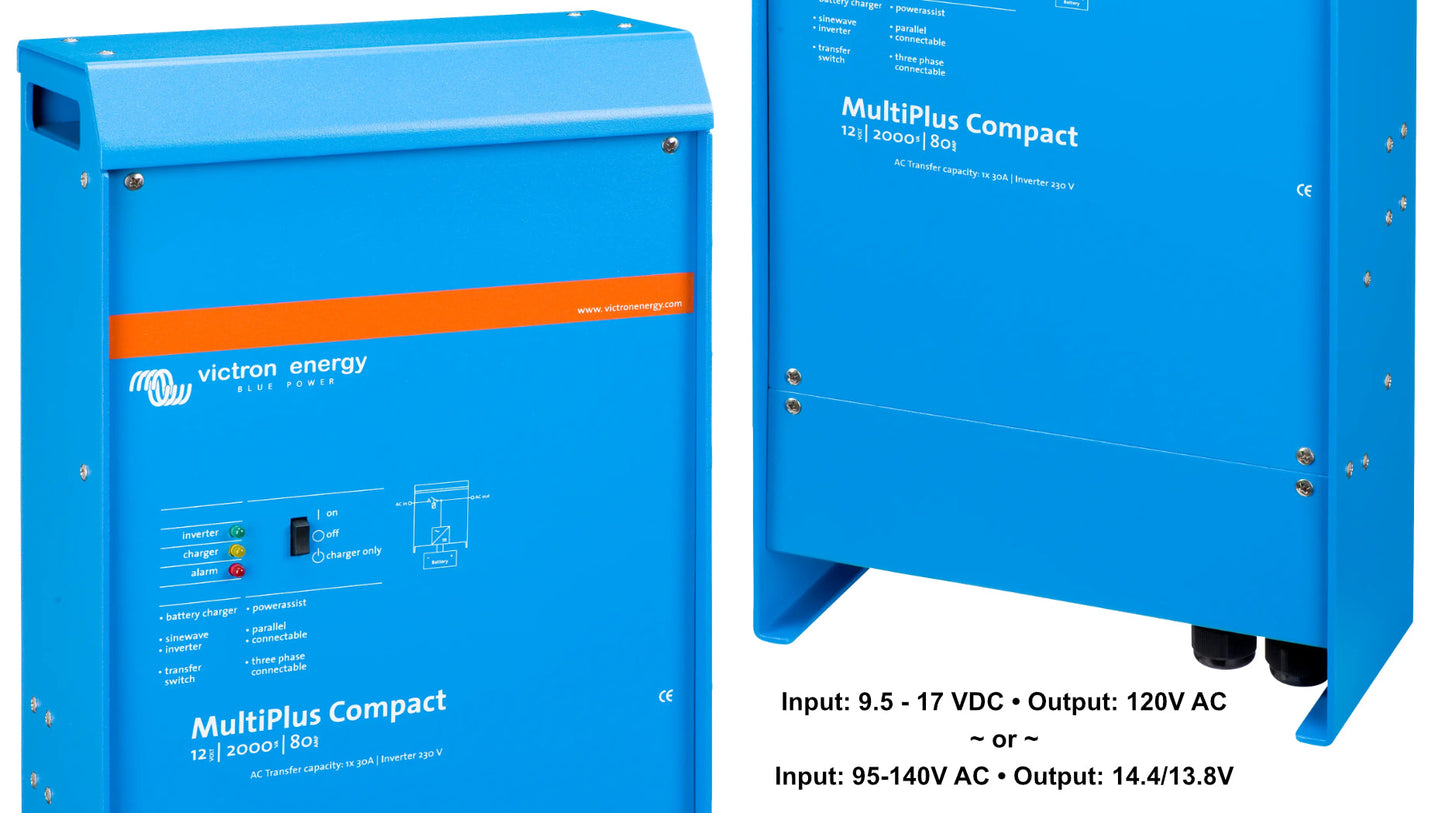

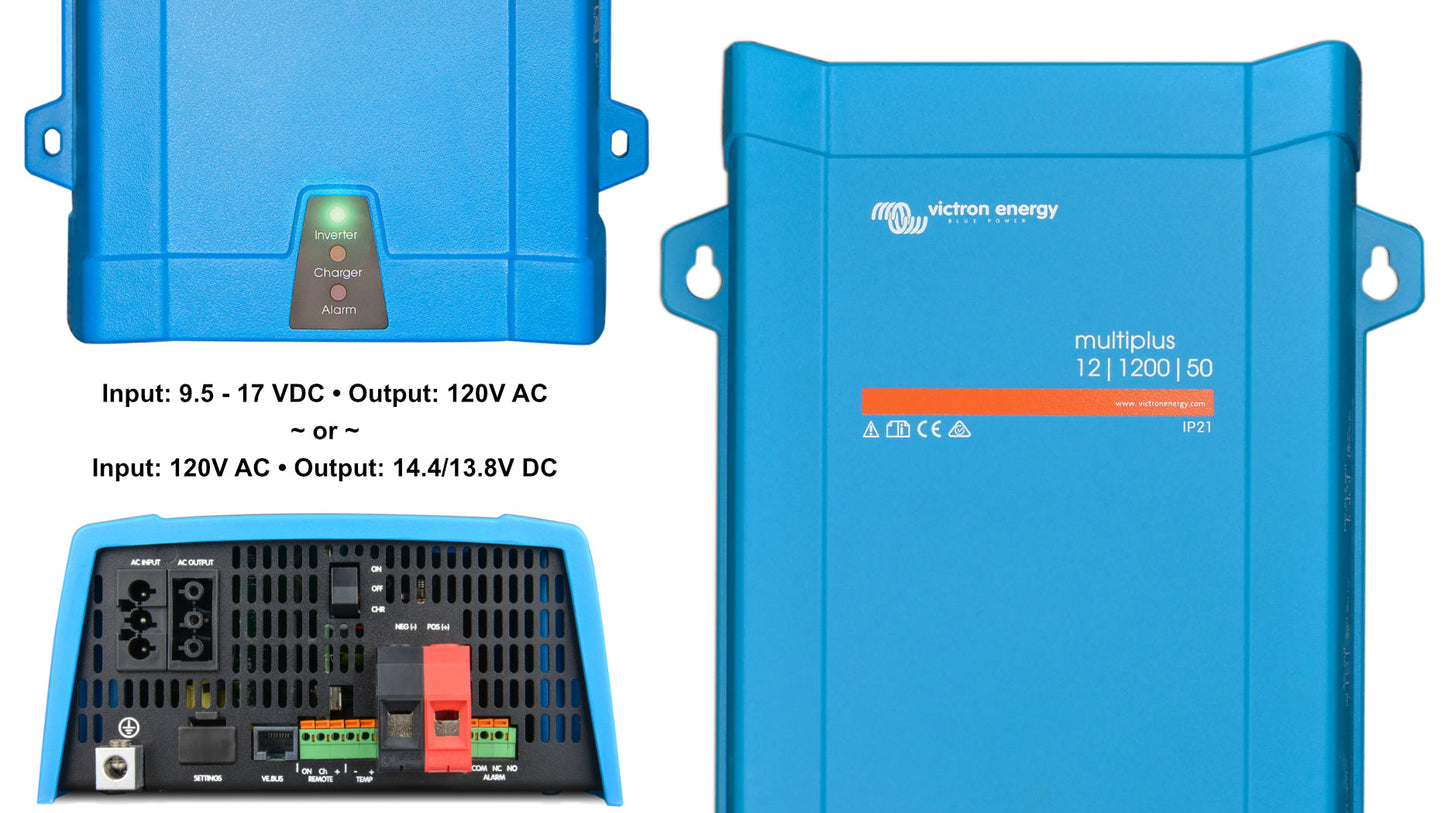

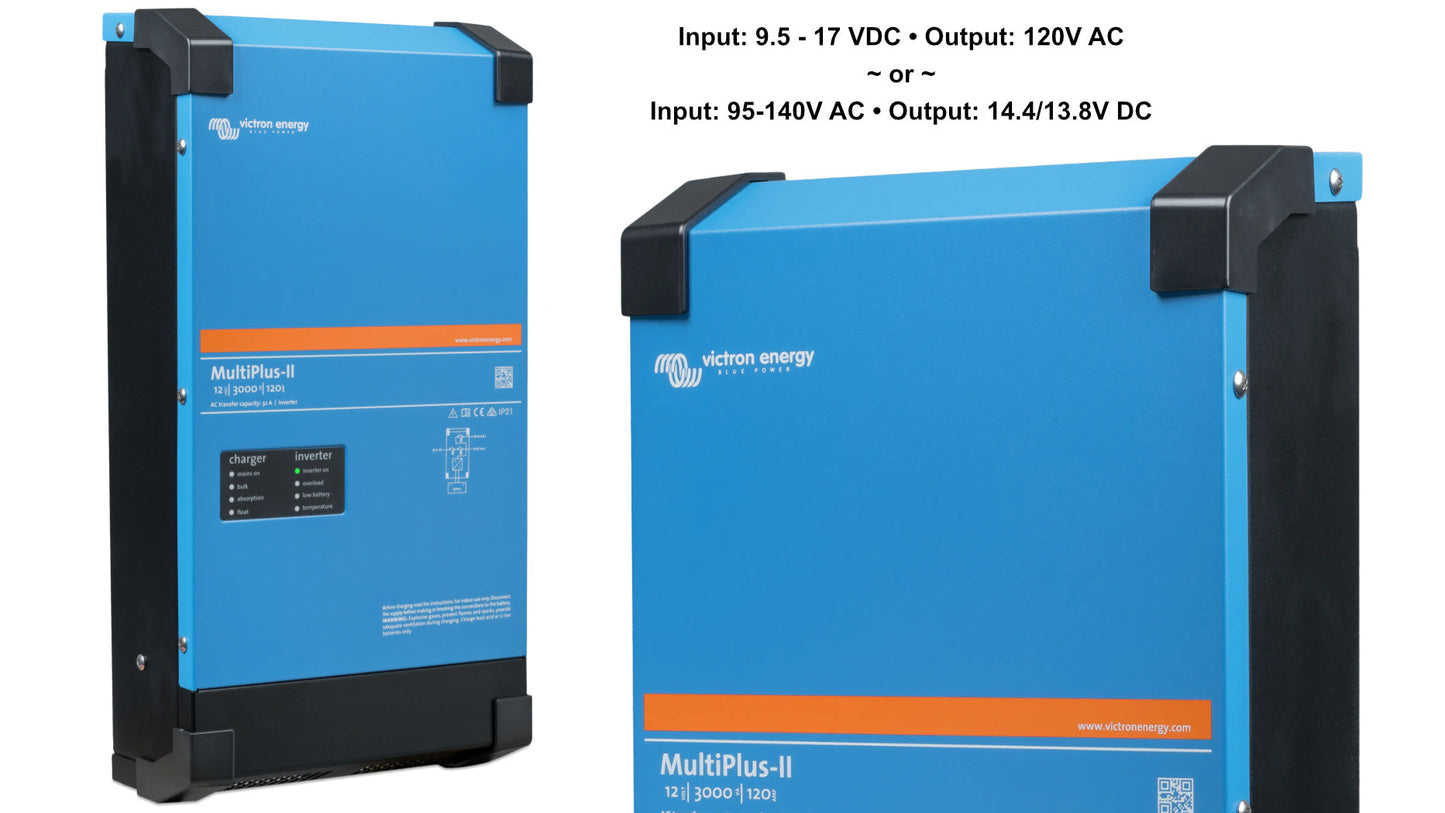

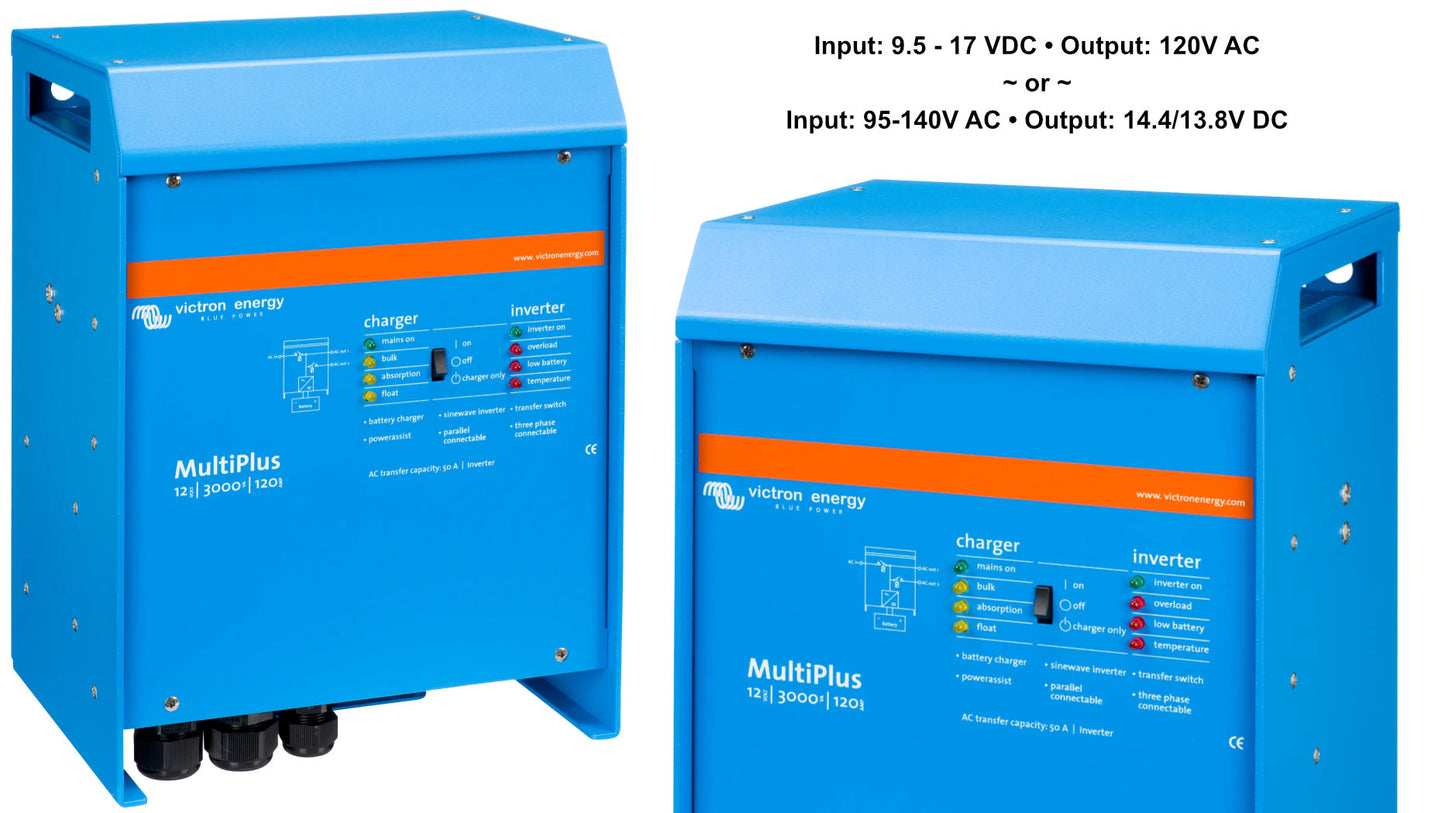

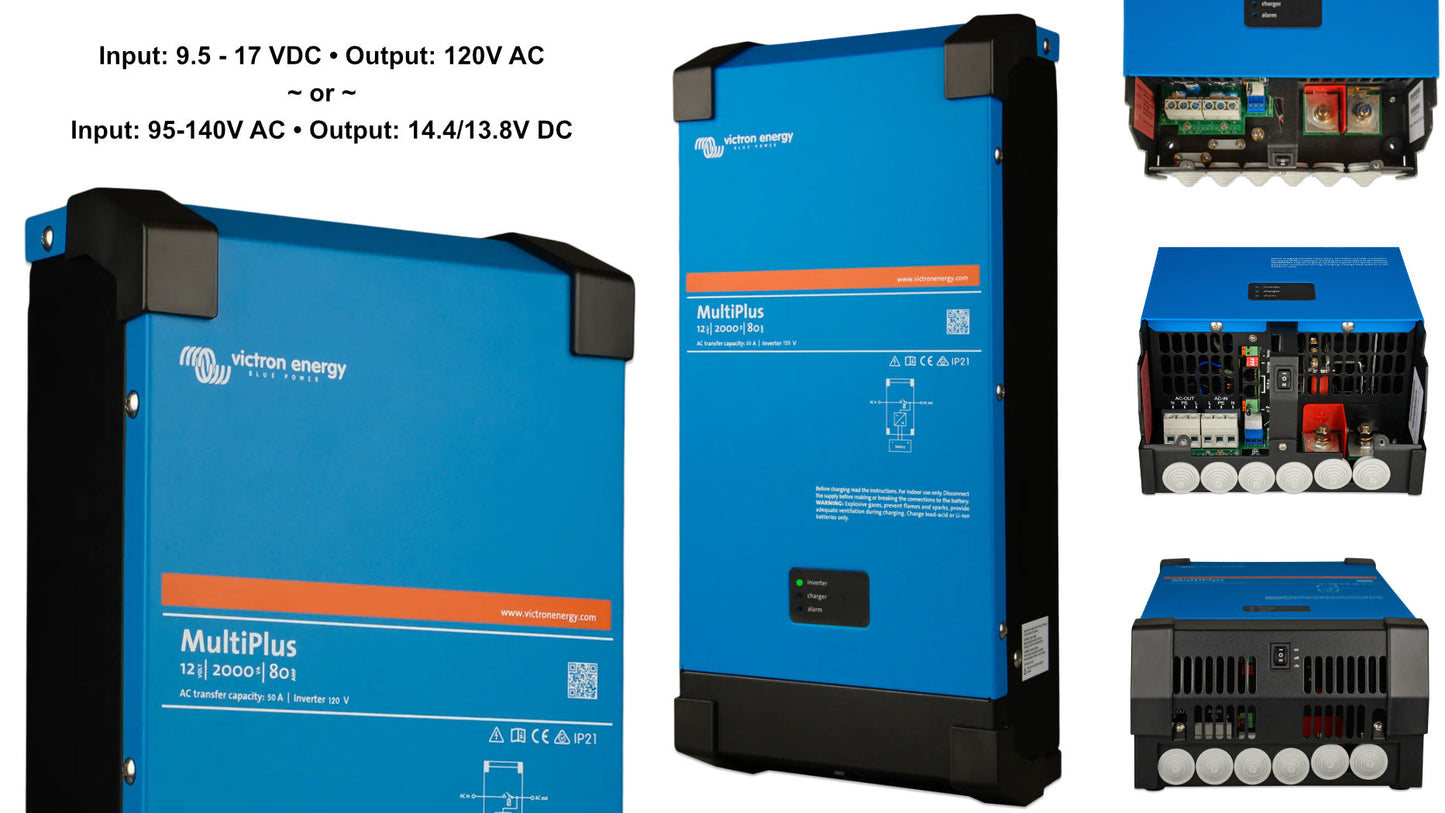

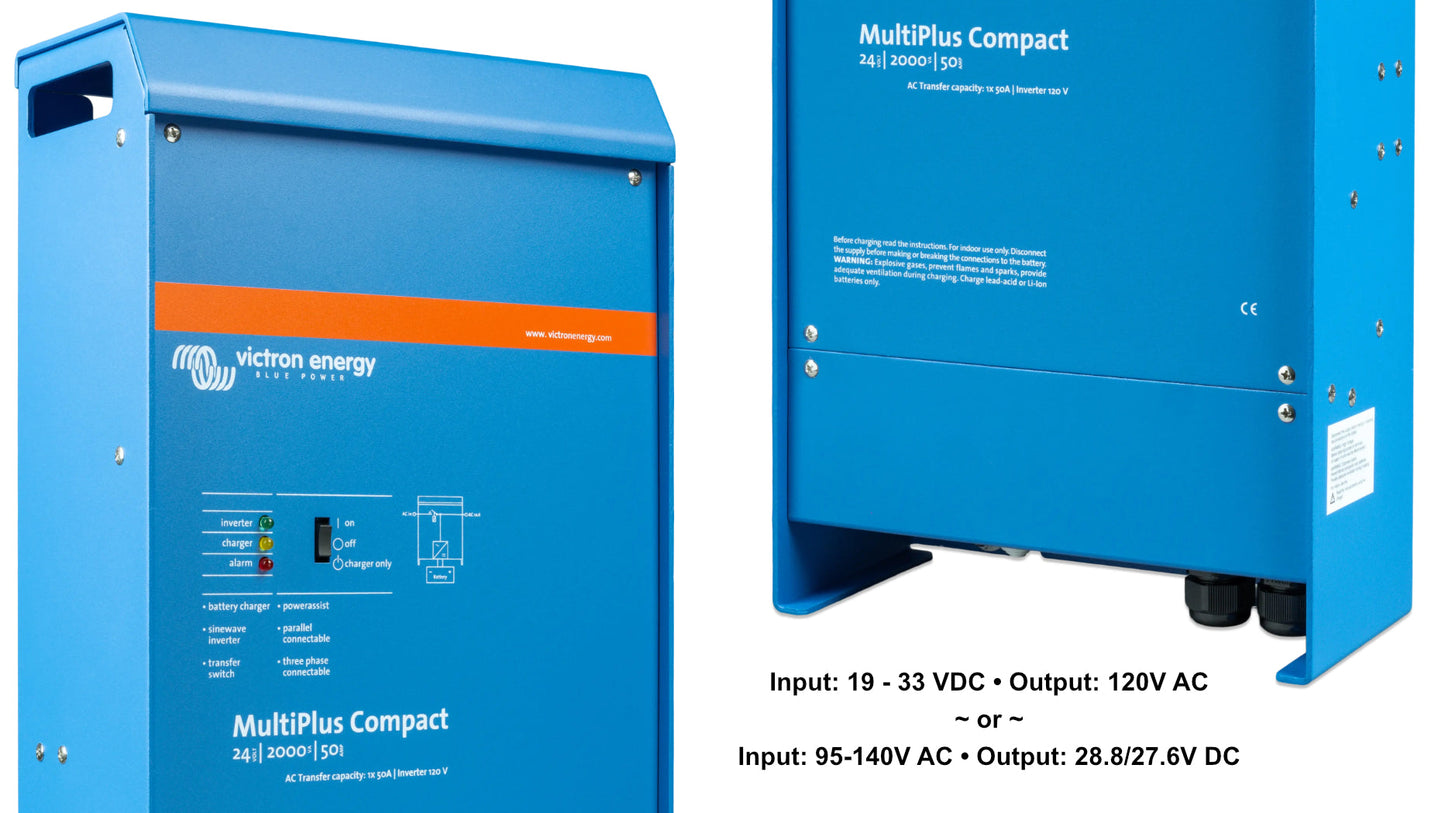

Multifunctional, with intelligent power management: The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger with adaptive charge technology, and a high- speed AC transfer switch in a single compact enclosure. In addition to these primary functions, the MultiPlus has several advanced features, as outlined below.

Parallel operation and three-phase capability: Up to six MultiPlus units can operate in parallel to achieve higher power output. In addition to parallel connection, three units can be configured for three-phase output.

PowerControl - Dealing with limited generator, shore side or grid power: A maximum generator or shore current can be set with the Multi Control Panel. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.

PowerAssist - Boosting the capacity of shore or generator power: This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is often required only for a limited period, the MultiPlus will ensure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

Four-stage adaptive charger and dual bank battery charging for Lithium, Sealed, AGM, Gel and Flooded Batteries

High start-up power: Essential to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.

Search Mode: When Search Mode is 'on', the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode, the MultiPlus, when operating in inverter mode, is switched off in case of no load or very low load and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.

Programmable relay: By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre- alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).

Remote on / off / charger on

Three pole terminal.

On-site system configuring, monitoring and control

After installation, the MultiPlus is ready to go. Some basic settings can be changed through DIP switches: remote switch, battery charge voltage and search mode. Use the VictronConnect app or VE-Configure together with the Interface MK3-USB for in-depth configuration.

Remote configuring and monitoring: Install a Cerbo GX, Ekrano GX or other GX product to connect to the internet. When connected to the internet, systems can be accessed remotely, and settings can be changed.
