Epoch BB72105A-Kit 70.4V (72V) 105Ah LiFePO4 Golf Cart Battery Conversion Kit

The Epoch BB72105A-Kit combines a 70.4V nominal (72V class), 105Ah LiFePO4 battery with a 72V 15A lithium charger, a battery gauge and a 12V converter. It is designed for compatible 72V golf carts, utility vehicles and custom conversions, with Bluetooth monitoring and over-the-air firmware updates through the Epoch Li-Ion app for iOS and Android.

Features and applications

• 250A maximum continuous discharge, 500A for up to 15 seconds and 1,000A for up to 2 seconds.
• 100A maximum continuous charge; up to 500A for 15 seconds of regenerative braking current.
• 3,500+ cycle life and an 11-year limited manufacturer warranty.
• IP67 enclosure: dust-tight and rated for temporary immersion to 1m for 30 minutes.
• The gauge and app display charge, voltage, current, temperature and status; firmware updates are available over the air.
• Parallel expansion to two matched batteries is supported; do not connect this 72V-class battery in series.

Safe installation and operation

Use the included charger and verify any alternate charging equipment against this battery’s model-specific settings. Lead-acid chargers must not be used unless specifically approved and programmed for this battery. Do not mix with lead-acid batteries, wire batteries in series or charge below 0°C. Check tray fitment, terminal clearance, cable sizing, fusing and load requirements before installation. This is a deep-cycle battery, not a cranking battery.

Specifications

Charging settings

Data Sheet

• BB72105A-Kit user manual
• BB72105A-Kit technical data sheet

Kit Contents

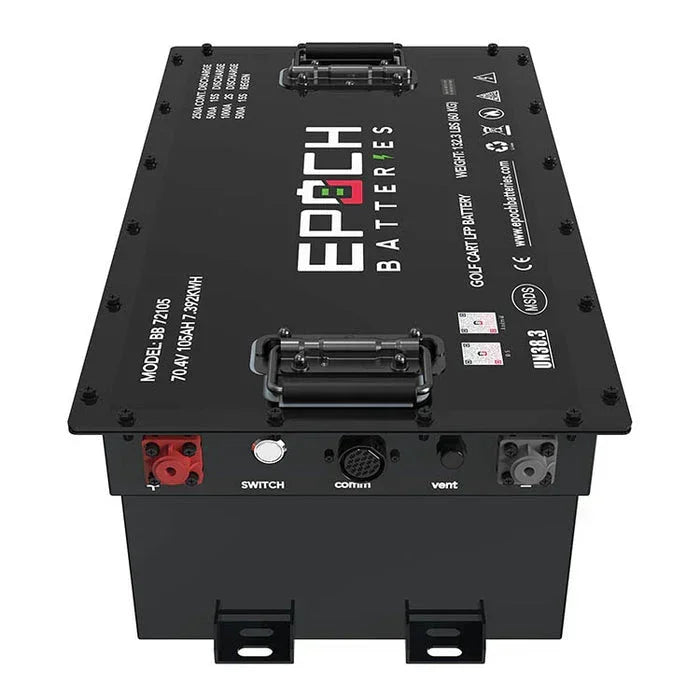

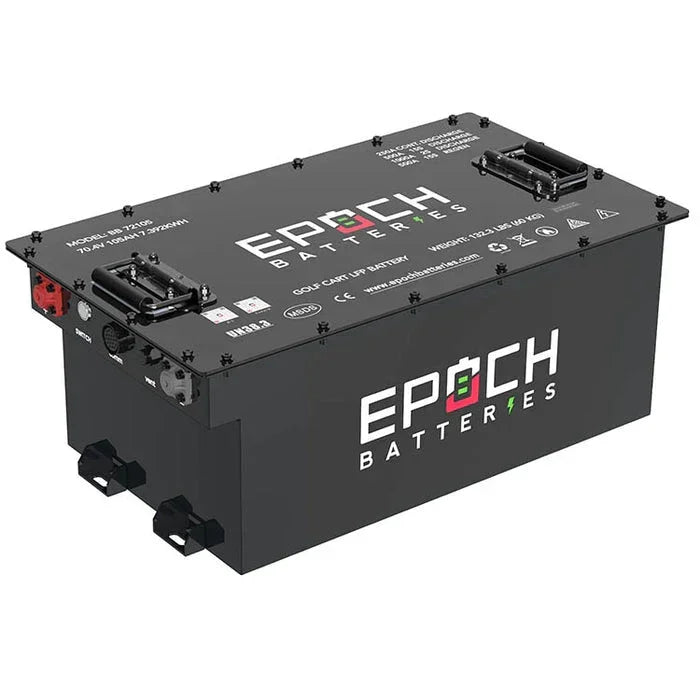

• BB72105A-Kit 70.4V 105Ah LiFePO4 battery

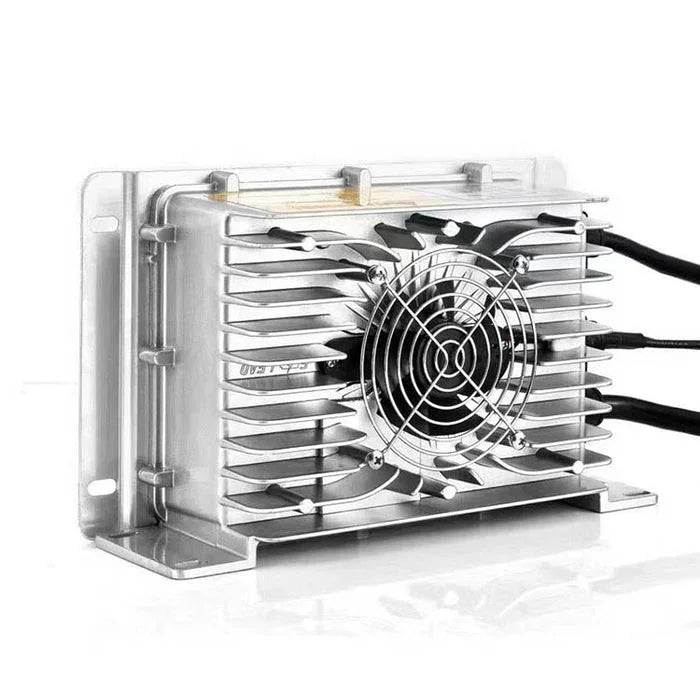

• 72V 15A lithium charger

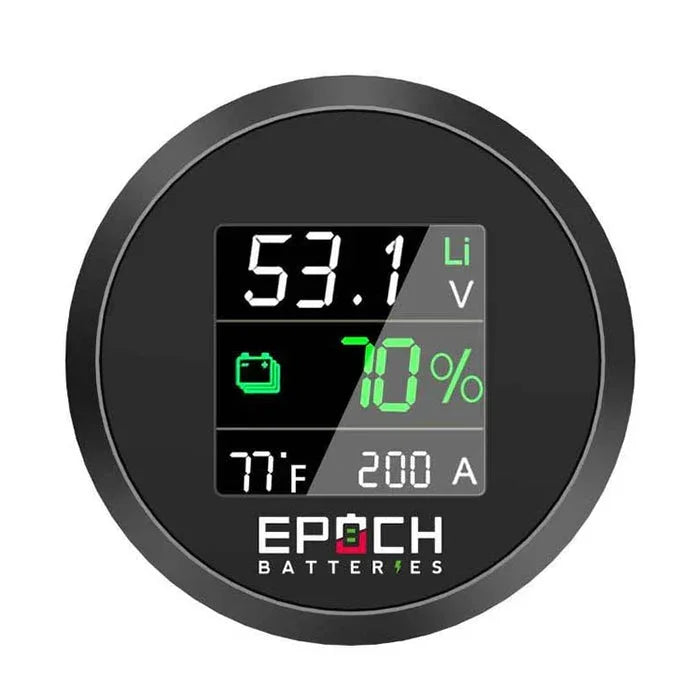

• Battery gauge
• 12V converter
