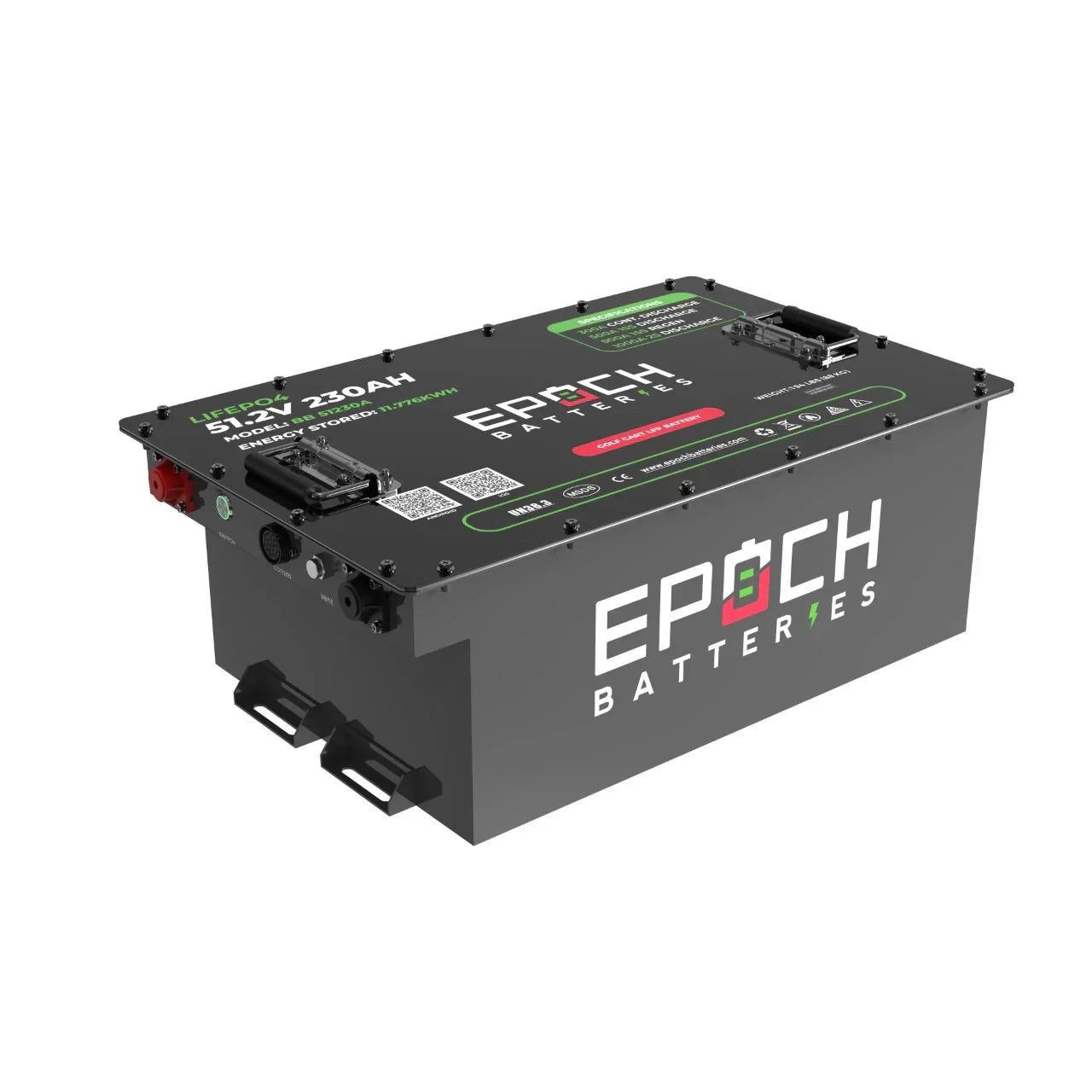

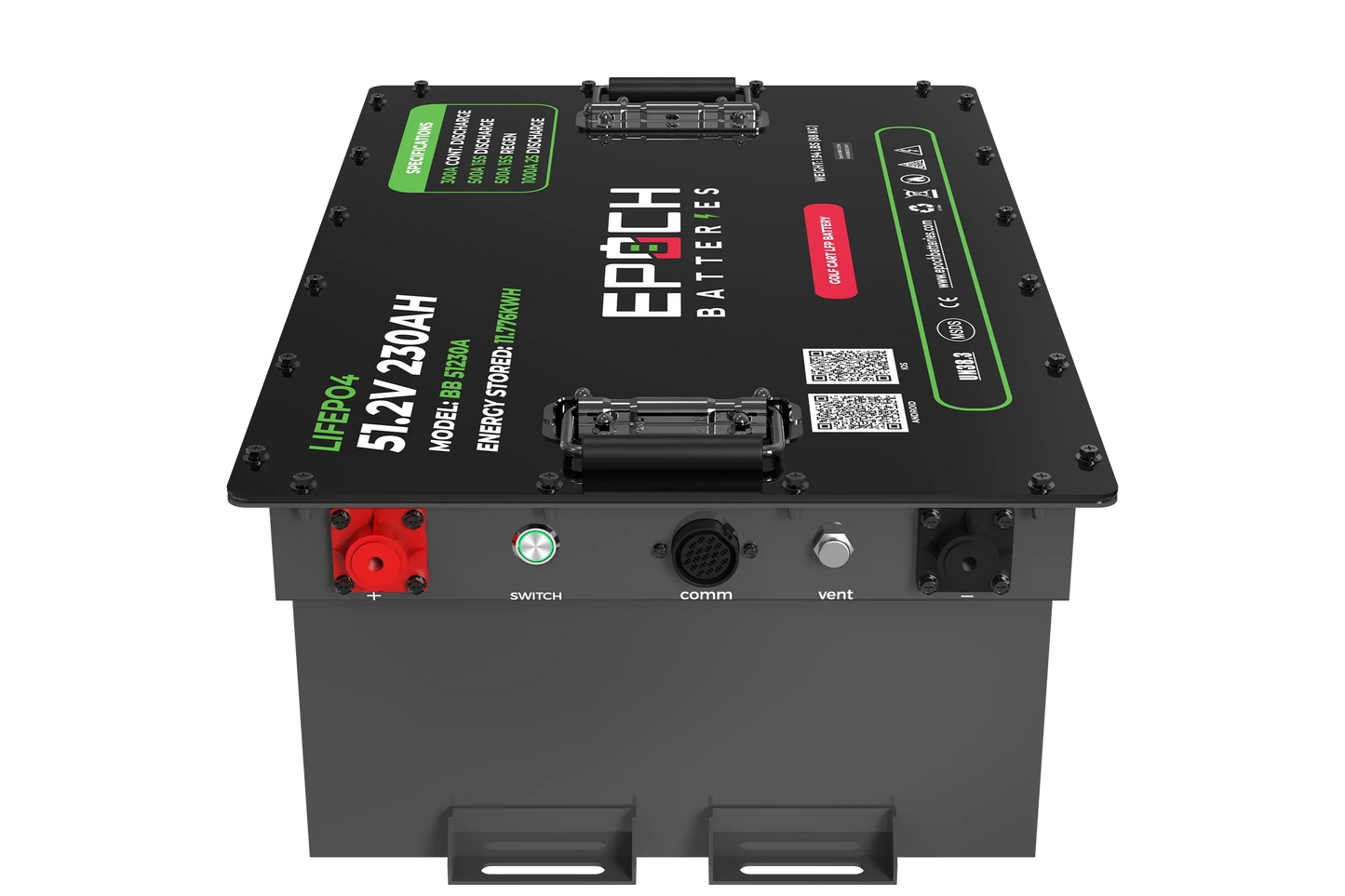

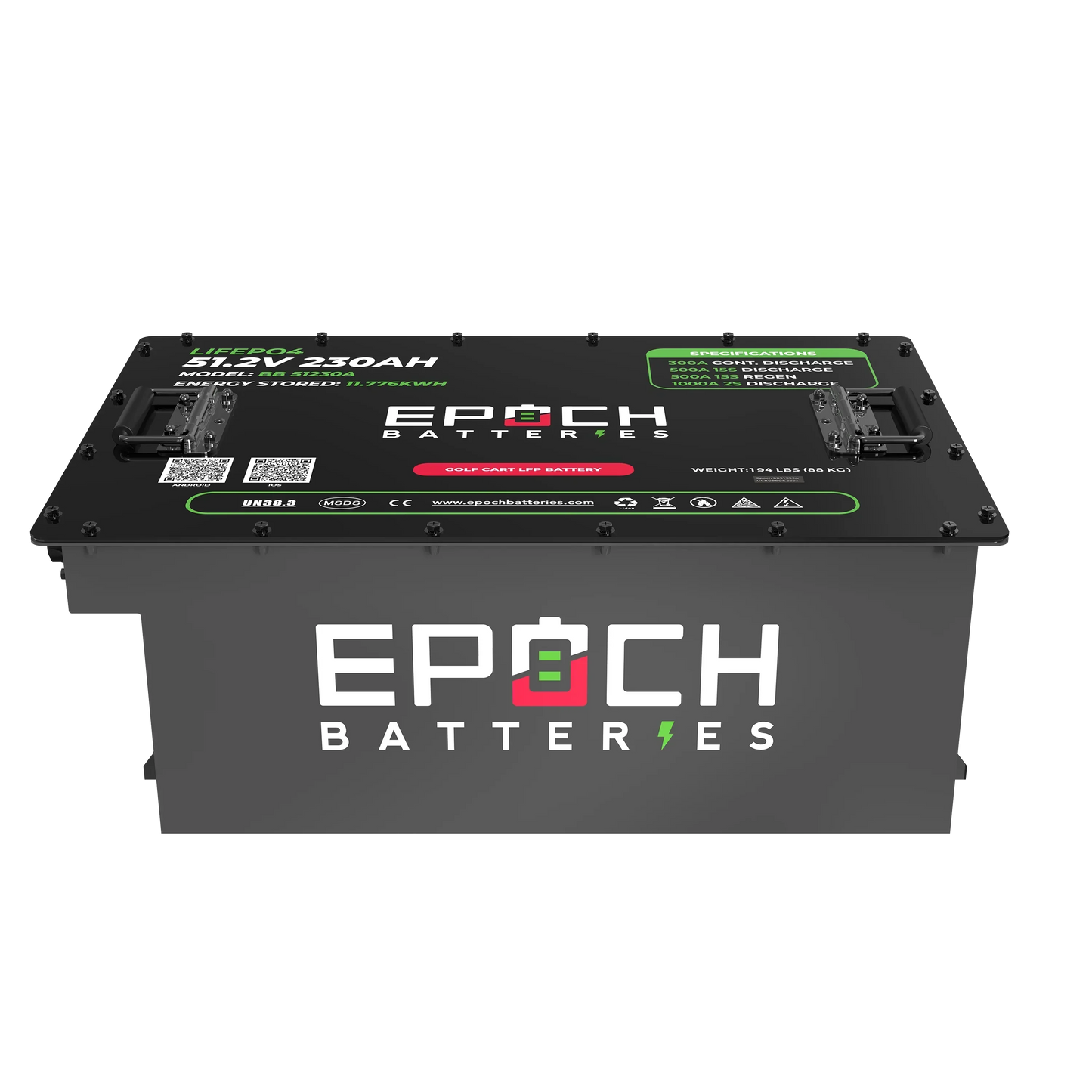

Epoch Batteries 48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit

  • Complete Lithium Conversion Kit

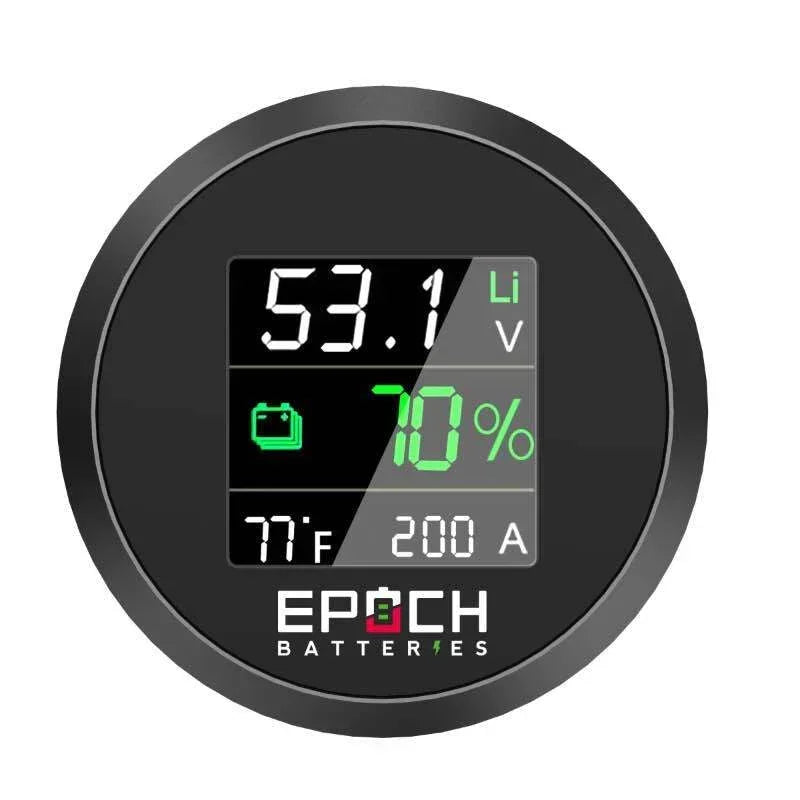

  • 48V 22A Lithium Charger, Battery Gauge, 12V Converter INCLUDED

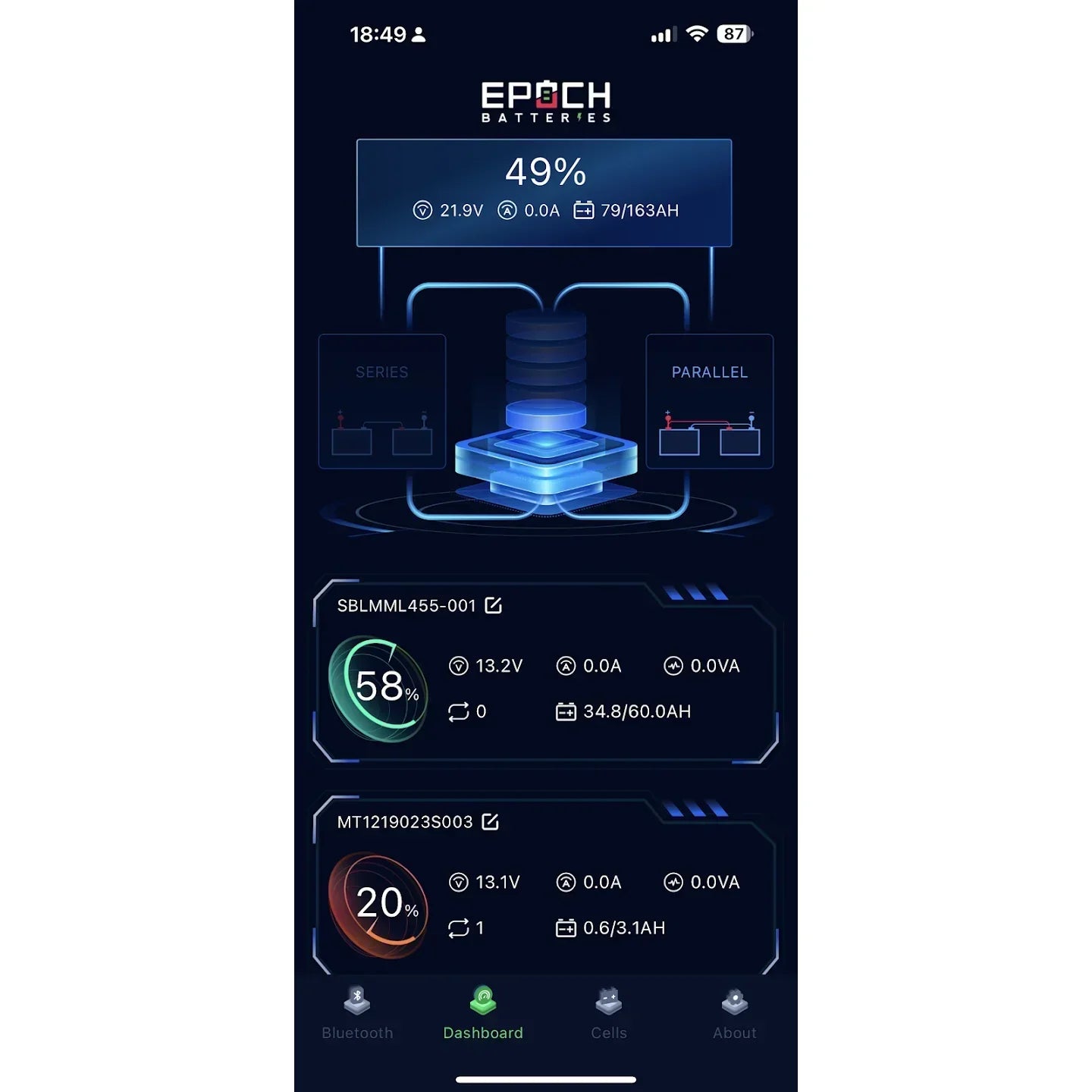

  • Bluetooth App (iOS & Android)
  • Over the air firmware updates available
  • 300A Max Continuous Discharge
  • 500A @ 15s, 1,000A @ 2s Peak Discharge
  • 230A Max Continuous Charge
  • 500A @ 15s Peak Charge/Regen
  • 4,000 Cycle Life
  • 11 Year Warranty

Configuration

Cell Configuration: 1P16S
Chemistry: LiFePO4

 Current

Ah Capacity: 230Ah
Max Continuous Discharge Amps: 300A
Max Charge Current Amps: 230A Continuous, 500A @ 15s
Max Discharge Peak Current Amps: 500A @ 15s, 1,000A @ 2s
Series | Parallel: Max (2) in Parallel

 Voltage

Voltage: 51.2V
Max Charge Voltage: 58.4V
Operating Voltage Range: 40 - 58.4V

 Temperature

Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight: 196 (LBS)
Dimensions
Length: 23.5 (inches)
Width: 14.4 (inches)
Height: 9.9 (inches)
