Description

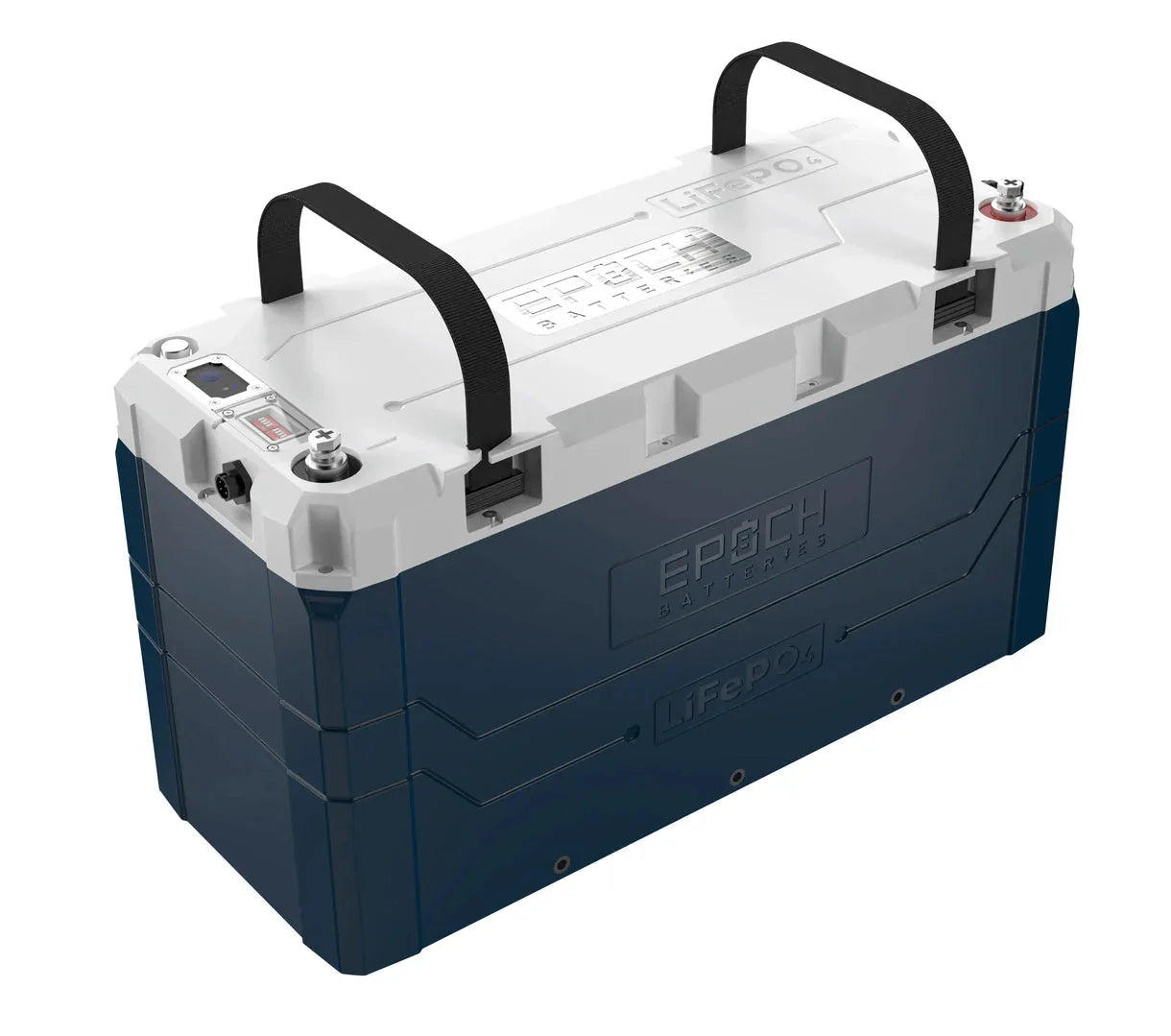

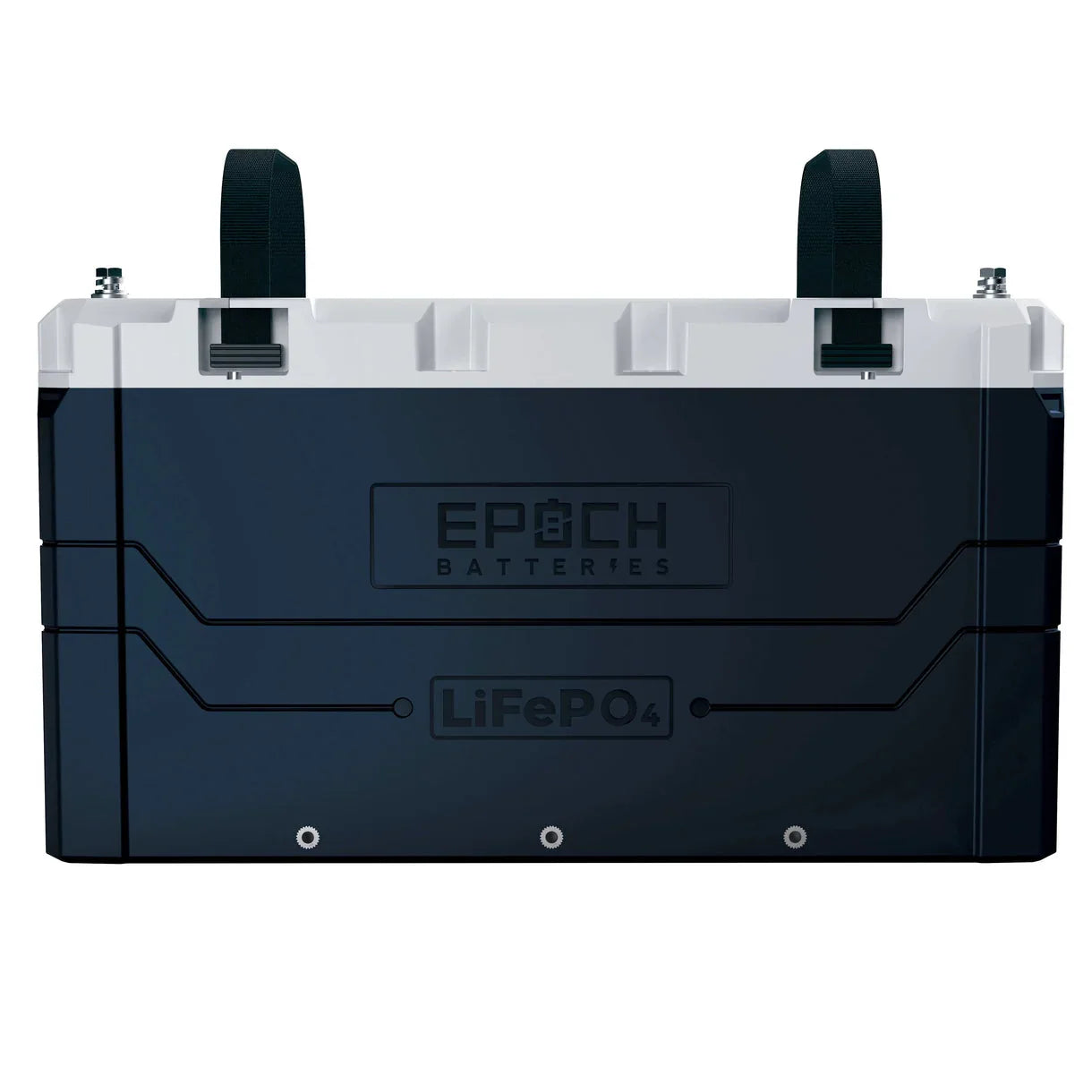

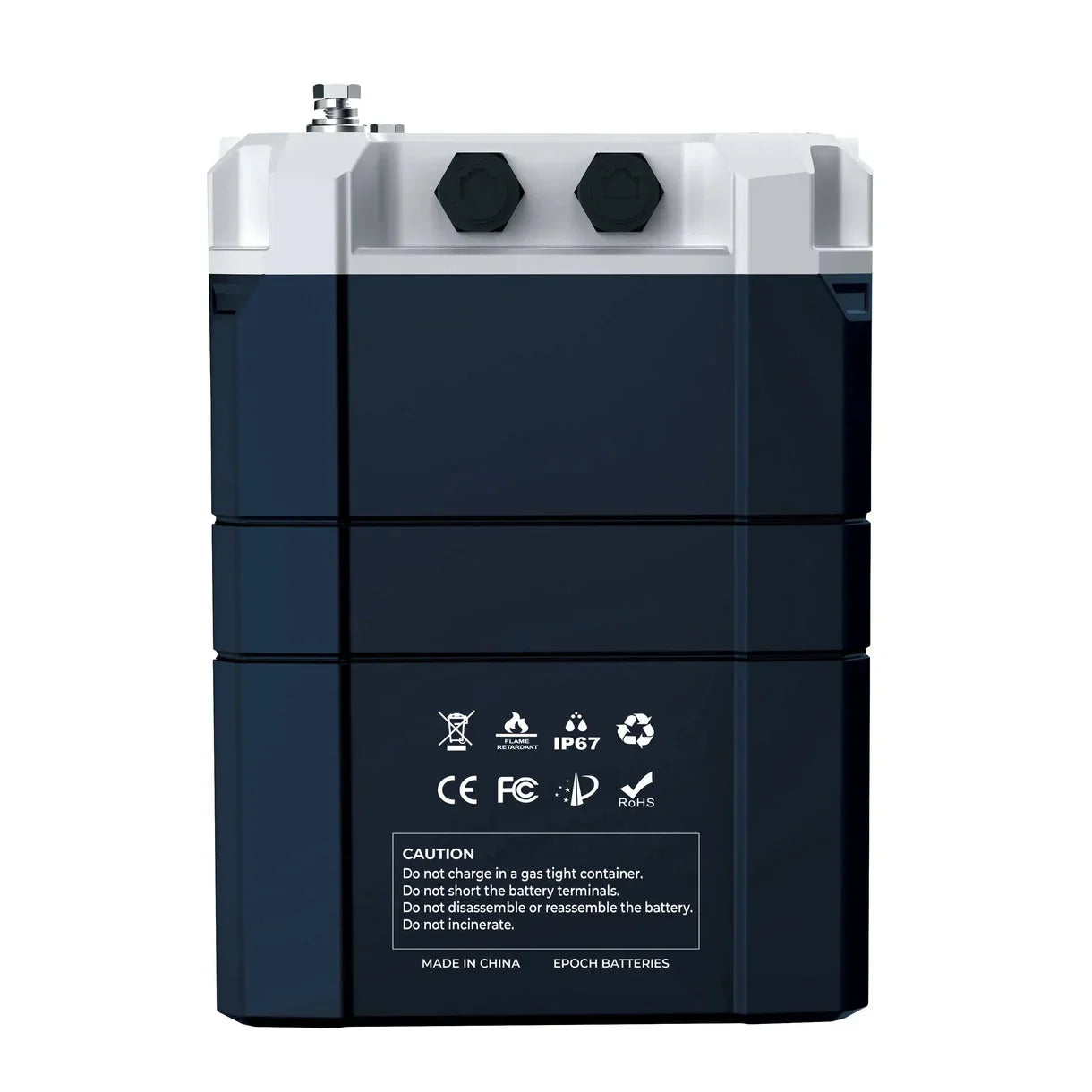

Epoch C48100A 48V 100Ah V2 Elite Series Heated LiFePO4 Battery

The Epoch C48100A is a 51.2V nominal, 100Ah LiFePO4 battery with 5.12kWh of stored energy for native 48V RV, marine house-power, off-grid solar and backup systems. Built-in heating, Bluetooth monitoring through the included battery gauge and native Victron CAN communication provide control and visibility across a parallel battery bank.

Features and applications

  • Internal heating warms the cells before charging; heated charging is supported from −30°C ambient. The cells must reach a safe temperature before charging resumes.

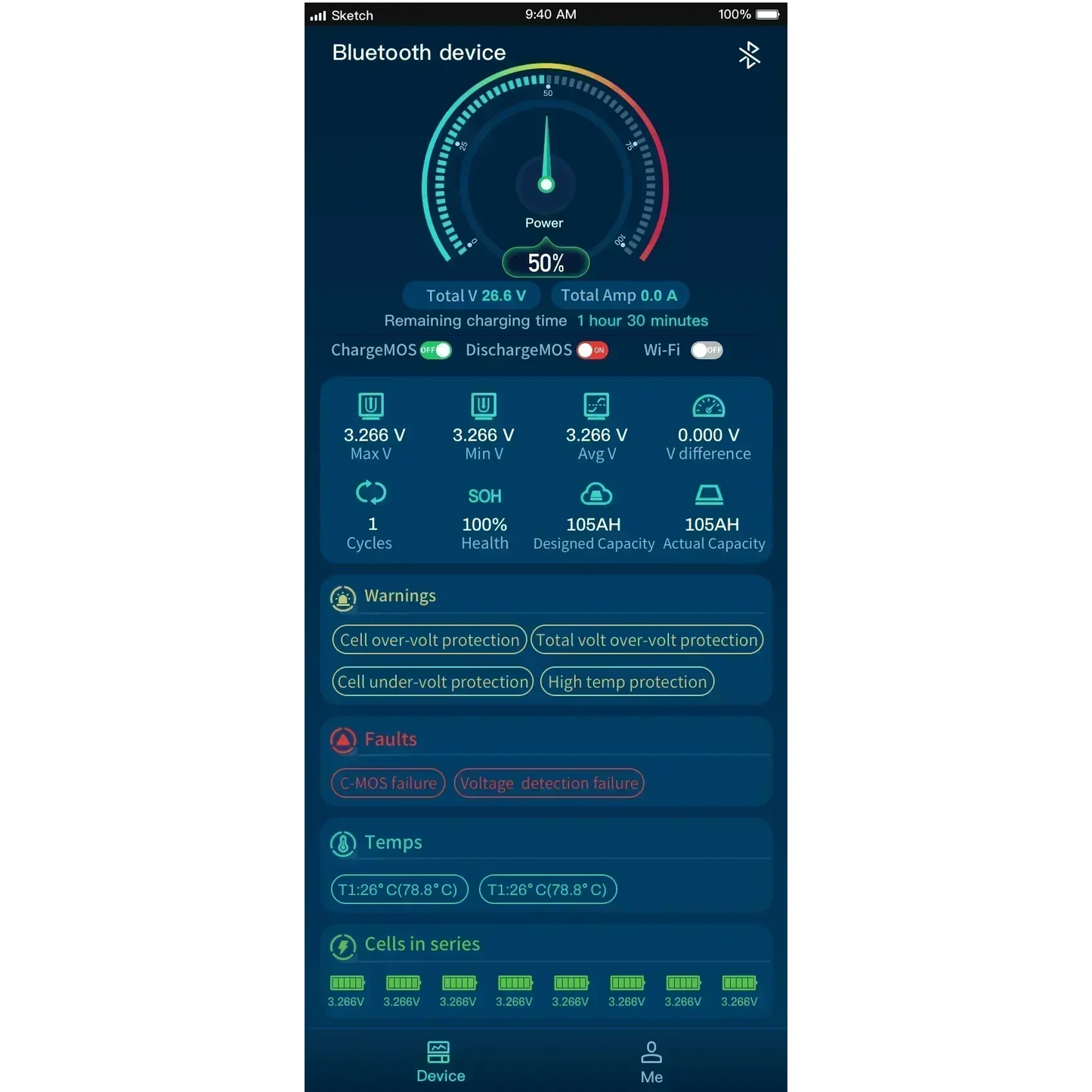

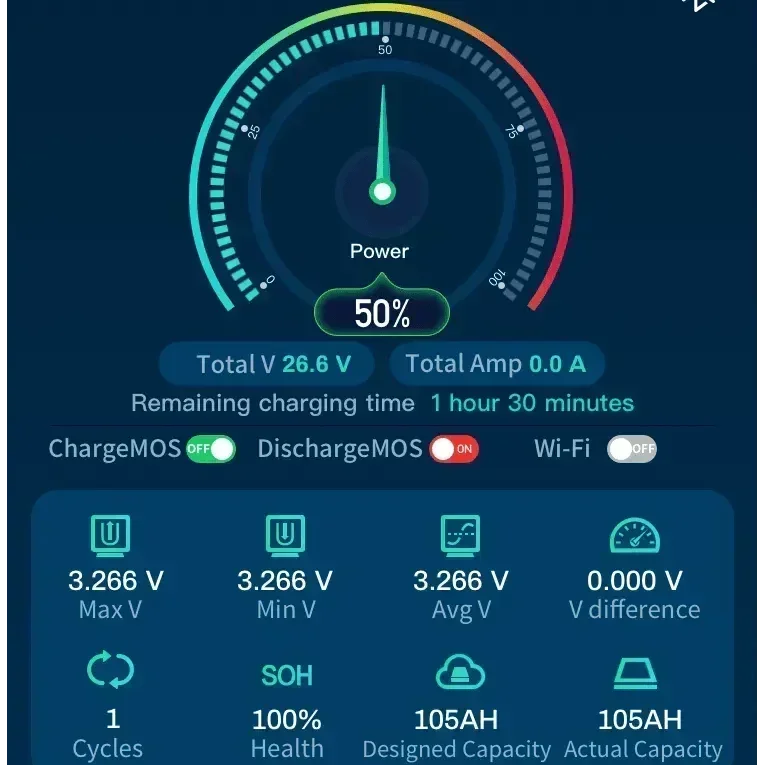

  • Monitor state of charge, cell voltages, temperatures and alerts in the Epoch Li-Ion app for iOS and Android. Bluetooth operates through the included gauge.
  • Native Victron CAN communicates battery status and charge limits to compatible GX devices; DVCC allows the battery to control charging.
  • A smart BMS provides overcharge, over-discharge, overcurrent, short-circuit and high/low-temperature protection. The internal fuse is UL 60691 certified.
  • The IP67 enclosure is dust-tight and rated for temporary immersion to 1m for 30 minutes; this does not cover pressure washing.
  • Maintenance-free operation and 3,500+ cycles to 70% remaining capacity at 25°C, 0.5C charge and 1C discharge.
  • An 11-year limited manufacturer warranty applies.
  • Expand capacity with up to 16 matched batteries in parallel. Series connection is not supported.

Grade A LiFePO4 cells provide a 10-year lifespan.

Safe installation and operation

This is a deep-cycle battery, not a cranking battery. Use LiFePO4-compatible charging and external DC overcurrent protection; the internal fuse does not replace system protection. Install matched batteries upright and follow the manual for CAN wiring, DIP switches and Victron DVCC setup.

Specifications
System voltage class 48V
Nominal voltage 51.2V
Capacity 100Ah at 0.5C and 25°C
Stored energy 5,120Wh (5.12kWh)
Cell configuration 16S1P, prismatic LiFePO4
Maximum continuous discharge 150A, limited to 20 minutes at 150A; not for cycling
Peak discharge 300A for 30 seconds
Continuous DC power at 51.2V 7,680W before inverter losses
Maximum continuous charge 100A
Short-duration charge 300A for 5 seconds
Maximum charge voltage 58.4V
Operating voltage range 40.0–58.4V
Charge temperature, cells 0°C to 55°C (32°F to 131°F)
Charge temperature with self-heating, ambient −30°C to 55°C (−22°F to 131°F)
Discharge temperature −20°C to 55°C (−4°F to 131°F)
Storage, up to one year 0°C to 35°C (32°F to 95°F)
Storage, up to one month −20°C to 45°C (−4°F to 113°F)
Parallel connections Up to 16; 1,600Ah total
Series connections Not supported
Dimensions, L × W × H 20.86 × 8.65 × 12.06in (529.8 × 219.8 × 306.3mm)
Weight 97lb (approximately 44kg)
Mounting Upright; optional 8D mounting bracket sold separately
Terminals M8; 8–12N·m torque
Protection rating IP67
Battery pack certification UL 1973
Cell certifications UL 1642, UL 9540A, IEC 62619:2022
Warranty 11-year limited manufacturer warranty

Charging settings

Bulk/absorption 56.8V
Absorption time At least 15 minutes per battery in the bank
Float 54.0V
Re-bulk 53.2V
Equalization Disabled
Temperature compensation Disabled, 0mV/°C
Data Sheet
Kit Contents
  • C48100A battery
  • Mountable battery gauge with Bluetooth
  • Gauge connection harness
  • Mountable ON/OFF switch
  • Battery and gauge manuals
