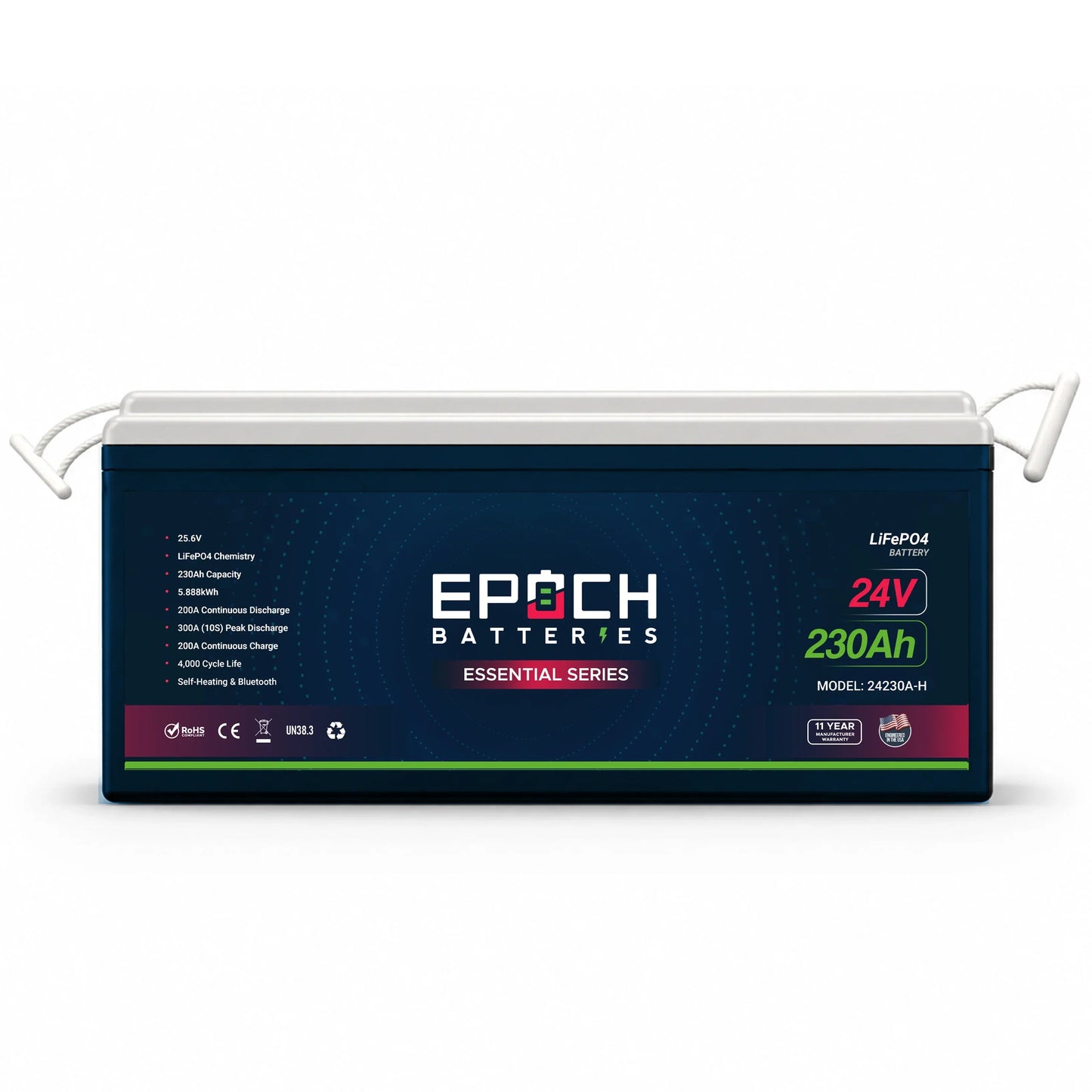

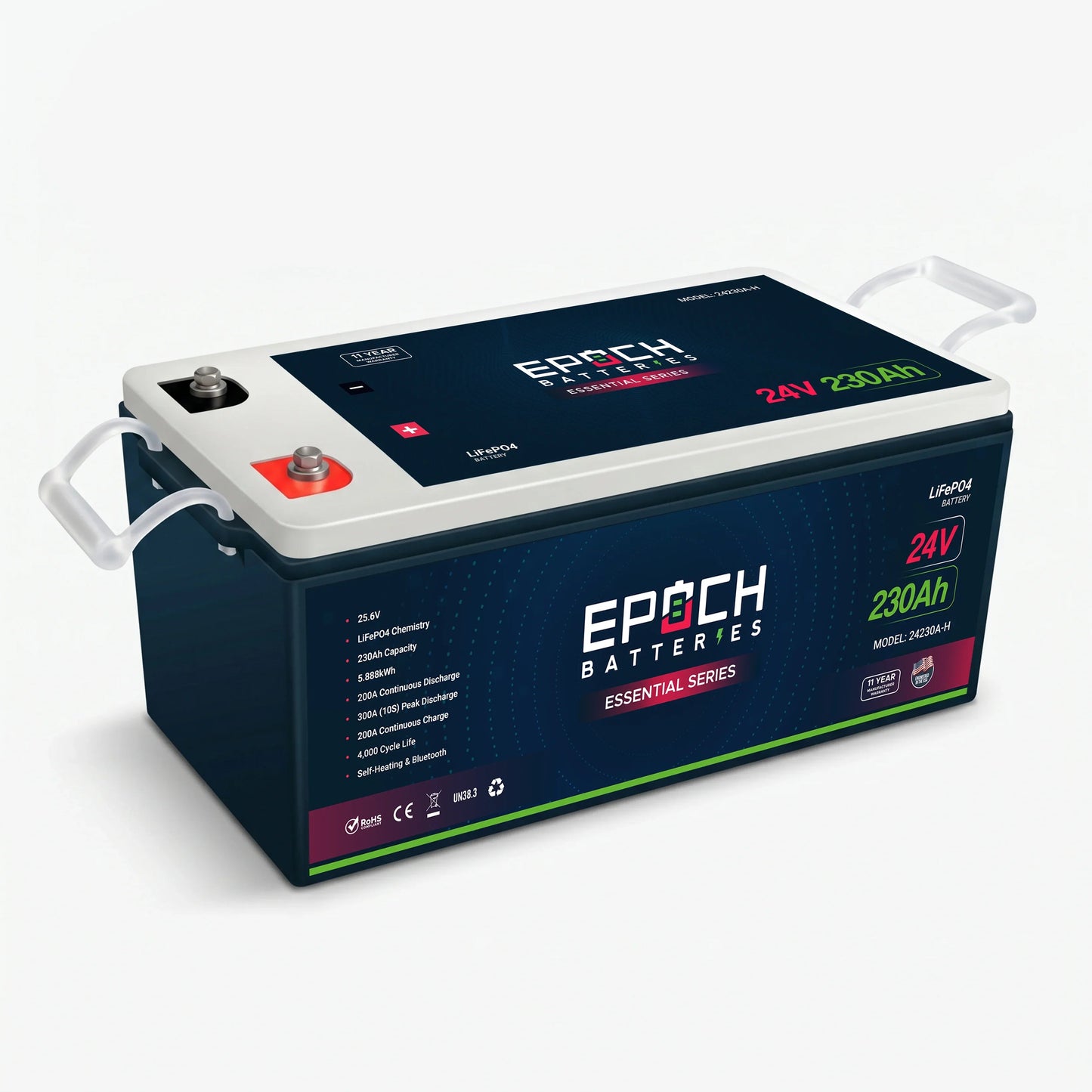

Epoch Batteries 24V 230Ah Essential Series LiFePO4 Battery (5.89kWh)
Epoch Batteries 24V 230Ah Essential Series LiFePO4 Battery (5.89kWh)
Epoch Batteries 24V 230Ah Essential Series LiFePO4 Battery (5.89kWh)
Epoch Batteries 24V 230Ah Essential Series LiFePO4 Battery (5.89kWh)

Epoch Batteries 24V 230Ah Essential Series LiFePO4 Battery (5.89kWh)

Regular price
Price: $1,599.00 USD
Regular price
List Price:
Sale price
Price: $1,599.00 USD
View Cart

Bulk Discount

Buy 3 or more items and receive 5% off this order! Discount will be automatically applied at checkout.

Commercial Pricing

Email us or call/text 415-877-4201 for your custom quote!

Shipping & Delivery

Shipping options and rates are calculated at checkout. Large, heavy, or freight items may ship separately or require confirmation before fulfillment.

Interest-Free Financing

Estimated Arrival: Between Aug 01 and Aug 12.

SAVE $10 on orders over $200 | Use Coupon Code: KEEP10

00 Days
00 Hours
00 Minutes
00 Seconds

Epoch Batteries 24V 230Ah Essential Series LiFePO4 Battery (5.89kWh)

  • 24V 230Ah Deep Cycle LiFePO4 (5.89kWh): Massive 5.89kWh usable energy capacity, engineered as a premium power solution for heavy-duty 24V marine house banks, large RVs, and off-grid solar systems.
  • High-Performance 230A Output: Delivers a massive 230A maximum continuous discharge—and a 500A peak (for up to 30 seconds)—to effortlessly run large inverters, A/C units, and high-draw equipment.
  • Heated for Sub-Zero Charging: Built-in internal self-heating technology ensures safe and efficient charging even in extreme freezing temperatures (down to -22°F).
  • Smart Bluetooth Monitoring: Connect seamlessly to the free Epoch iOS and Android apps to track real-time capacity, voltage, and overall battery health directly from your smartphone.
  • IP54 Rated: Dust-protected and splash-resistant
  • Advanced Smart BMS Protection: The integrated Battery Management System automatically guards your investment against over-charge, over-discharge, over-current, short circuits, and extreme high/low temperatures.
  • 4,000+ Cycle Life & Maintenance-Free: Exceptional drop-in longevity offering over a decade of reliable daily use with absolutely no watering, acid maintenance, or routine upkeep required.
  • 11-Year Manufacturer Warranty: Backed by an industry-leading warranty to guarantee long-term performance and ultimate peace of mind on the water or off the grid.

Technical Specifications & Dimensions

Clean technical table for the Epoch 24V 230Ah Essential Series battery.

Core specifications
Model / SKU 24230A-H
Series Essential Series
Battery type Heated Bluetooth deep-cycle LiFePO4 battery
System voltage 24V platform / 25.6V nominal
Nominal capacity 230Ah
Stored energy 5.89kWh / 5,890Wh
Cell configuration 8S1P prismatic LiFePO4
Max continuous discharge 200A
Max continuous charge current 100A recommended / 200A rating
Peak discharge 300A @ 10 seconds
Operating voltage range 20.0V – 29.2V
Bulk / absorption voltage 28.4V – 28.8V
Float voltage Disabled preferred, or 26.6V – 27.2V
Re-bulk voltage 26.4V
Temperature compensation 0mV/°C / none
Equalization Disabled
Charge temperature range -20°C to 55°C / -4°F to 131°F, with self-heating
Battery charge temperature range for charger setup 0°C to 55°C / 32°F to 131°F
Discharge temperature range -20°C to 60°C / -4°F to 140°F
Dimensions 20.55 in L × 9.45 in W × 8.60 in H
Weight 84 lb / 38.10 kg
Terminal size M8 female / verify supplied torque
Case material Battery-grade ABS/PC housing
Enclosure rating IP54 dust-protected and splash-resistant
Cycle life 4,000+ cycles
Warranty 11-year manufacturer warranty

Always verify charger programming, cable ampacity, fuse ratings, tray clearance, ventilation, and environmental limits before final installation.

IP54 rated marine and RV protection

Dust-protected and splash-resistant for protected compartments.

IP54 weather resistance does not mean waterproof. Install this battery in a protected marine compartment, RV battery bay, or mobile power enclosure where it is shielded from submersion, pressure washing, standing water, and direct terminal exposure.
