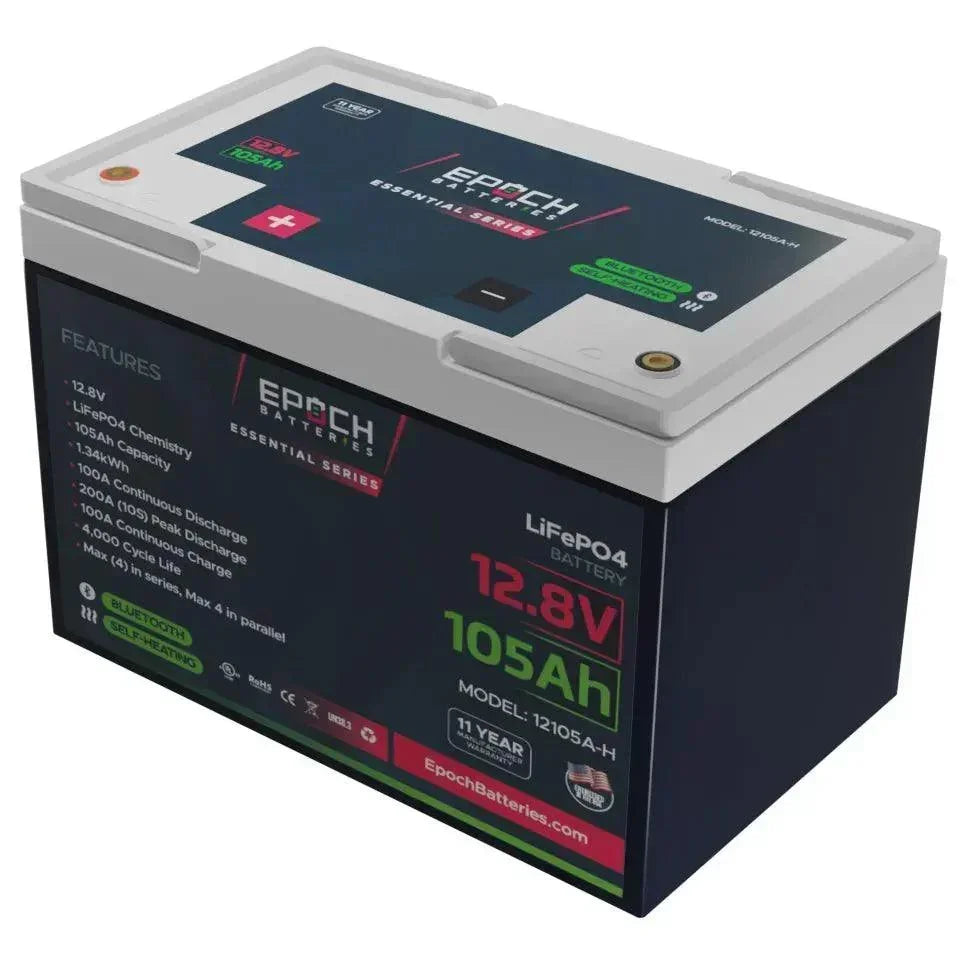

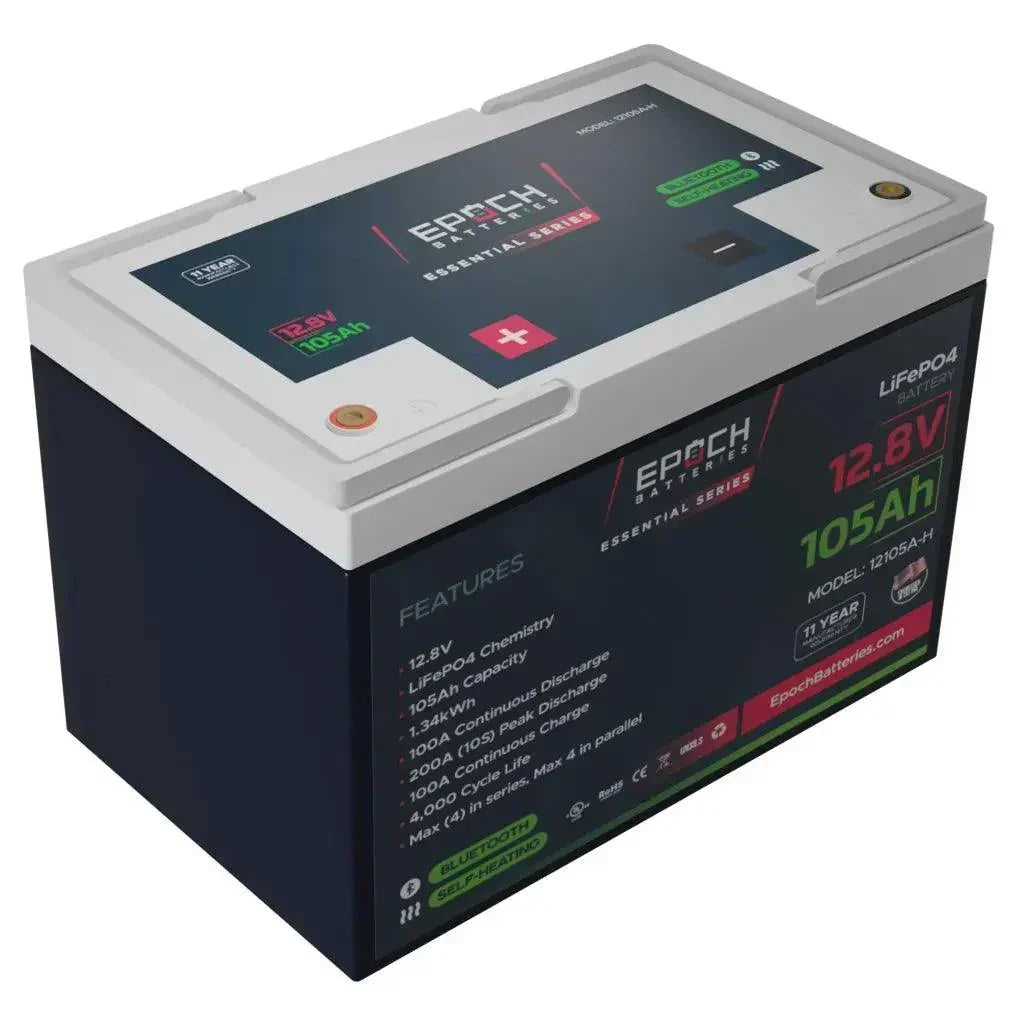

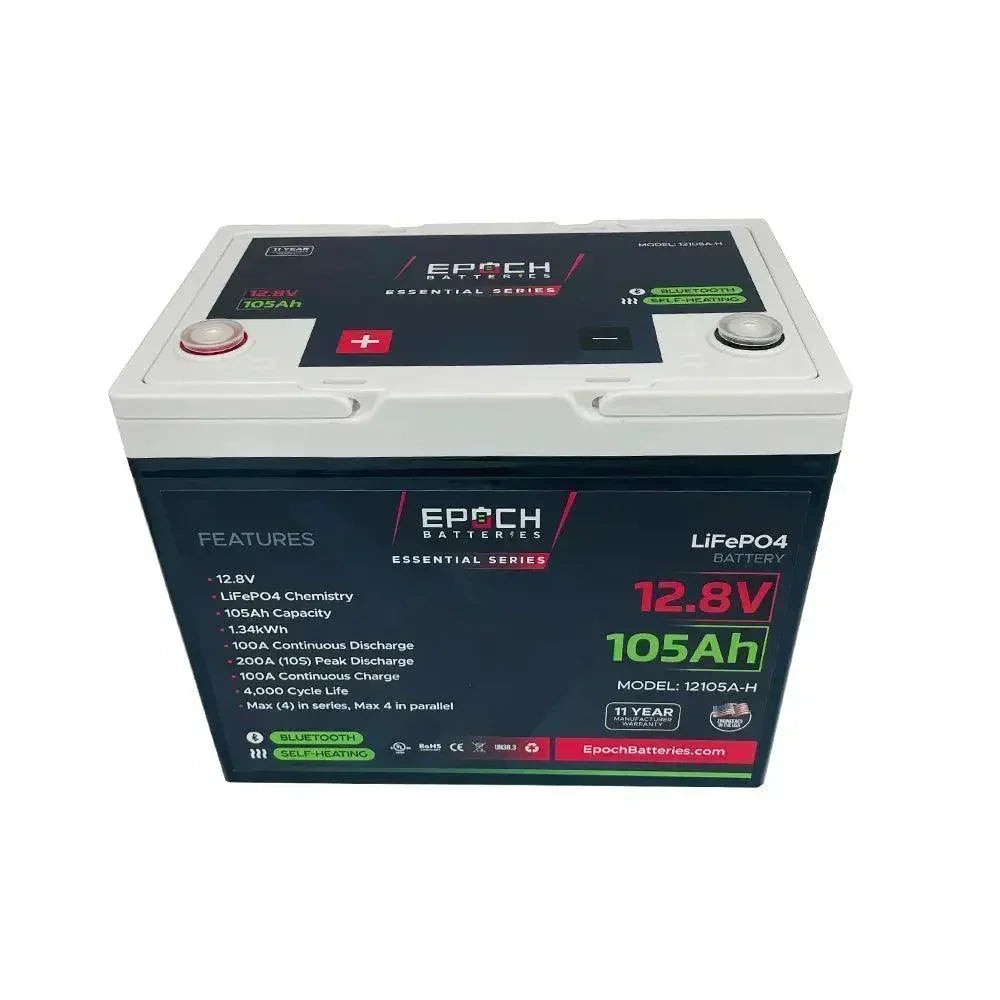

Epoch 12105A-H 12V 105Ah Group 24 Heated Bluetooth LiFePO4 Battery

The Epoch 12105A-H is a compact Group 24 deep-cycle LiFePO4 battery for compatible RV, marine house-power, solar, off-grid and auxiliary 12V systems. It provides 105Ah and 1,344Wh at 12.8V nominal, with internal heating, Bluetooth monitoring and a built-in battery management system.

Features and applications

• Internal heating uses incoming charging power to warm cold cells. Charging resumes at 5°C after a low-temperature cutoff; do not charge cold cells directly.
• The Epoch Li-Ion app for iOS and Android displays state of charge, voltage, current and temperature.
• The BMS protects against overcharge, over-discharge, overcurrent, short circuits and high/low temperatures.
• IP54 protection is dust-protected and splash-resistant. The battery is not waterproof or submersible.
• 4,000 cycles with at least 80% capacity remaining and an 11-year limited manufacturer warranty.
• Up to four matched batteries in series and four in parallel (4S4P).
• Group 24 fitment must be checked for tray size, terminal clearance, cable size, fusing and charger settings before replacing a lead-acid or AGM battery.

Safe installation and operation

This is a deep-cycle battery and is not rated for engine cranking. Use LiFePO4-compatible charging, external fusing and correctly sized conductors. Do not submerge or pressure-wash the battery. Match batteries before making series or parallel connections and follow the manual for installation and storage.

Specifications

Charging settings

Data Sheet

• 12105A-H user manual
• 12105A-H technical data sheet
