EG4 Hybrid Solar Mini-Split Kit | Energy Star Certified Air Conditioner Heat Pump AC/DC| 24000 BTU

The EG4 Hybrid Solar Mini-Split Kit is one of the most innovative ductless heat pump/air conditioners available; reduce your electric bill and keep your home the temperature you want with this energy-efficient appliance. Featuring the ability to plug directly into solar panels, this system accepts DC power from their PV array without the need for an intermediary device during the day or can draw AC power from the grid at night or during overcast days. Users of the EG4 Solar Mini-Split AC can save money when compared to conventional central air conditioning systems. Pair this unit with a small string of solar panels to immediately begin heating and cooling your property.

Its compact size, sleek design, and new Plug-n-Cool technology make this EG4 Mini-Split a Do-It-Yourself project. Plug-n-Cool allows the EG4 Mini-Split to be easily installed, cooling and heating quickly in virtually any living space or workplace.

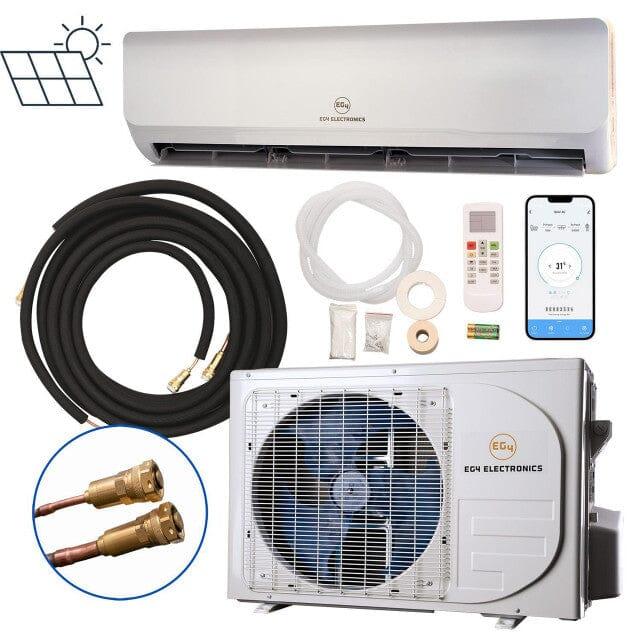

EG4 Hybrid Solar Mini-Split Kit Contents:

  • Indoor Head Unit
  • Outdoor Unit
  • Pre-Charged Lineset & Electrical Wire - 16.4Ft
  • LCD Remote Control
  • Installation Accessories

What's Included:

  • Indoor Head Unit

  • Outdoor Unit

  • Pre-Charged 16.4 ft Lineset & Electrical Wire

  • LCD Remote Control

  • Installation Accessories

User Manual / Specifications:

What's Included:

  • Indoor Head Unit

  • Outdoor Unit

  • Pre-vacuumed Lineset & Electrical Wire – 16.4ft

  • LCD Remote Control

  • Installation Accessories

Product Specifications:

KEY SPECIFICATIONS
Type Hybrid – AC/DC Driven
Coverage 1,350 square feet
SEER2 Rating 21
Capacities 6,100-25,200 BTU/h
Indoor Unit Sound (Turbo/5/4/3/2/1 Block) 50/48.5/45.5/43.5/41/39 dB(A)
Outdoor Unit Sound (Hi/Med/Lo) 58 dB(A)
HSPF2 9.6
COP 11.82 Btu/W
Recommended Solar Input 1600-2400W (90VDC-380VDC)
Operating Temperature (-10℃ to 58 ℃)
Operation Temperature Indoor (Cooling/Heating) 61-90/32-90 °F
Operation Temperature Outdoor (Cooling/Heating) 32-131/5-86 °F
Weight 77.07 KG / 169.93 LBS
Solar Aircon App Yes
ENERGY STAR® Yes
Warranty 5 Years Limited Warranty

Features

  • Hybrid - AC/DC Driven
  • Power from the grid or PV array - No inverter, battery, or charge controller necessary!
  • 100% energy saving in the daytime.
  • Daytime power comes directly from solar.
  • Plug and Play
  • MC4 Connectors attach directly to PV wire.
  • AC grid power limiter Limit AC power from 0-600W
  • AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance)
  • Wide operating temperature (-10℃ to 58 ℃)
  • Highly Efficient
  • Perfect for off-grid, solar, or energy-efficient projects!

RECOMMENDED SOLAR INPUT: 1600-2400W (90VDC-380VDC)
