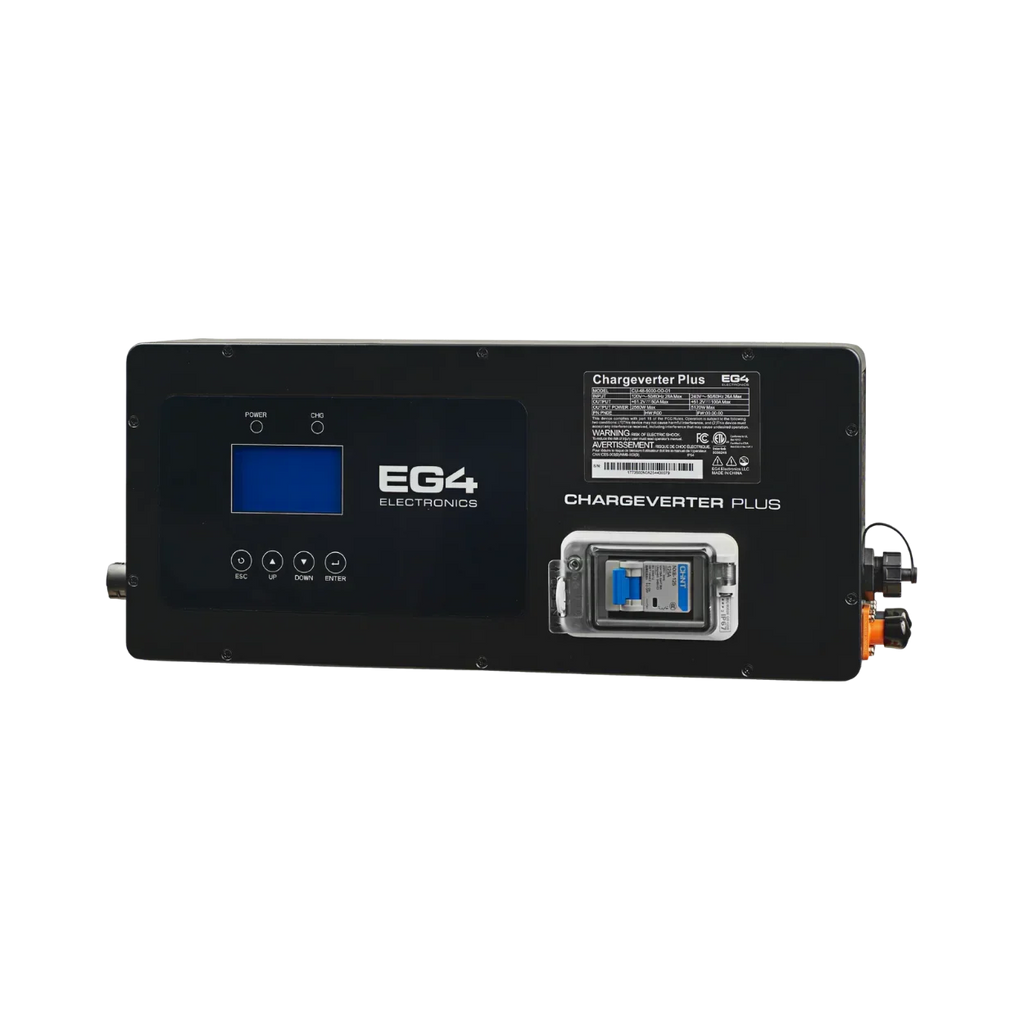

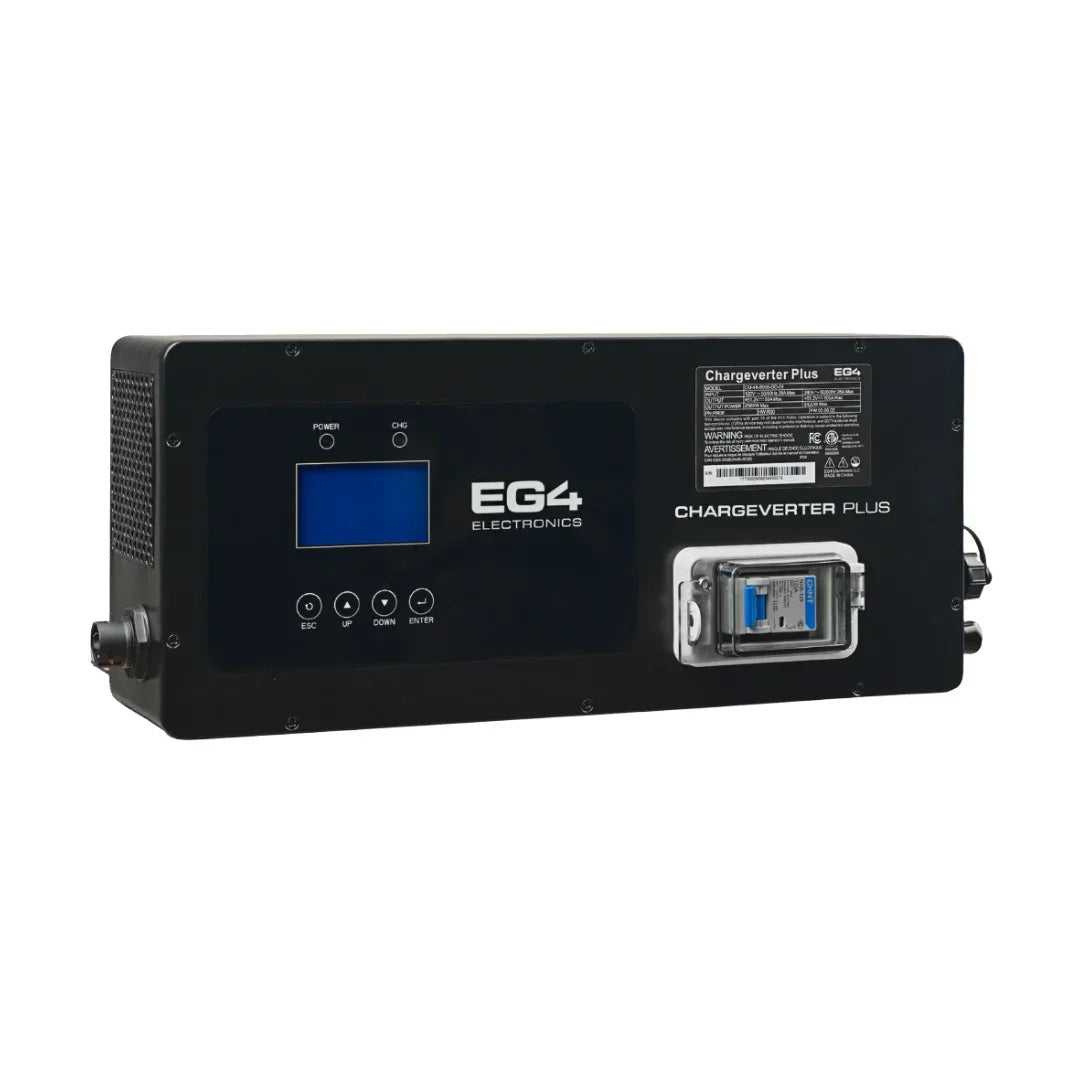

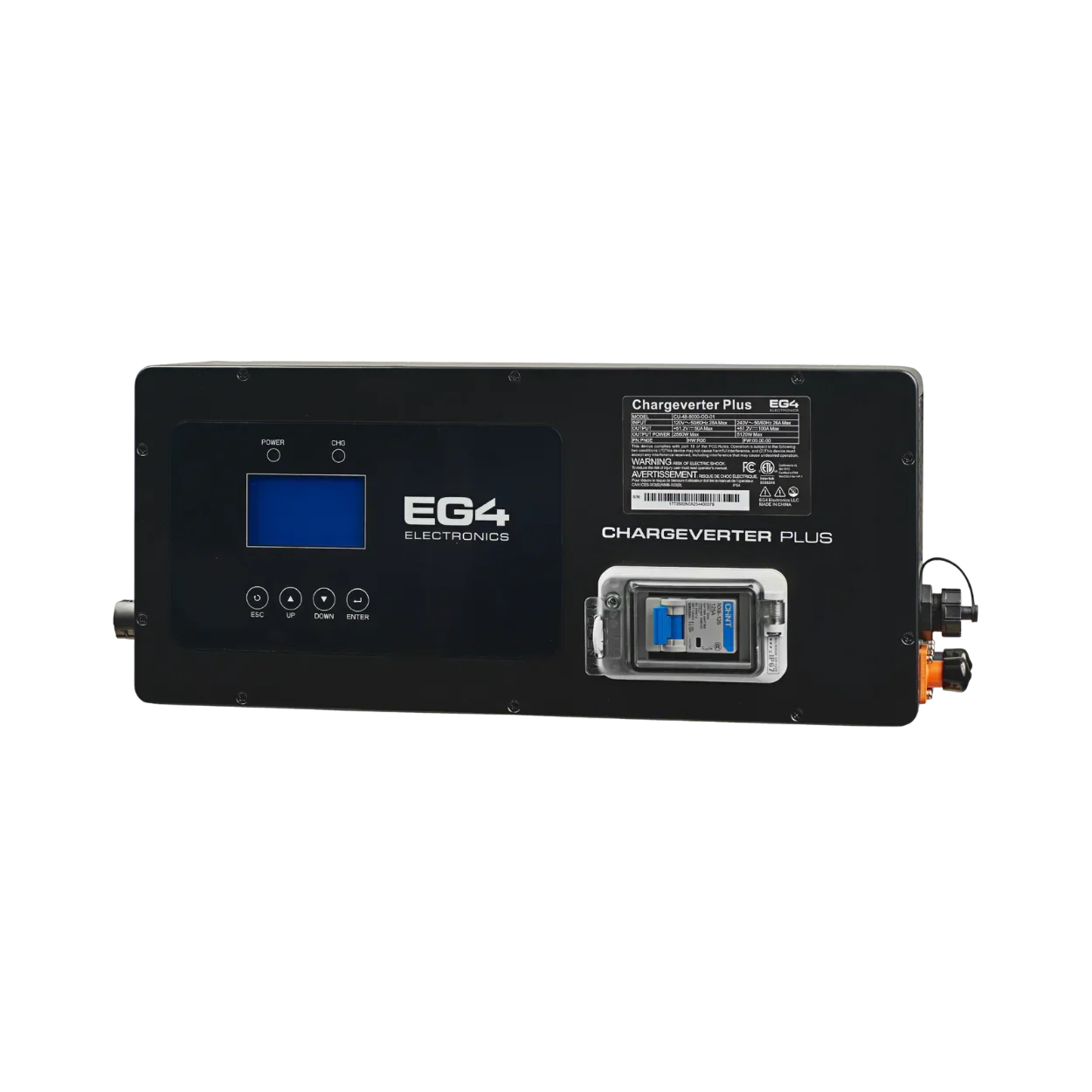

EG4 Chargeverter Plus AC-to-DC Battery Charger

The EG4 Chargeverter Plus, model CU-48-5000-OD-01, provides a generator or utility-powered charging path for nominal 48 V lithium battery banks in grid-connected and off-grid energy storage systems. It is designed for 15- or 16-cell-series lithium batteries and can help maintain stored energy when solar production is reduced by cloudy weather, storms or seasonal conditions.

Generator charging and control

  • Designed for generator use, including generators with power quality that can cause problems for other charging equipment.
  • Accepts 120, 208 or 240 VAC input. Maximum charging current depends on the input voltage: 50 A at 120 VAC, 80 A at 208 VAC, or 100 A at 240 VAC.
  • CAN/RS485 communications support state-of-charge-based charging with compatible batteries. Without battery communication, start and stop thresholds use battery voltage.
  • Dry contacts support automatic generator start and stop using the configured voltage or state-of-charge thresholds.
  • Generator preheat and cooling times are each programmable from 0 to 5 minutes; battery charging pauses during these intervals.

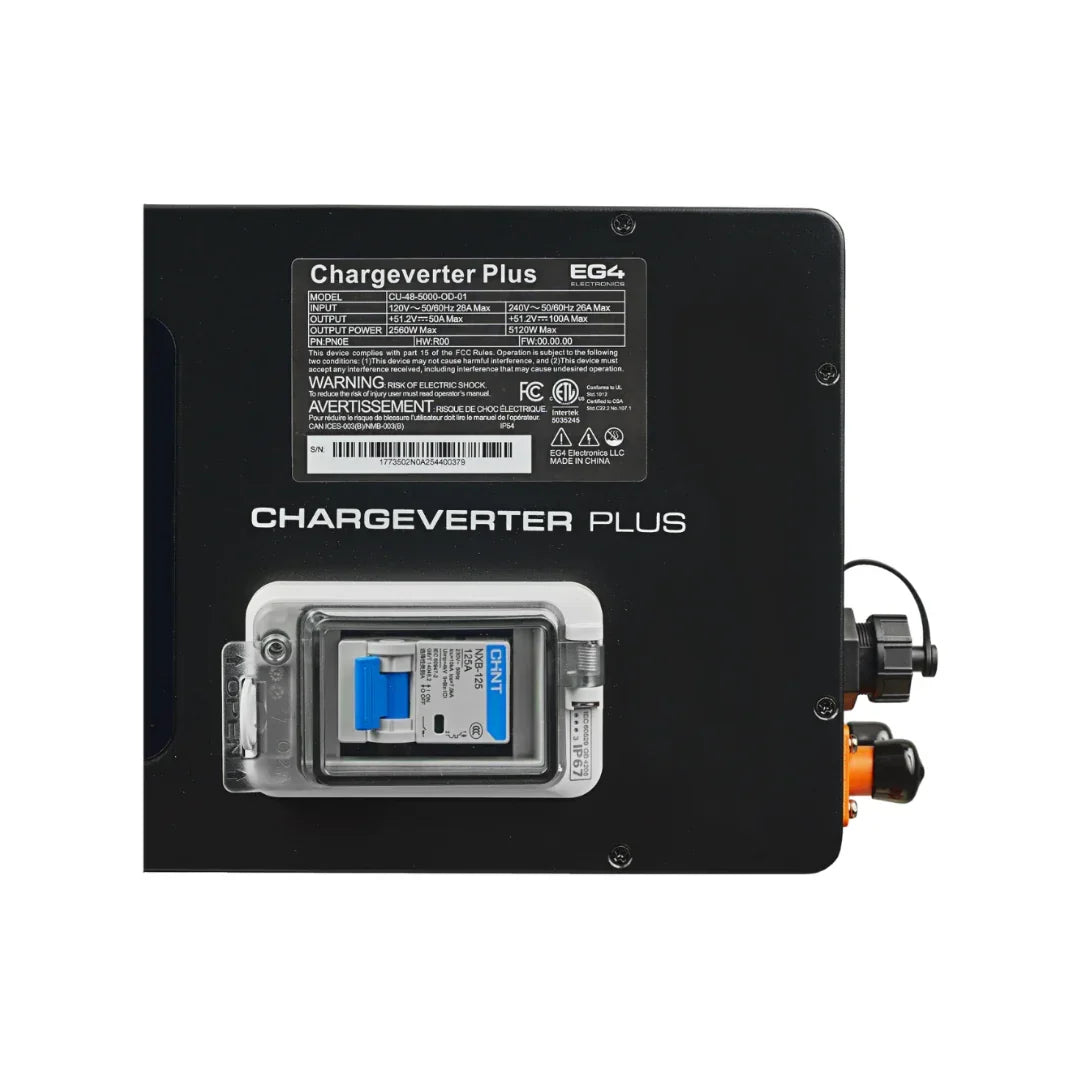

  • An integrated breaker provides a way to shut off the charger output.

Applications and installation

Use the Chargeverter Plus as a backup charging source for compatible residential, cabin, workshop, off-grid or solar-plus-storage battery systems. Its IP54 enclosure provides limited dust and splashing-water protection. Mount it on non-combustible material in a location protected from direct rain, standing water and direct sunlight, following the manufacturer installation instructions. The published three-year warranty applies only when the unit is used indoors.

Specifications
Model CU-48-5000-OD-01
Battery application Nominal 48 V; 15s or 16s lithium batteries
Adjustable charging current 0-100 A at 240 VAC; 0-80 A at 208 VAC; 0-50 A at 120 VAC
Adjustable charging voltage 40-60 VDC
Maximum output 5,120 W at 240 VAC; 2,560 W at 120 VAC
AC input voltage range 90-264 VAC
AC frequency 50-60 Hz
Maximum AC input current 26 A at 240 VAC; 28 A at 120 VAC
Idle consumption Approximately 4 W
Battery communication CAN/RS485, RJ45
Generator control contacts Normally open, common and normally closed
Generator preheat / cooling settings 0-5 minutes each
Operating temperature -40°F to 131°F (-40°C to 55°C)
Storage temperature -40°F to 158°F (-40°C to 70°C)
Humidity 5-95% relative humidity, non-condensing
Ingress protection IP54
Operating altitude 0-9,843 ft (0-3,000 m)
Dimensions, H × W × D 4.3 × 16.1 × 7.1 in (110 × 410 × 180 mm)
Net weight 13.67 lb (6.2 kg)
Manufacturer-listed certifications UL1012; FCC Class B
Warranty 3 years, only when used indoors
Data Sheet

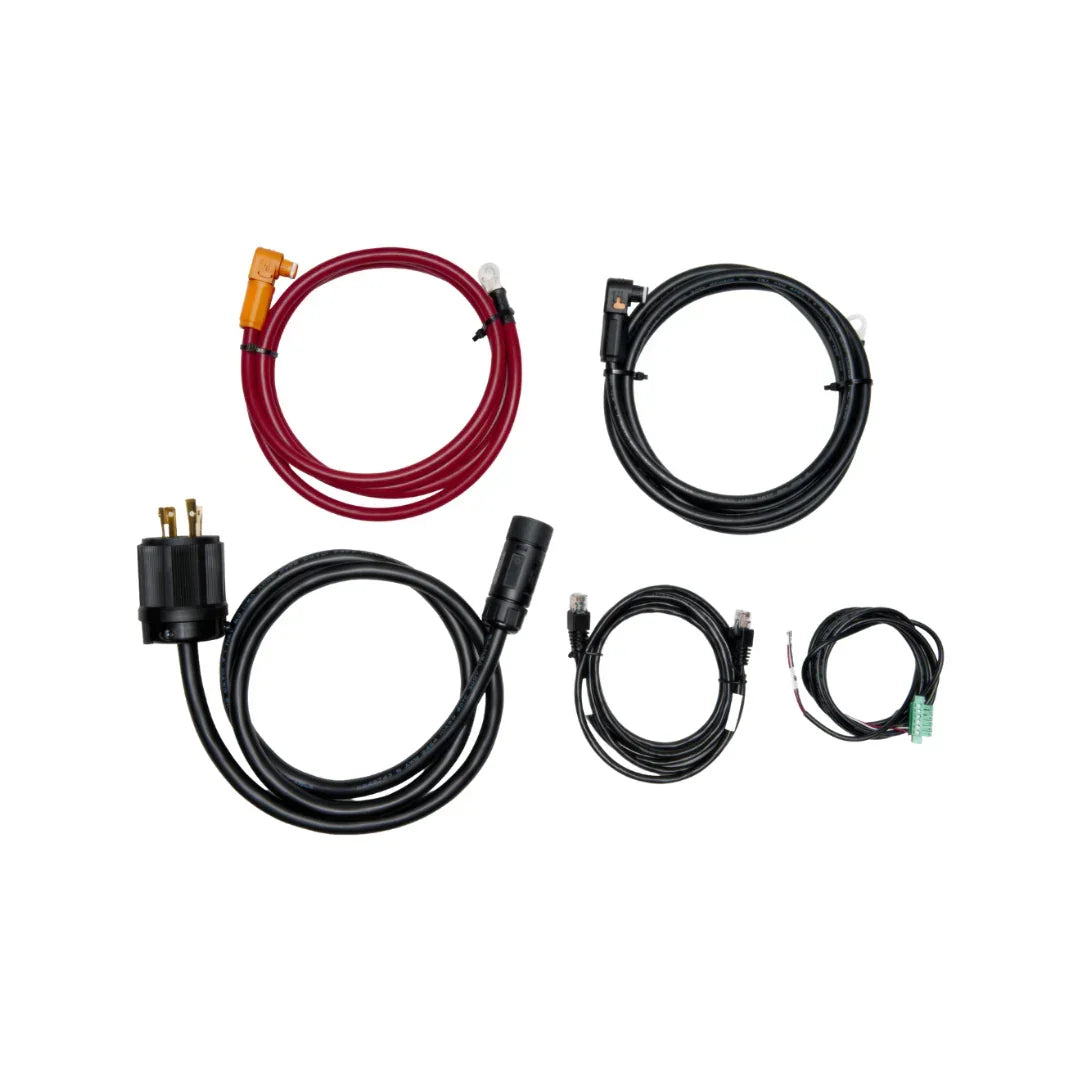

Kit Contents
  • EG4 Chargeverter Plus charger
  • Power supply cord
  • Dry contact cable
  • Positive red and negative black 4 AWG battery cables
  • CAN/RS485 communication cable, RJ45 to RJ45 with modified 1, 2, 4, 5 pinout
  • Two mounting brackets
  • Five M4 × 8 mm mounting screws
  • Five M4 × 40 mm bracket screws

The Chargeverter adapter cable and Chargeverter 120 V power cord are optional accessories and are not included in the standard packing list.
