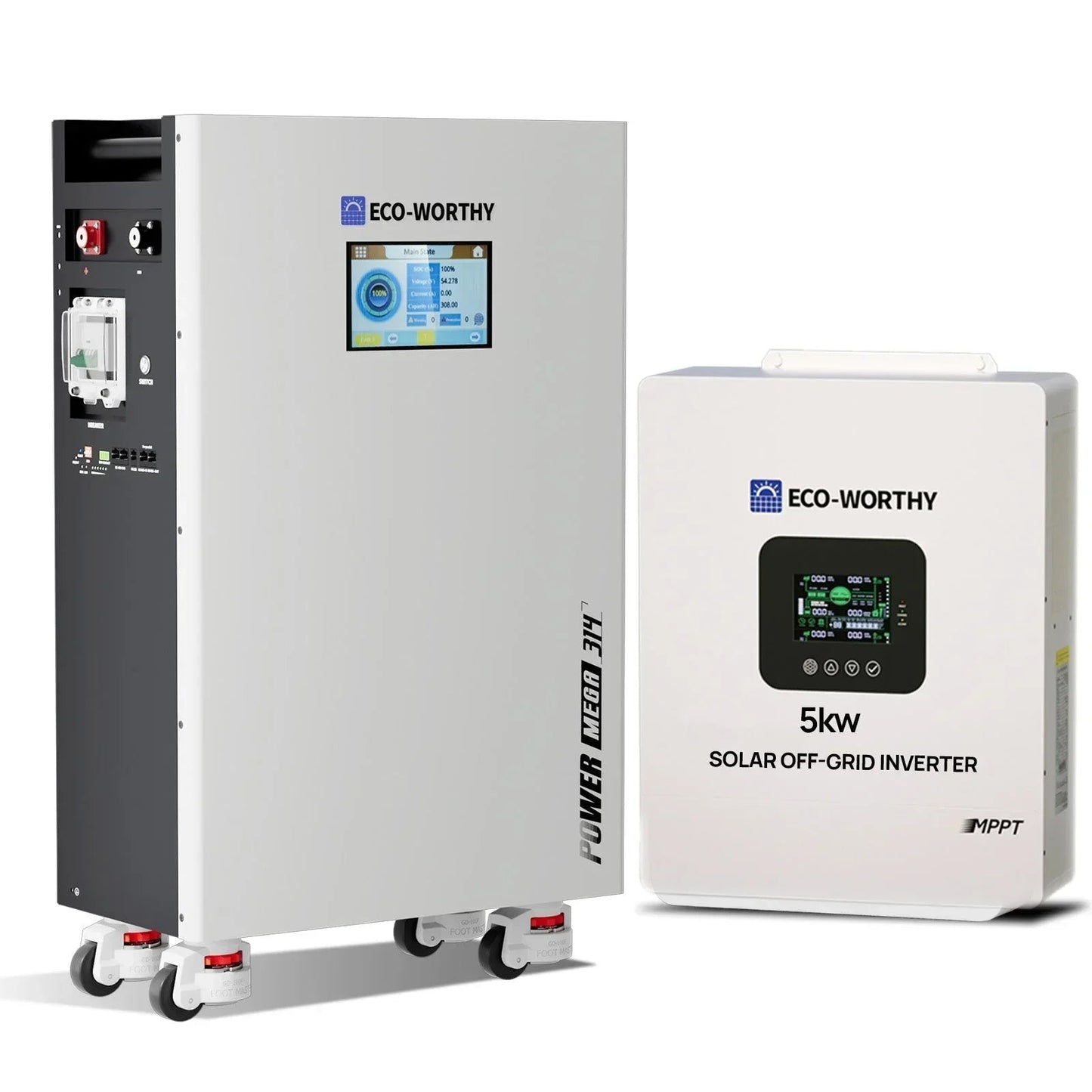

5kW 48V Off Grid All-in-one Inverter AC Input Rated Input Voltage: 110/120VAC Input Voltage Range: 90V-140VAC Frequency: 50Hz/60Hz(auto detect) Overload/Short Circuit Protection: Circuit breaker Efficiency: >95% AC Reverse Protection: Available Max Bypass Overload Current: 40A Inverter Output Voltage Waveform: Pure Sine Wave Rated Output Power: 5000W Rated Output Voltage: 120VAC Peak Power: 10000W Bypass Breaker: 63A Rated Battery Input Voltage: 48V Min Starting Voltage: 44V Power Saving Mode: Load ≤25W AC Charging Battery Type: Lead acid or lithium battery Max Charge Current: 60A Charge Voltage Range: 40-60VDC Overcharge Protection: Alarm and turn off charging after 1 minute PV Charging Max Input Power: 5500W PV Charging Current Range：0-80A(can be set) Max PV Open Circuit Voltage: 500VDC PV Operating Voltage Range: 120-450VDC MPPT Voltage Range: 120-450VDC Battery Voltage Range: 40-60VDC Charging Short Circuit Protection: Blown fuse Package included: 1 x 5kW 48V All-in-one Inverter1 x 51.2v 314ah battery1 x 51.2v 314ah battery manual1 x Battery to Inverter communication cable(1500mm)1 Group Of Wall-mounted Bracket1 Pair Of Battery to Busbar cable(2AWG 1500mm Black)
