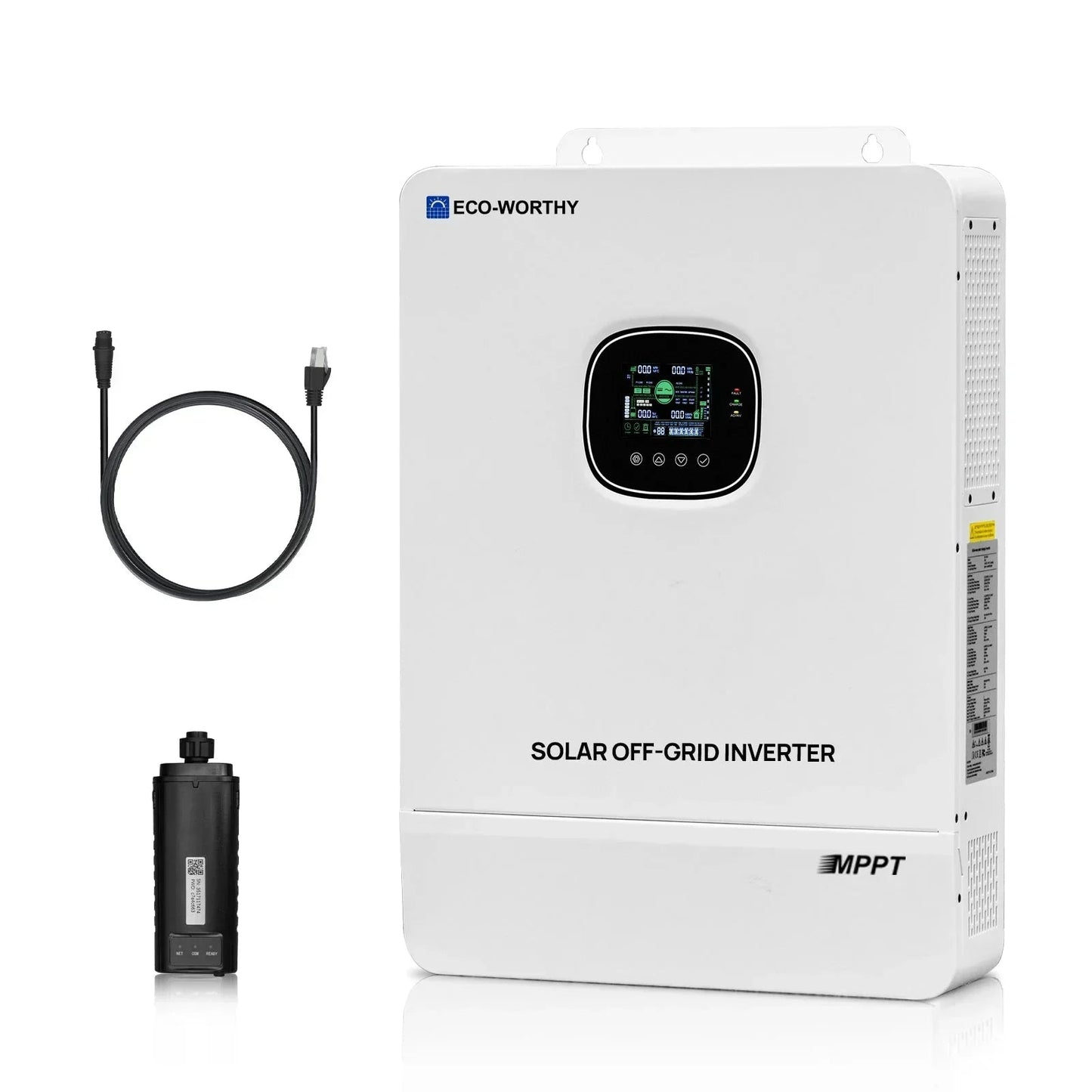

Eco-Worthy 10kW 48V All-in-One Inverter with 200A MPPT | 120/240V Split Phase | 20kW Peak Power

Upgrade your off-grid or hybrid solar system with the Eco-Worthy 10kW 48V All-in-One Inverter, engineered for high-output power, ultra-fast solar charging, and reliable whole-home performance. With 10,000W continuous output, 20,000W peak load handling, and a powerful 200A MPPT solar charger, this inverter is built to support full-home loads, workshops, small businesses, and energy-intensive off-grid applications.

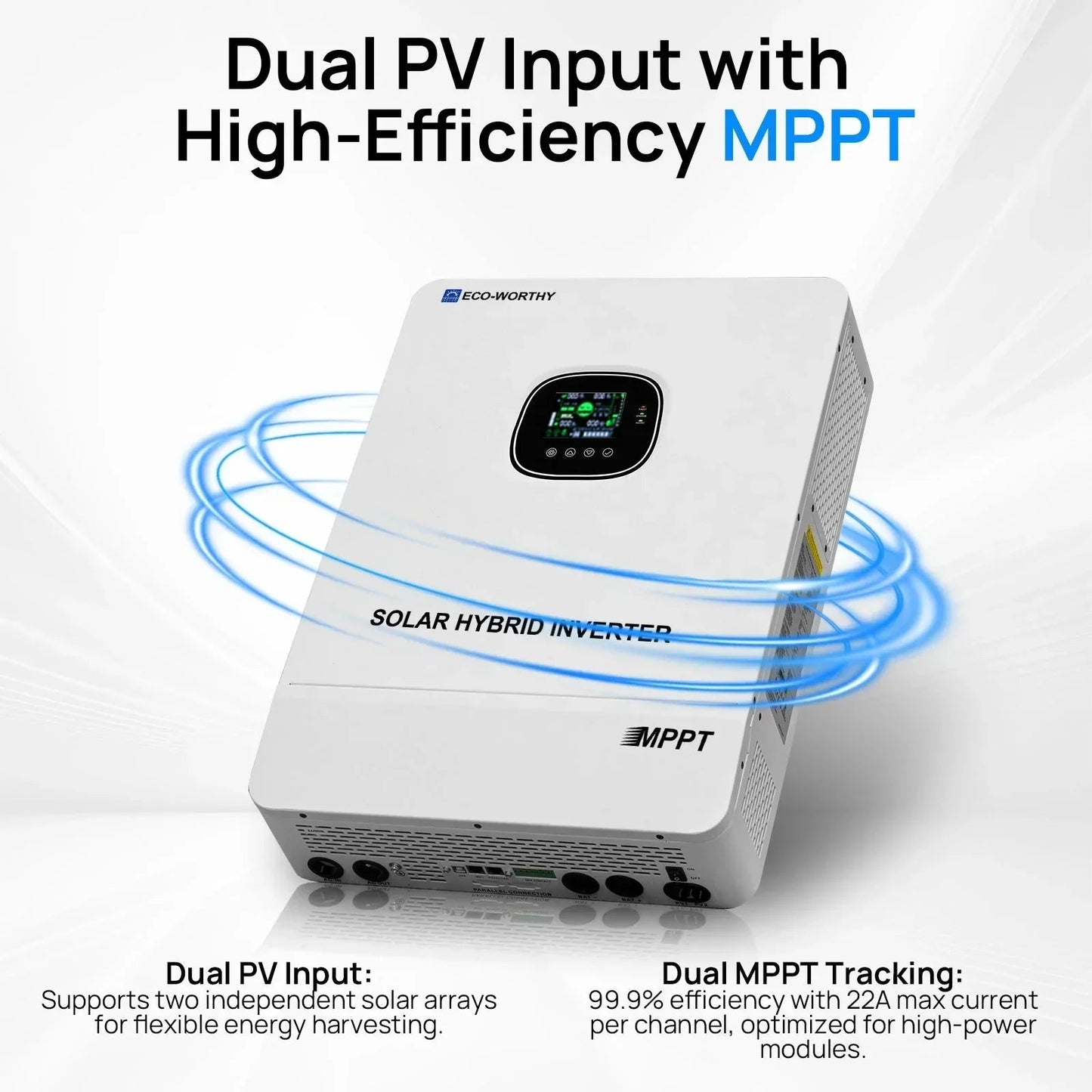

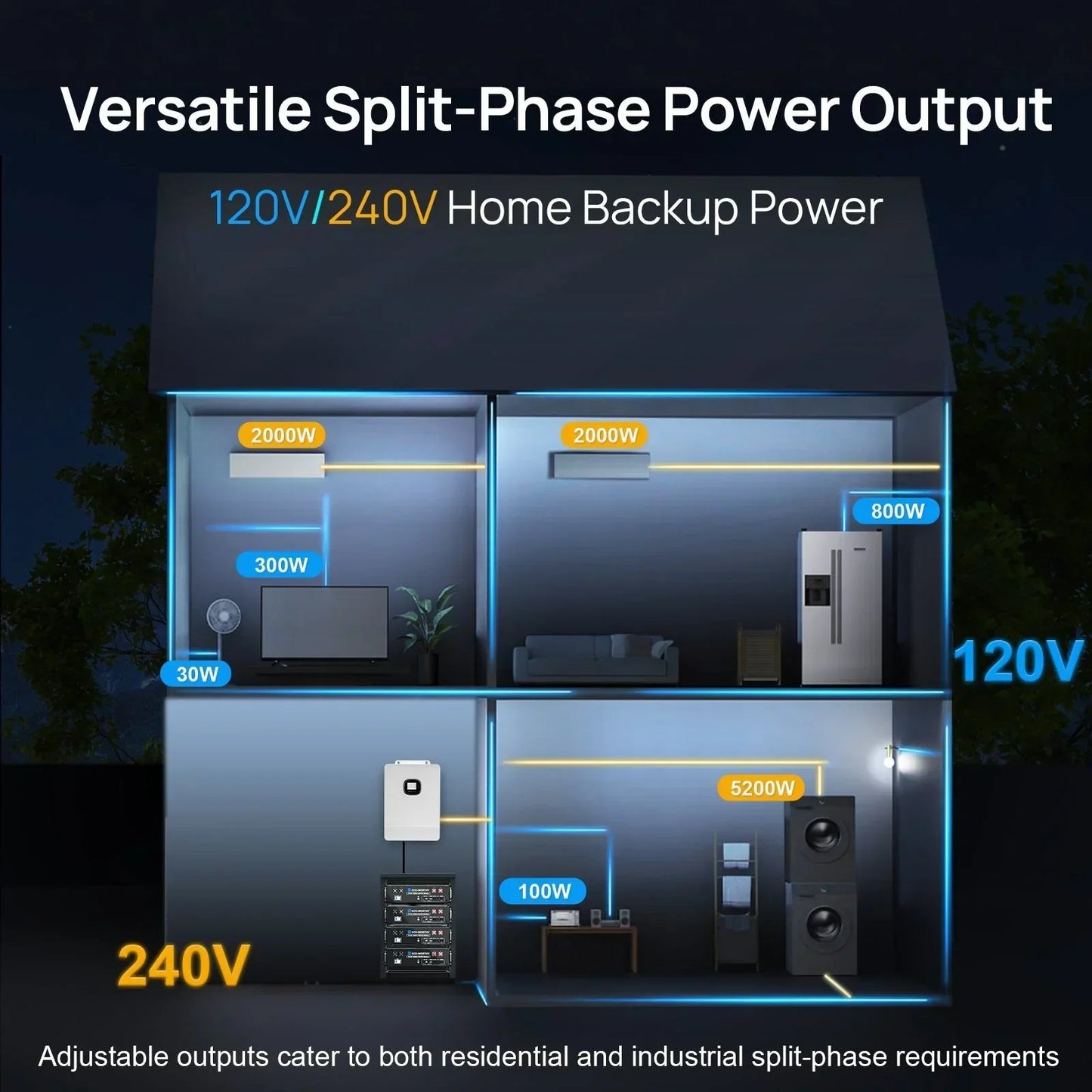

Providing true 120/240V split-phase output, the Eco-Worthy 10kW inverter can run everything from daily household appliances to heavy-duty 240V equipment such as well pumps, HVAC units, freezers, and power tools. The integrated 200A MPPT controller supports up to 11,000W of solar input, ensuring fast, stable, and efficient charging even during low-light conditions.

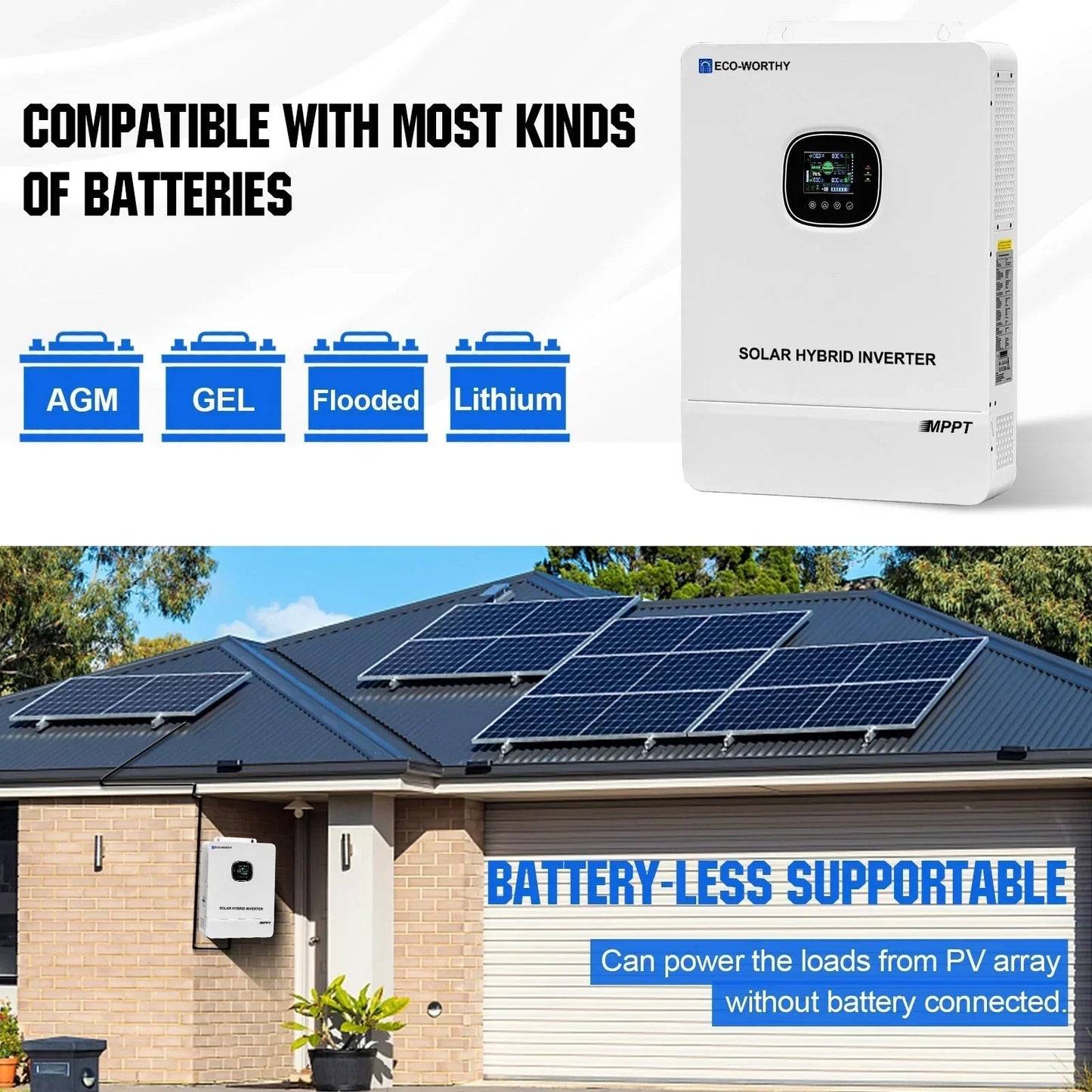

Compatible with 48V lithium and lead-acid battery banks, this unit also features intelligent AC/grid charging with automatic 50/60Hz detection—making it ideal for both off-grid and hybrid backup power systems.

Key Features & Specifications

Solar Charging Mode (MPPT)
PV Charging Current: 0–200A
MPPT Voltage Range: 125–425VDC
Maximum Solar Input Power: 11,000W
Battery Voltage Range: 40–60VDC

Inverter Mode
Rated Output Power: 10,000W
Peak Power: 20,000W
Output Voltage: 120/240V AC (Split Phase)
Frequency: 50Hz/60Hz
Output Waveform: Pure Sine Wave
Rated Battery Input Voltage: 48V

AC / Grid Charging Mode
Rated Input Voltage: 90–140VAC
Frequency: 50Hz/60Hz (Auto Detect)

Perfect For

Whole-home off-grid systems
High-demand solar setups
Hybrid/backup power systems
Shops, farms, and commercial loads
240V well pumps, HVAC units, and power tools
