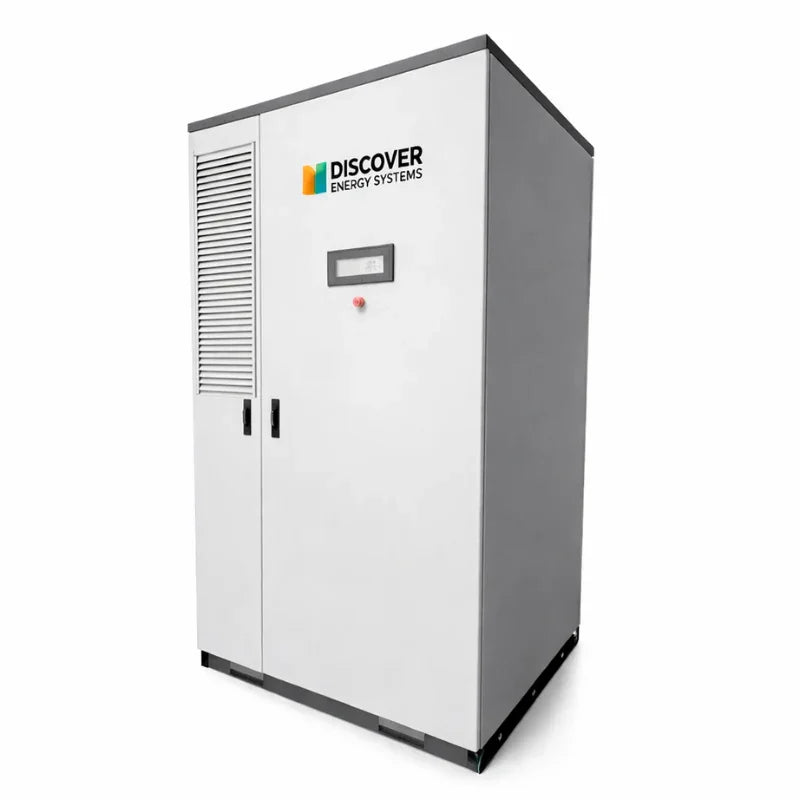

Discover Energy HV Energy Storage System, 209kWh, NEMA 3R, LiFePO4 AES 210HV
Discover Energy HV Energy Storage System, 209kWh, NEMA 3R, LiFePO4 AES 210HV

Discover Energy HV Energy Storage System, 209kWh, NEMA 3R, LiFePO4 AES 210HV

Price: $65,000.00 USD
List Price:
Price: $65,000.00 USD
View Cart

Bulk Discount

Buy 3 or more items and receive 5% off this order! Discount will be automatically applied at checkout.

Commercial Pricing

Email us or call/text 415-877-4201 for your custom quote!

Shipping & Delivery

Shipping options and rates are calculated at checkout. Large, heavy, or freight items may ship separately or require confirmation before fulfillment.

Interest-Free Financing

Checkout and pay with Affirm, PayPal Pay in 4, Sezzle or Shop Pay Installments.

Estimated Arrival: Between Aug 01 and Aug 12.

SAVE $10 on orders over $200 | Use Coupon Code: KEEP10

00 Days
00 Hours
00 Minutes
00 Seconds

Discover Energy AES 210HV Energy Storage System

The Discover Energy AES 210HV is a high-voltage, liquid-cooled commercial energy storage system engineered for community, commercial, and industrial (C&I) applications. Delivering 209kWh of usable LiFePO4 energy in a NEMA 3R outdoor-rated enclosure, this scalable system integrates advanced BMS control, active safety systems, and seamless hybrid inverter compatibility. Designed for rapid deployment and long-term reliability, the AES 210HV supports projects from 200kWh up to 4MWh.

Discover Energy AES 210HV Features

209kWh Usable Energy – High-density LiFePO4 storage optimized for commercial-scale performance.
High-Voltage Architecture (600V Nominal) – Improved efficiency and reduced current losses for C&L hybrid inverter systems.
Liquid Cooling & Heating – Integrated thermal management ensures stable operation in extreme climates.
Advanced Battery Management System – Active balancing, real-time monitoring, and multi-layer protection.
Scalable from 200kWh to 4MWh – Expandable architecture for growing energy demands.
Outdoor-Rated NEMA 3R Enclosure – Weather-resistant cabinet built for exterior installation.
Integrated Safety Systems – Smoke detection, heat detection, fire suppression, ventilation, and emergency stop.

Discover Energy AES 210HV Applications

  • Multifamily Dwellings – Reduce peak demand and provide backup power.

  • EV Charging Stations – Stabilize grid loads and support high-demand charging.

  • Retail & Grocery – Prevent downtime and protect refrigeration systems.

  • Banks, Hospitals & Schools – Ensure uninterrupted critical operations.

  • Industrial Sites – Offset peak demand and enhance energy resilience.

What’s Included?

  • Discover Energy HV Energy Storage System, 209kWh, NEMA 3R, LiFePO4

  • User Manual

Warranty

  • 10-Year Limited Warranty

Discover Energy AES 210HV Specifications

Battery Specifications

Parameter Specification
Part Number SLL03C2-D1P52S1R4-A01
Battery Chemistry Lithium Iron Phosphate (LiFePO₄)
Nominal Energy Capacity (Usable) 212kWh (209kWh)
System Nominal Voltage 665.6V
Operating Voltage Range 603.2V – 738.4V
Cell Capacity (Usable) 320Ah (314Ah)
Max. Continuous Current 157A (C/2)
Continuous Power 104.5kW (25°C, 665.6VDC, C/2)
DC Connections Four (+) | Four (−) Terminals (Each Fused)
Inverter Compatibility Hybrid Inverter Technology (CANbus)
Communications LYNK II Gateway (Inverter Closed-Loop | Cloud Monitoring)

Mechanical Specifications

Parameter Specification
Product Dimensions (WxDxH) 1300x1300x2374 mm (51.2x51.2x93.4 in)
Net Weight 2,490kg (5,490lb)
Material & Finish Corrosion Resistant Painted Steel
Thermal Management Integrated Liquid Cooling/Heating System
Auxiliary AC Input 240VAC
Operating Conditions 30°C to 55°C (22°F to 130°F)
Ingress Rating Outdoor Cabinet IP55 (NEMA 3R)
Noise Level @ 1m 75 dBA @ 30°C

Warranty and Certification

Parameter Specification
Base Performance Warranty 10 years (1658.4 MWh Total Energy Throughput)
System Warranty Extension 10 years, 15 years, 20 years
Testing and Certifications UN38.3, UL1973, UL9540A, UL9540 DC ESS

Frequently Asked Questions

What type of battery chemistry does the AES 210HV use?

It uses Lithium Iron Phosphate (LiFePO4), known for long cycle life, thermal stability, and commercial-grade safety.

Is the system outdoor rated?

Yes. The enclosure is NEMA 3R/IP55 rated for outdoor installation.

Can the system scale for larger projects?

Yes. Systems can be configured from 200kWh up to 4MWh for commercial-scale deployments.

Does it include fire suppression?

Yes. The system integrates heat detection, smoke detection, fire suppression, and ventilation systems.

What inverters are compatible?

The AES 210HV integrates with leading hybrid inverters using CANbus communication.
