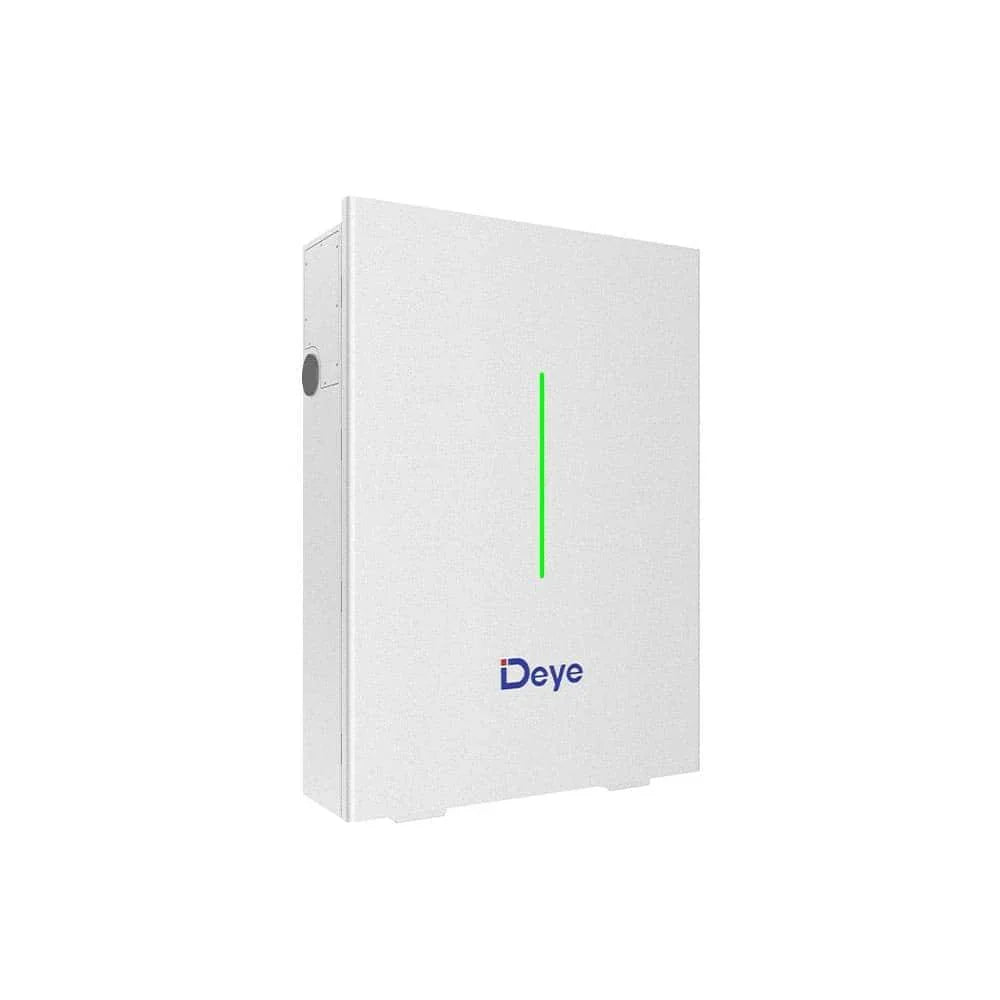

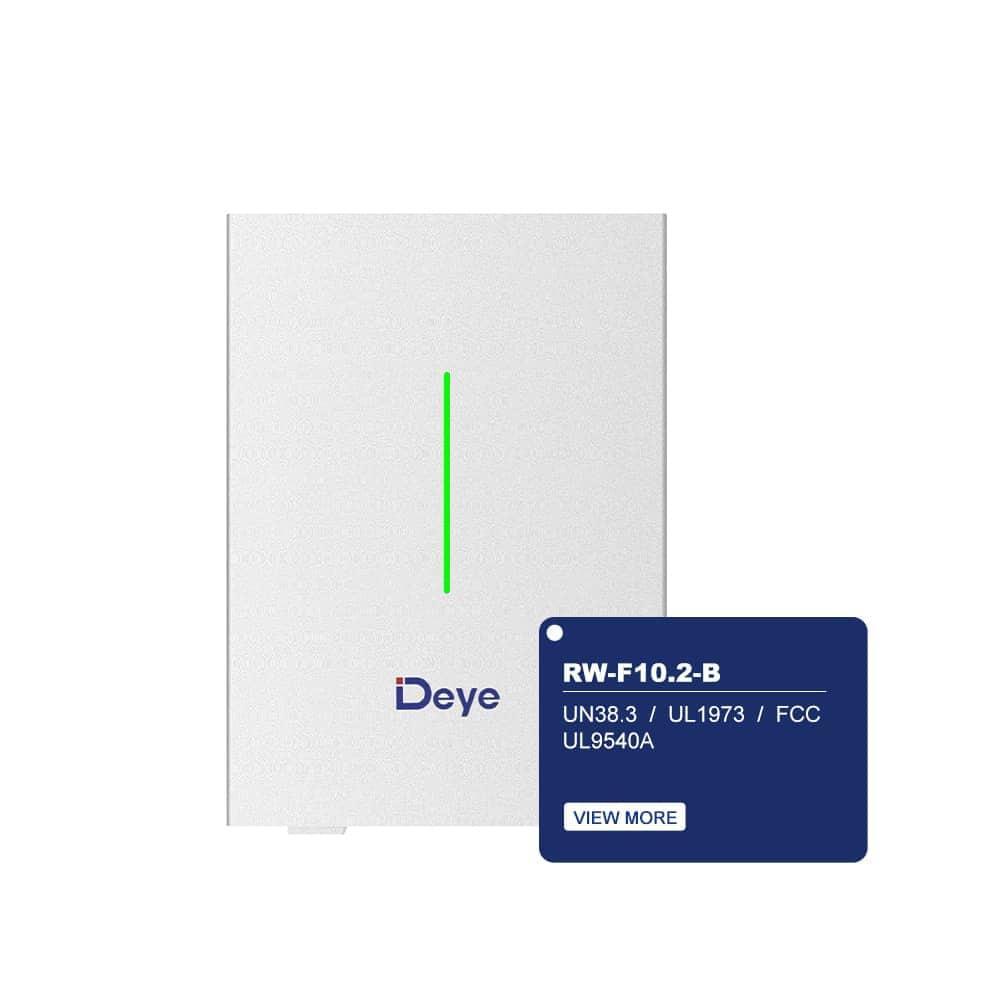

The RW-F10.2-B is a state-of-the-art home battery storage system engineered with lithium iron phosphate (LiFePO4) technology to deliver exceptional performance, safety, and reliability for residential and commercial energy storage applications. This intelligent wall mounted lithium battery represents the pinnacle of batteries for home energy storage, offering 10.24 kWh capacity to power your home efficiently and sustainably.

Performance & Capacity:

• 51.2V nominal voltage with 200Ah capacity
• 10.24kWh nominal energy and 9.2kWh usable energy
• Supports 1C charging and 1.25C discharging
• Impressive 6000+ cycle life at 90% depth of discharge

Safety & Protection:

• Cobalt-free LFP chemistry for enhanced safety and longevity
• Built-in intelligent Battery Management System (BMS)
• IP65 rated enclosure
• Operating temperature range of -20°C to 55°C

Scalability & Installation:

• Modular design supporting up to 32 units in parallel
• Maximum system capacity of 327kWh
• Flexible mounting options: wall-mounted or floor-standing
• Dimensions: 600 x 830 x 200mm

Smart Features:

• Auto-networking battery modules
• Remote monitoring and upgrade capability
• Seamless integration with Deye inverters
• CAN2.0 and RS485 communication ports

Environmental & Warranty:

• Eco-friendly, non-toxic materials
• Natural cooling design
• 10-year standard warranty
• Certified to UN38.3, FCC, UL1973, and UL9540A standards

The RW-F10.2-B home battery storage system combines advanced technology with practical design to deliver a premium energy storage solution that seamlessly integrates with your photovoltaic battery storage setup.
